Description
S-9 Surgical Handpiece (1:1, angled) The S-9 surgical handpiece is a versatile, angled 1:1 instrument designed for routine oral surgical procedures requiring precision, durability, and ergonomic control. Built for surgical burs and cutters with Ø 2.35 mm shanks (including Stryker system), the S-9 supports accurate bone cutting and modelling across a wide range of indications.
Manufactured to W&H standards, the S-9 is fully dismantlable for thorough cleaning and sterilization and features a robust stainless-steel construction with a scratch-resistant coating for long service life.
Clinical indications
Apical resection
Osteotomy
Apical trepanning
Bone modelling
Key features
1:1 gear ratio for predictable speed transfer
Angled head design for improved access
Accepts surgical burs and cutters Ø 2.35 mm (also Stryker system)
Dismantlable construction for thorough cleaning
External spray for effective cooling
Thermo washer-disinfectable and sterilizable
High-quality stainless steel with scratch-resistant coating
Ergonomic design to support fatigue-free working
Variant options

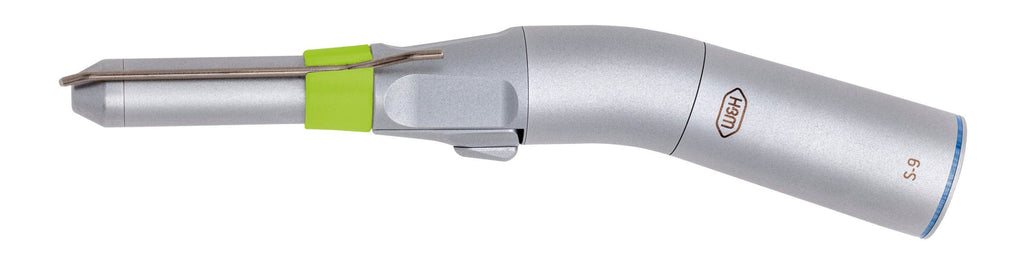

S-9 (Non-LED)
1:1, angled, dismantlable
For Ø 2.35 mm surgical burs and cutters
Maximum bur length: 45 mm
External spray
Maximum drive speed: 50,000 rpm
ISO 3964 (DIN 13940) coupling

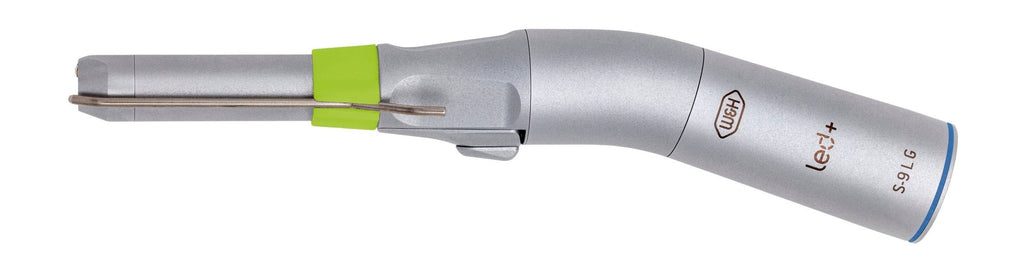

S-9 LG (mini LED+)
1:1, angled, dismantlable
Integrated mini LED+ with self-contained generator
LED illumination operates independently of the motor
For Ø 2.35 mm surgical burs and cutters
Maximum bur length: approx. 45 mm
External spray
Maximum drive speed: 40,000 rpm
ISO 3964 (DIN 13940) coupling
mini LED+ illumination (S-9 LG)
The S-9 LG features W&H’s mini LED+ system, producing bright, daylight-quality illumination directly at the treatment site. An integral generator supplies power to the LED within the handpiece, delivering consistent lighting without reliance on the motor. This supports improved visibility, accurate diagnosis, and precise surgical execution.
Technical summary
Gear ratio: 1:1
Head design: angled
Bur system: Ø 2.35 mm (also Stryker system)
Cooling: external spray
Coupling system: ISO 3964 (DIN 13940)
Sterilization: thermo washer-disinfectable and sterilizable
