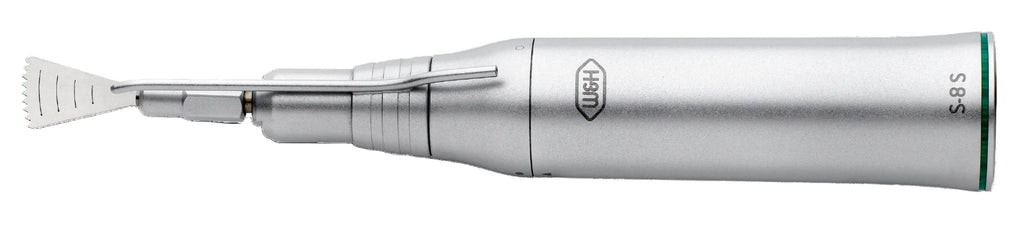

W&H S-8S Sagittal Saw Handpiece

The S-8S is a sagittal surgical saw handpiece designed for efficient bone cutting where a longer cutting arc and higher material removal rate are required. The sagittal motion produces a broader, sweeping cutting action, making the S-8S well suited for larger osteotomies and procedures requiring extended linear cuts.

With a compact design and high stroke frequency, the S-8S delivers powerful, predictable cutting while maintaining control. The handpiece is fully dismantlable to support stringent surgical hygiene protocols and long-term clinical use.

Clinical indications

• Larger or longer osteotomies

• CMF procedures requiring extended bone cuts

• Applications where efficient bone removal is prioritized

Why clinicians choose the S-8S

• Sagittal motion (approx. 3° arc) for efficient, extended cuts

• High cutting efficiency for larger osteotomies

• Consistent stroke frequency for predictable performance

• Serviceable, dismantlable design for surgical environments

Key features

• Sagittal saw motion

• Transmission ratio: 3.25:1

• Blade movement: approx. 3°

• Saw frequency: approx. 12,300 strokes/min

• Maximum drive speed: 40,000 rpm

• Dismantlable construction for thorough cleaning

• Designed for use with W&H sagittal saw blades

• Thermo washer-disinfectable and sterilizable

Technical summary

• Motion type: sagittal

• Transmission ratio: 3.25:1

• Blade movement: approx. 3°

• Frequency: ~12,300 strokes/min

• Maximum rated speed: 40,000 rpm

• Coupling system: ISO 3964 (DIN 13940)

• Dismantlable: yes
