W&H S-11 Straight Surgical Handpiece (1:1)

The S-11 is W&H’s classic, standard-length 1:1 straight surgical handpiece, recognized as a reliable workhorse in oral surgery and surgical dentistry. Popular with both oral and maxillofacial surgeons and general dentists, the S-11 has an excellent long-term track record for precision, durability, and tactile control.

Designed for Ø 2.35 mm surgical burs and cutters (including Stryker system) with a maximum bur length of 45 mm, the S-11 supports the most commonly used surgical bur format, with wide bur availability covering the full spectrum of oral surgical applications.

Manufactured in Austria by W&H, the S-11 features a dismantlable design for thorough cleaning, a secure lever chuck mechanism, and a robust stainless-steel housing with a scratch-resistant coating. Smooth, low-vibration performance and balanced ergonomics support fatigue-free working and excellent tactile feedback during surgery.

Clinical indications

• Apical resection

• Osteotomy

• Apical trepanning

• Bone modelling

Key features

• 1:1 straight transmission for predictable speed transfer

• Straight surgical handpiece design

• Accepts Ø 2.35 mm surgical burs and cutters (also Stryker system)

• Maximum bur length: 45 mm

• Lever chuck for secure bur retention

• External spray cooling

• Dismantlable for thorough cleaning and maintenance

• Smooth, low-vibration performance with excellent tactile control

• Durable stainless-steel housing, corrosion-resistant and easy to sterilize

• Thermo washer-disinfectable and autoclavable up to 135 °C

Feature Options:

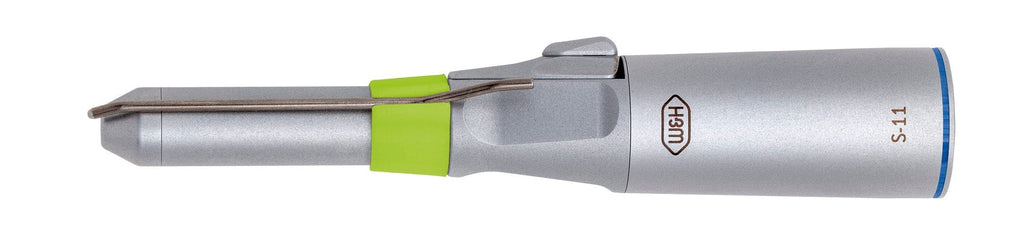

S-11 (Non-LED)

• 1:1, straight, dismantlable

• No integrated illumination; suited for setups using external light sources

• Ø 2.35 mm surgical burs and cutters

• Maximum bur length: 45 mm

• External spray

• Maximum drive speed: 50,000 rpm

• Coupling system: ISO 3964 (DIN 13940)

• W&H REF 30056000

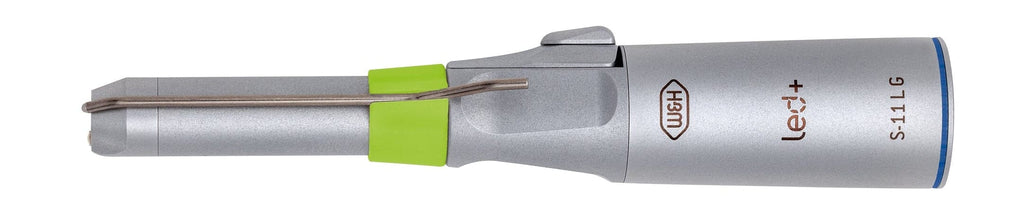

S-11 LG (mini LED+, self-generating)

• 1:1, straight, dismantlable

• Integrated mini LED+ with self-contained generator

• Daylight-quality illumination independent of the motor

• Ø 2.35 mm surgical burs and cutters

• Maximum bur length: up to 45 mm

• External spray

• Maximum drive speed: 40,000 rpm

• Coupling system: ISO 3964 (DIN 13940)

• W&H REF 30057000

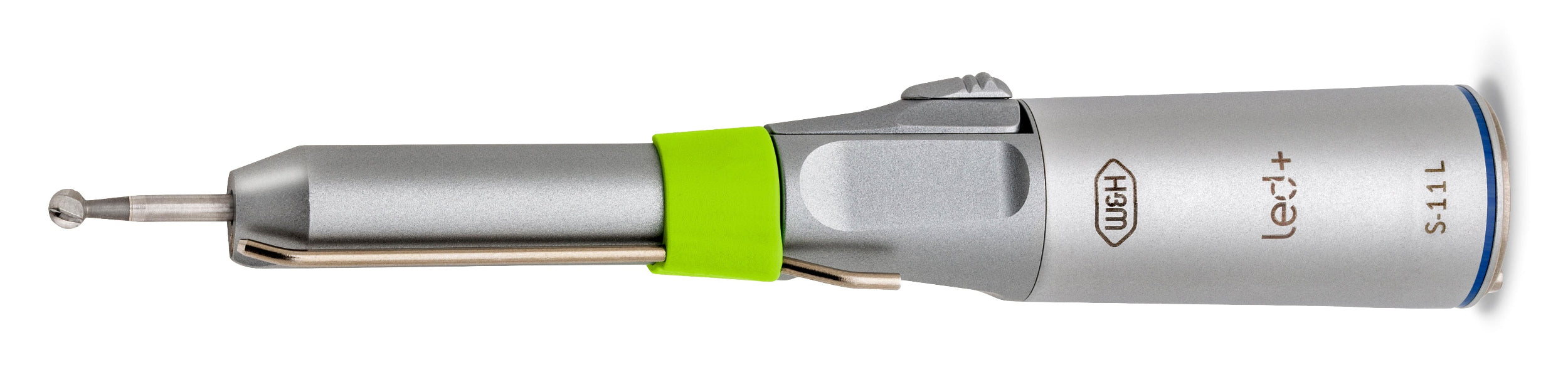

S-11 L (motor-powered LED)

• 1:1, straight, dismantlable

• mini LED+ powered via motor connection

• Can only be used with the W&H EM-19 LC electric motor (Implantmed Plus SI-1015)

• Ø 2.35 mm surgical burs and cutters

• Maximum bur length: up to 45 mm

• External spray

• Maximum drive speed: 50,000 rpm

• Coupling system: W&H EM-19 LC

• W&H REF 30058000

mini LED+ illumination overview

• LG variant: self-generating mini LED+ with an integral generator inside the handpiece, providing consistent illumination without relying on the motor.

• L variant: mini LED+ powered directly through the EM-19 LC motor connection, optimized for the Implantmed Plus SI-1015 system.

Both LED options enhance visibility at the treatment site and support precise, controlled surgical workflows.

Compatibility notes

• ISO E-type variants (S-11, S-11 LG) are fully compatible with standard ISO 3964 E-type surgical motors.

• Displayed RPM values depend on motor and handpiece calibration; when using non-W&H motors or handpieces, minor deviations between displayed RPM and actual bur speed may occur.

Technical summary

• Gear ratio: 1:1

• Design: straight surgical handpiece

• Bur system: Ø 2.35 mm (also Stryker system)

• Maximum bur length: 45 mm

• Cooling: external spray

• Coupling system: ISO 3964 (DIN 13940) or W&H EM-19 LC (variant-dependent)

• Material: stainless steel

• Sterilization: thermo washer-disinfectable and autoclavable up to 135 °C

• Origin: Austria
