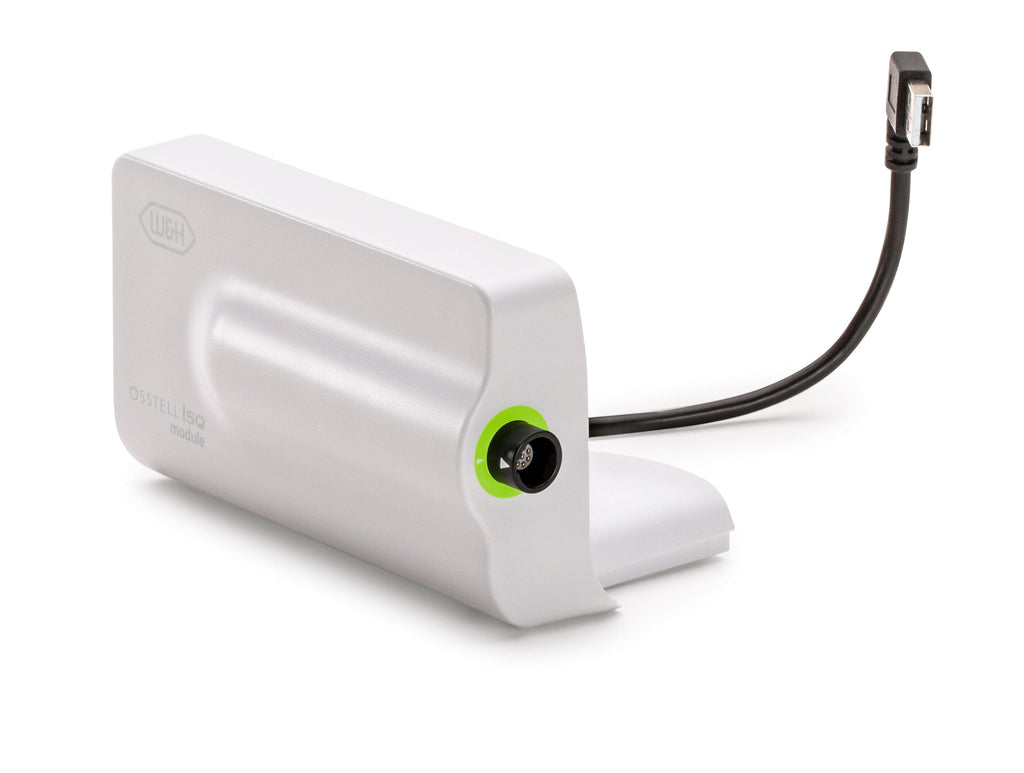

W&H Osstell ISQ Module for Implantmed Plus SI-1015

The W&H Osstell ISQ Module enables objective, measurable implant stability assessment directly within the Implantmed Plus SI-1015 system. By combining the implant insertion torque graph with a precisely measured Implant Stability Quotient (ISQ), clinicians gain a more complete and clinically meaningful view of primary implant stability.

ISQ measurement is widely accepted and supported by numerous clinical studies as a reliable, non-invasive indicator of implant stability. Integrated directly into the Implantmed Plus workflow, the ISQ Module allows stability assessment without the need for a separate standalone measurement device.

This module is designed exclusively for use with the Implantmed Plus SI-1015.

Clinical value

Measurable implant stability
ISQ values complement insertion torque data, supporting evidence-based decisions around immediate loading, delayed loading, and overall treatment planning.

Integrated workflow
Stability measurements are performed directly through the Implantmed Plus system, minimizing workflow disruption and reducing chairside complexity.

Clinically validated technology
The Implant Stability Quotient is supported by extensive clinical research and is widely used as a benchmark for implant stability assessment and documentation.

What’s included

The W&H Osstell ISQ Module set includes:

• W&H Osstell ISQ Module

• Measuring probe with cable

• TestPeg

• Voucher for 5 SmartPegs

Reference: SI-SQ
W&H REF: 30210000

Availability in Implantmed Plus SI-1015 Intro Kits

The W&H Osstell ISQ Module is included as standard in select Implantmed Plus SI-1015 Intro Kit configurations.

The ISQ Module is included in:

• Set 4

• Set 6

• Set 8

If you are purchasing one of these Implantmed Plus SI-1015 Intro Kits, the ISQ Module does not need to be ordered separately.

Compatibility and limitations (important)

• Compatible only with Implantmed Plus SI-1015

• Not backward compatible with earlier Implantmed models

• Not compatible with other manufacturers’ systems

The Implantmed Plus SI-1015 features one expansion slot only.

If a Piezomed module is already installed, or if both piezo surgery and implant stability measurement are planned, it is recommended to use an external Osstell Beacon stability measurement device instead of the internal ISQ Module.

When to purchase the ISQ Module separately

Order the W&H Osstell ISQ Module as a standalone accessory if:

• You already own an Implantmed Plus SI-1015 without ISQ capability

• Your SI-1015 Intro Kit does not include Sets 4, 6, or 8

• You are upgrading an installed system and have an available expansion slot

Important ordering notice

• Accessory for Implantmed Plus SI-1015 only

• Special-order accessory

• Please verify expansion slot availability before ordering
