Implantmed Plus SI-1015 Implant Motor System (120 V)

Flexible implant workflows. Precise torque control. Measurable stability.
The Implantmed Plus SI-1015 is a modular implant motor system designed for oral surgery and implantology, combining intuitive operation, accurate torque control, and optional implant stability measurement in a single platform.

Built for today’s clinical needs and tomorrow’s upgrades, Implantmed Plus adapts to different surgeons, protocols, and workflows without compromising precision or safety.

Why clinicians choose Implantmed Plus

Safe

• Automatic torque control for controlled implant insertion

• Integrated thread cutter function

• Optional implant stability measurement (ISQ) with Osstell technology

• Documentation of torque and stability values for clinical records

Simple

• Color touch screen with clear, self-evident menu navigation

• Glass surface for easy cleaning

• Intuitive pump design for fast irrigation tubing loading

• Focused display shows only essential parameters during treatment

Flexible

• Wired or wireless foot control options

• Compatible with standard ISO E-type handpieces

• Upgradeable at any time with optional modules

• Multi-user profiles and drill protocols for group practices

Designed around the implant workflow

Osteotomy

• Rotational speeds up to 40,000 rpm

• Coolant flow of at least 90 ml/min to help prevent thermal necrosis

Implant insertion

• Adjustable automatic torque control from 5 to 80 Ncm

• Smooth, controlled implant placement

Thread cutting

• Automatic thread cutter function supports implant insertion

Stability measurement (optional)

• Upgradeable with the W&H Osstell Beacon

• Wireless stability measurement displayed directly on screen

• Supports clinical decision-making and patient communication

User-focused design

• Customizable profiles for multiple surgeons and protocols

• Documentation function saves torque data to USB

• Continuous software updates deliver improvements and new features

• Designed for efficient collaboration between surgeon and assistant

Handpiece compatibility & LED clarification

• The system accepts standard ISO E-type handpieces from all brands.

• W&H handpieces without a letter designation do not provide illumination.

• LG-designated W&H handpieces contain an internal LED generator and illuminate independently of the motor.

• L-designated W&H handpieces are current-generation handpieces designed to receive illumination from a compatible EM-19 LC motor with LED capability.

• Third-party E-type handpieces operate mechanically but do not support LED illumination, and may not perform as per spec.

Displayed RPM values are calibrated to W&H handpiece gear ratios. When using non-W&H geared handpieces, deviations between displayed RPM and actual bur speed may occur.

What’s included (all set configurations)

Every Implantmed Plus SI-1015 control unit set includes:

• Implantmed Plus SI-1015 Control Unit (120 V)

• Universal Handpiece Rest (WH-07721800)

• Irrigation Stand (WH-04005900)

• Power cord

• 3 × Disposable irrigation tubes (WH-04363600)

• Motor cable irrigation tube clamps (WH-06290600)

• Instructions for Use (IFU)

Motors, foot controls, and optional modules vary by set configuration selected

Configuration options

Configure the system to match your workflow:

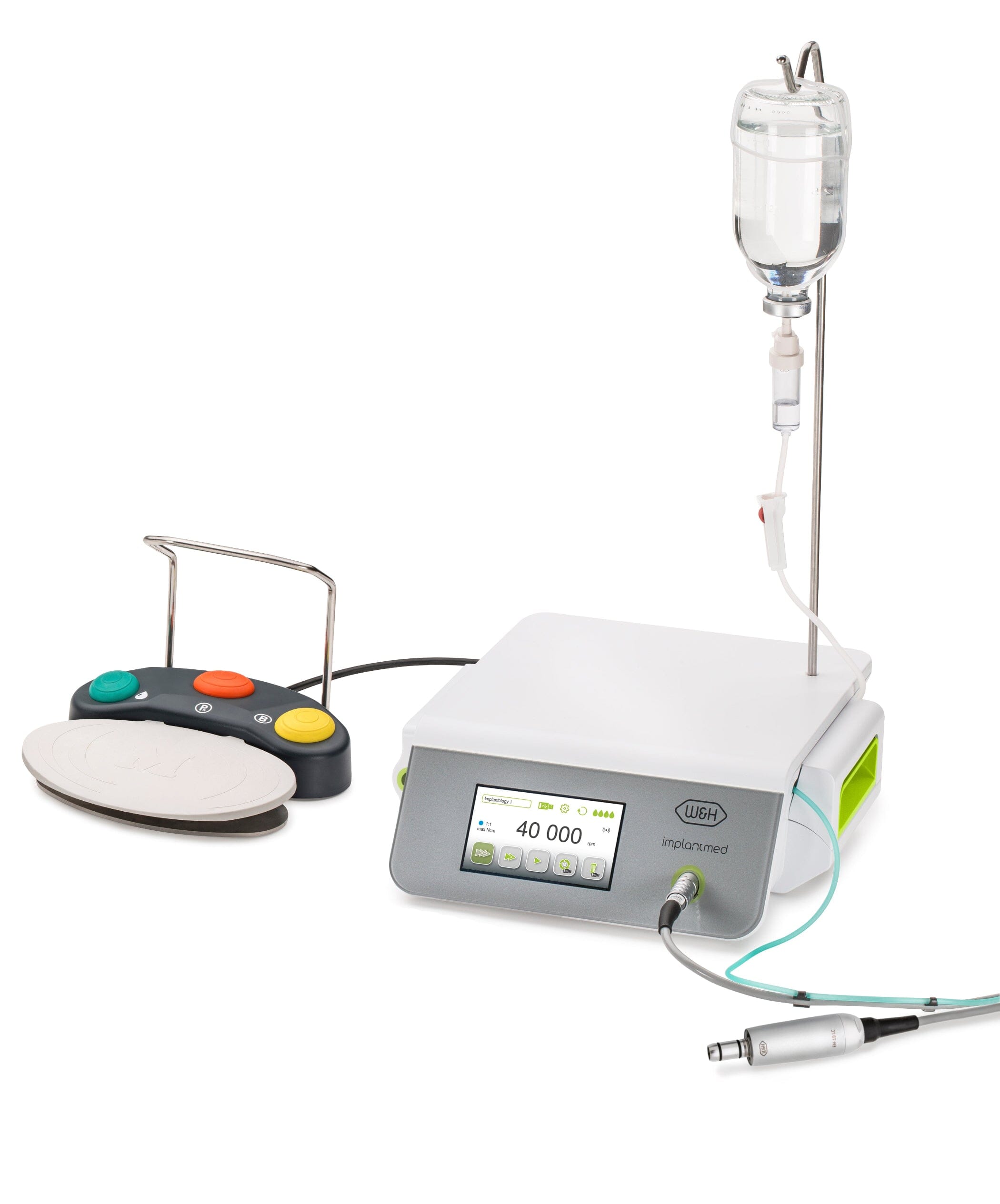

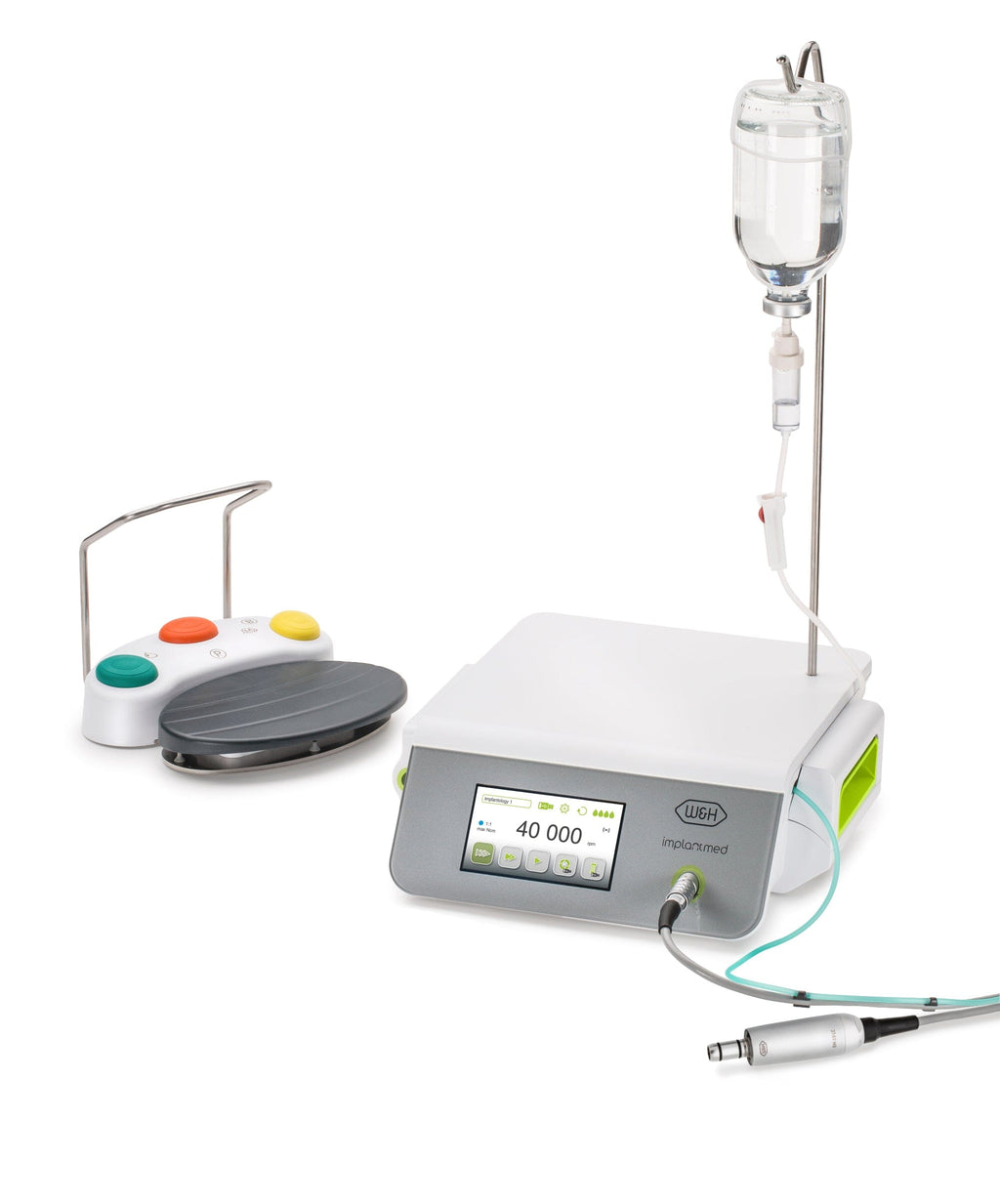

• Foot control: Wired (S-N2) or wireless (S-NW)

• Motor: Standard EM-19 or EM-19 with LED capability

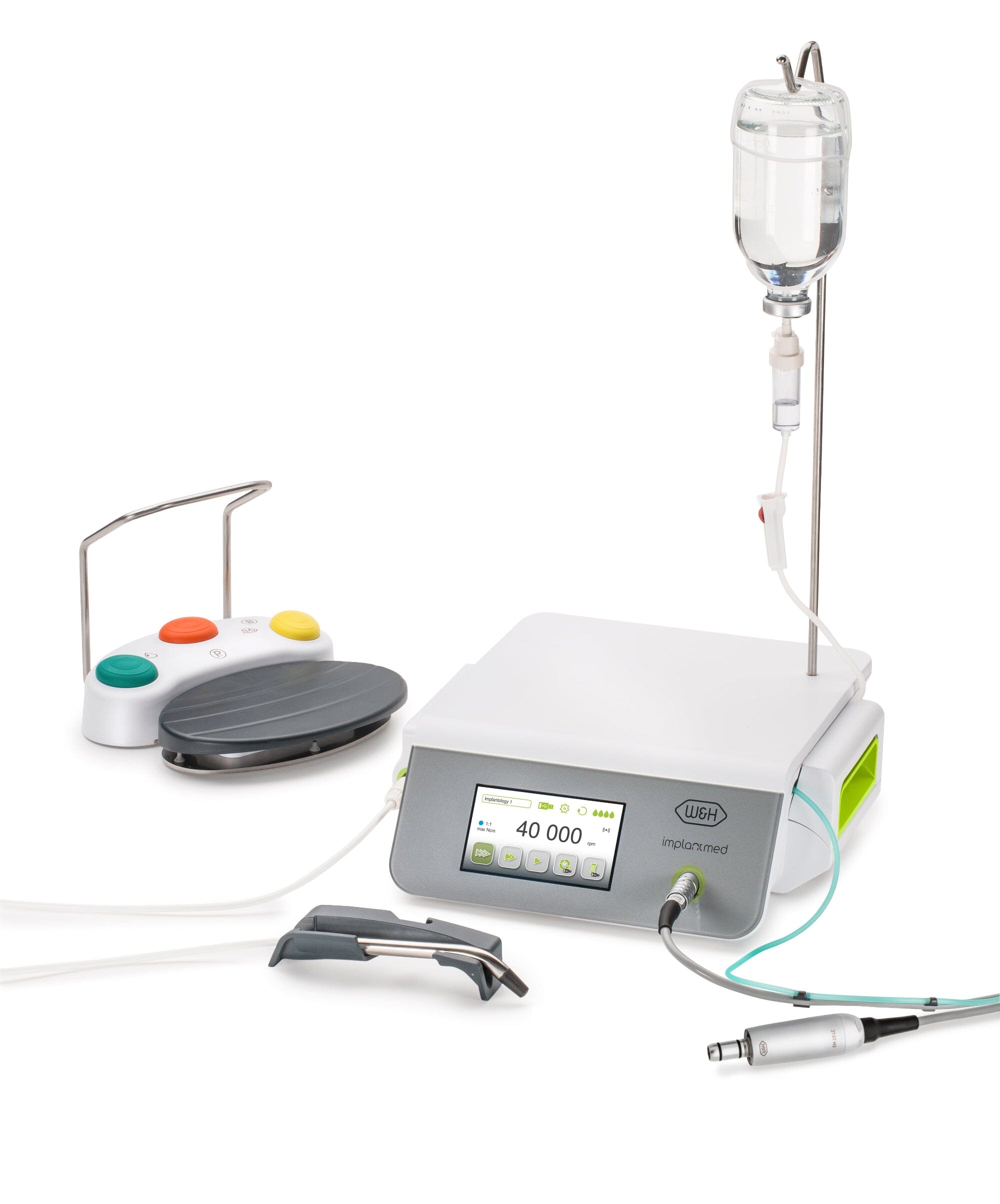

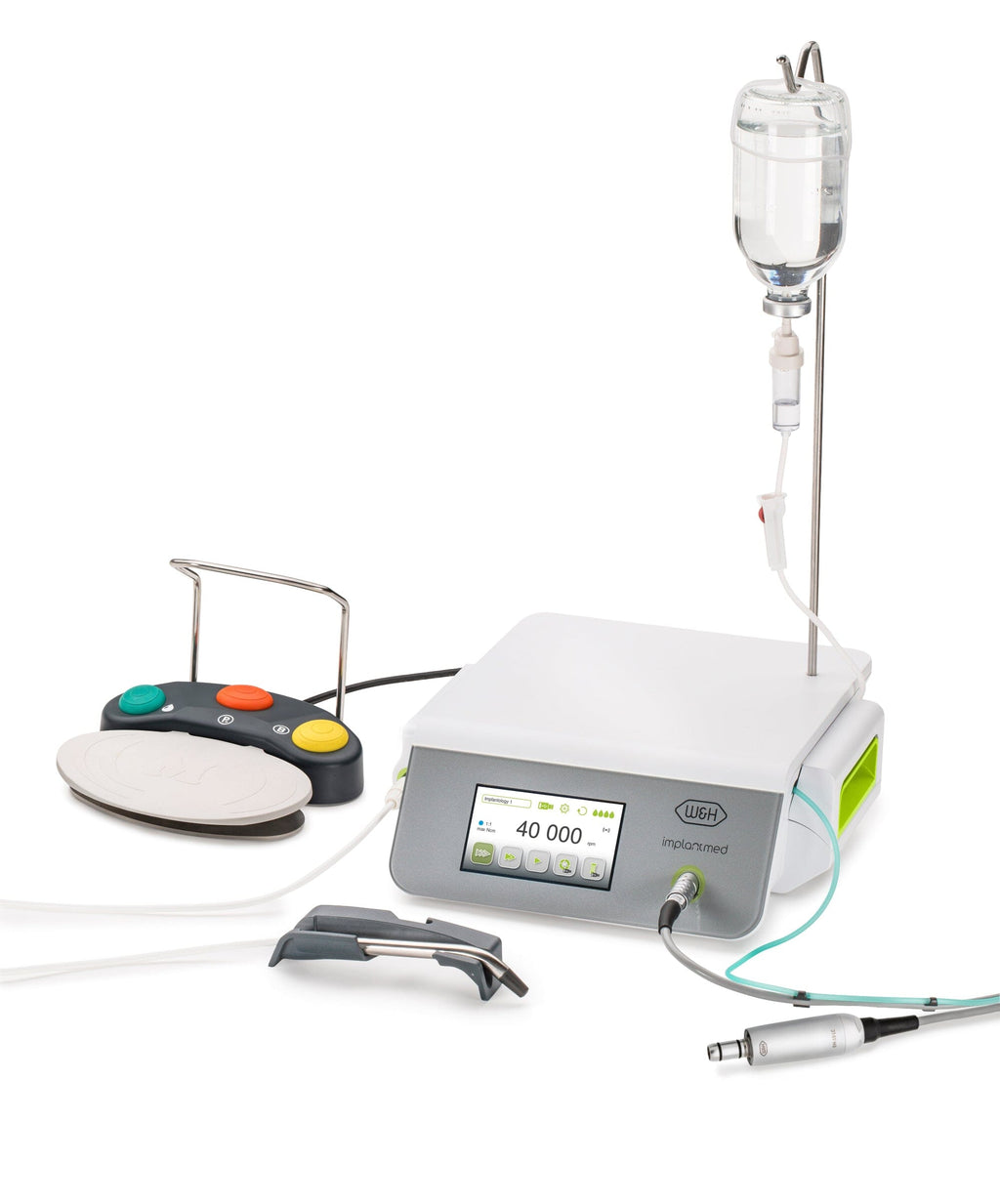

• Optional module: Osstell ISQ stability measurement

• NOTE: Piezomed piezo surgery module is not available as part of intro sets

Each configuration corresponds to a specific W&H set and Xemax SKU.

Technical specifications — SI-1015 (120 V)

• Mains voltage: 120 V

• Permissible voltage fluctuation: 110 – 130 V

• Rated current: 0.3 – 1.6 A

• Frequency: 50 – 60 Hz

• Mains fuse: 250 V – T1.6 AH (2 pcs)

• Maximum power consumption: 170 VA

• Maximum power output: 80 W

• Maximum torque at motor: 6.2 Ncm

• Motor speed range: 200 – 40,000 rpm

• Coolant flow at 100%: ≥ 90 ml/min

• Dimensions (H × W × D): 100 × 262 × 291 mm

• Weight: 3.5 kg

• Foot control compatibility: S-N2 / S-NW

• Warranty: 24 months

Documentation & Instructions for Use (IFU)

For safe operation and maintenance, the following IFUs are available for download:

• Implantmed Plus SI-1015 Control Unit IFU

• Implantmed / Elcomed Motor IFU

• Foot Control IFU (wired or wireless, as applicable)

Always follow the Instructions for Use for cleaning, servicing, and operation.
