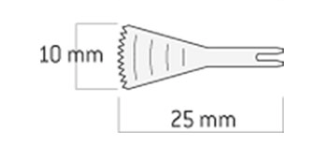

A diagram of the W&H Sagittal Saw Blade, a flat tool with a jagged end measuring 10 mm wide and 25 mm long. The handle features a forked tip, and the blade displays three curved lines, indicating its common use in maxillofacial procedures for oscillating osteotomy with sagittal saw blades by W&H.
Diagram of a flat, pronged tool with a jagged edge, labeled as 6 mm wide and 25 mm long—commonly utilized in maxillofacial procedures. This design is characteristic of W&H Sagittal Saw Blades by W&H, used for precision during oscillating osteotomy.
Roll over image to zoom in Click on image to zoom
A diagram of the W&H Sagittal Saw Blade, a flat tool with a jagged end measuring 10 mm wide and 25 mm long. The handle features a forked tip, and the blade displays three curved lines, indicating its common use in maxillofacial procedures for oscillating osteotomy with sagittal saw blades by W&H.Diagram of a flat, pronged tool with a jagged edge, labeled as 6 mm wide and 25 mm long—commonly utilized in maxillofacial procedures. This design is characteristic of W&H Sagittal Saw Blades by W&H, used for precision during oscillating osteotomy.

W&H Sagittal Saw Blades

W&HSKU: W&H-08130940
Width: 6mm
Price:
$0.00
Stock:
Re-stocking soon

Description

W&H Sagittal Saw Blades for the Saw Handpiece S-8 S. Precision-engineered for oscillating osteotomy in oral and maxillofacial procedures, each blade includes an integrated depth gauge with 2.5 mm graduations for controlled, accurate cutting.

Available in two blade widths, both with a 25 mm working length:

  • 6 mm wide – for finer, more delicate cuts
  • 10 mm wide – for wider osteotomies

Supplied in five packs only.

Changing the saw blade

  1. Undo the clamping screw with the spanner or by hand. Ensure that the sheath remains closed.
  2. Insert the blade up to the limit stop, or remove it.
  3. Guide the spanner to the clamping screw and use it to tighten the clamping screw.
  4. Verify full engagement before use.

Note: W&H saw handpieces and blades are currently available for sale to certified Maxillofacial Surgeons only.
