W&H Piezomed Lateral Sinus Lift Tips

Compatible with the W&H Piezomed SA-320 Piezosurgery System

Product Overview

Piezomed lateral sinus lift tips from W&H Dentalwerk are purpose-designed for predictable, atraumatic lateral sinus floor augmentation—from precise bone window preparation to controlled elevation of the Schneiderian membrane.

Powered by piezoelectric ultrasound technology, these tips enable selective cutting of mineralized tissue while helping preserve soft tissue structures. Integrated with the Piezomed SA-320 system, each tip is automatically detected and assigned to the correct power class, supporting procedural safety, consistent performance, and extended instrument service life.

Indications

• Lateral (direct) sinus lift procedures

• Preparation of the lateral bony window

• Crown margin and crown edge extensions

• Atraumatic detachment and elevation of the Schneiderian membrane

Tip Selection and Clinical Roles

Bone Window Preparation

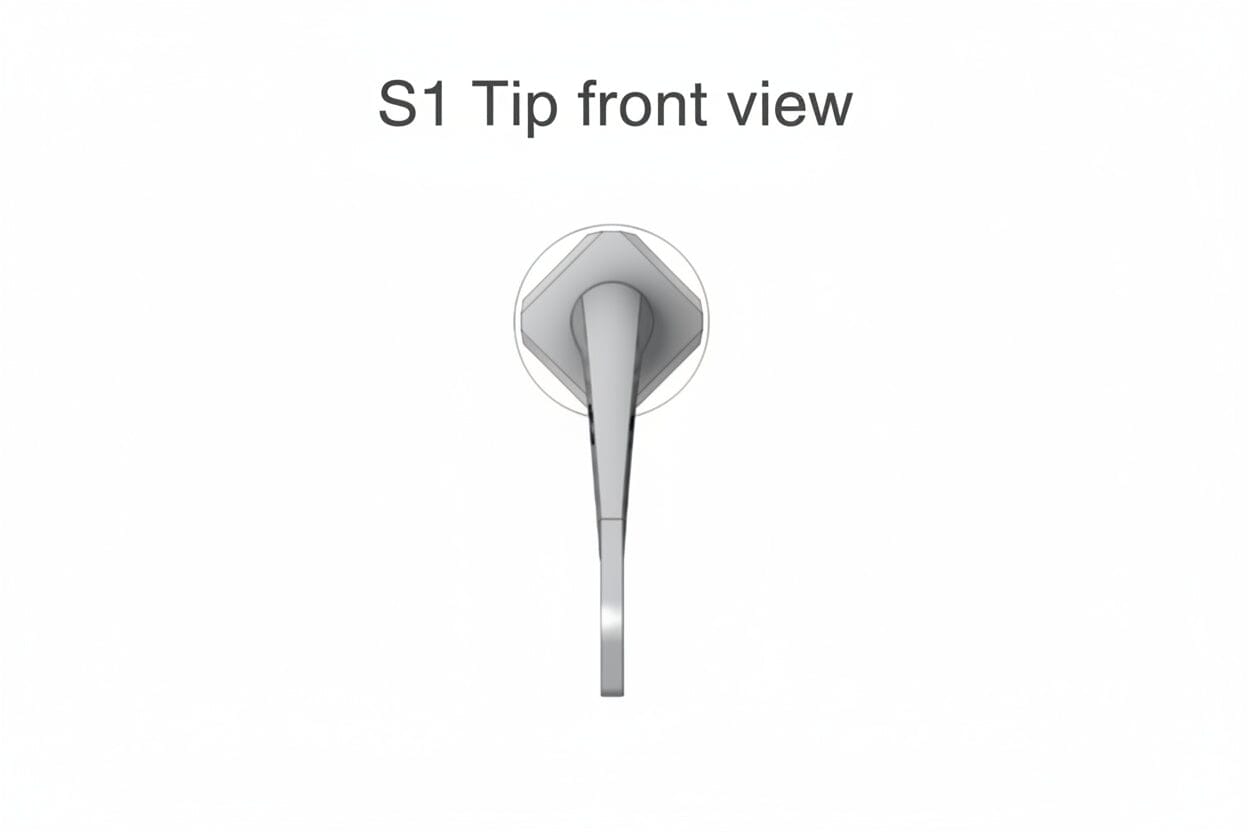

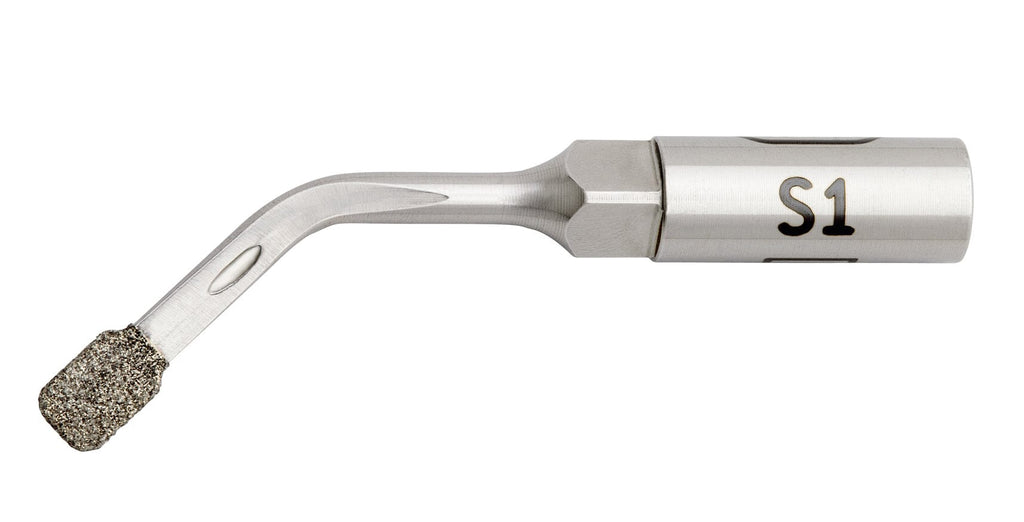

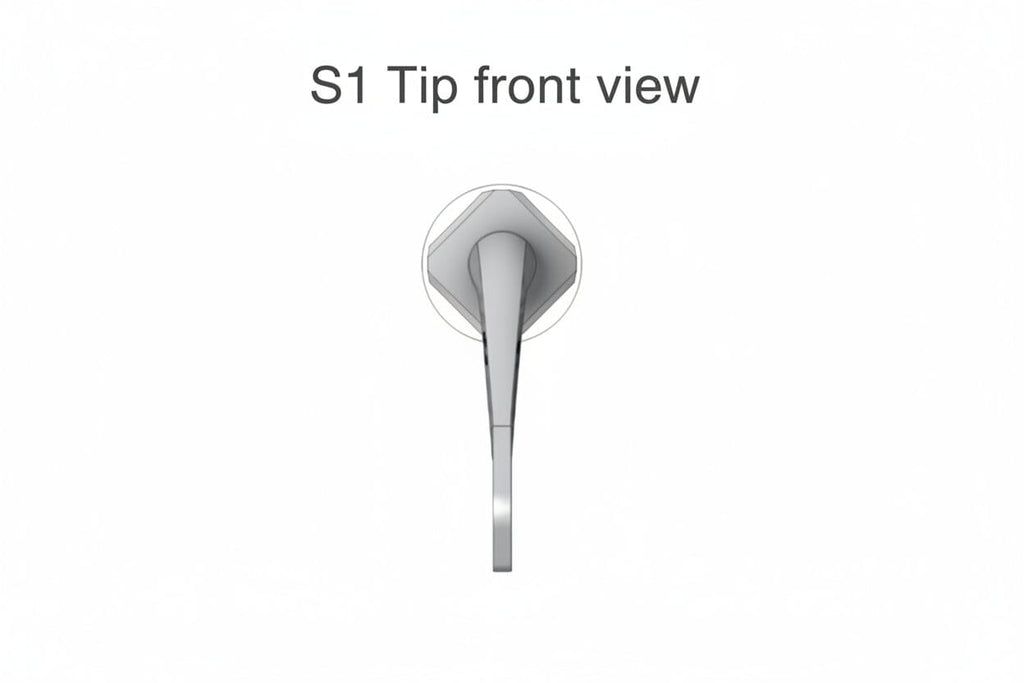

S1 Tip for Piezomed (REF 05542900)
Diamond-coated rectangular cutting surface for controlled bone preparation.

• 0.6 mm tip thickness

• 90 µm diamond grain

• Manufacturer-recommended settings: 100% power / 100% irrigation
  Indicated for preparation of bone, lateral sinus window creation, and crown margin extension. Best results are achieved with slow movements and minimal pressure.

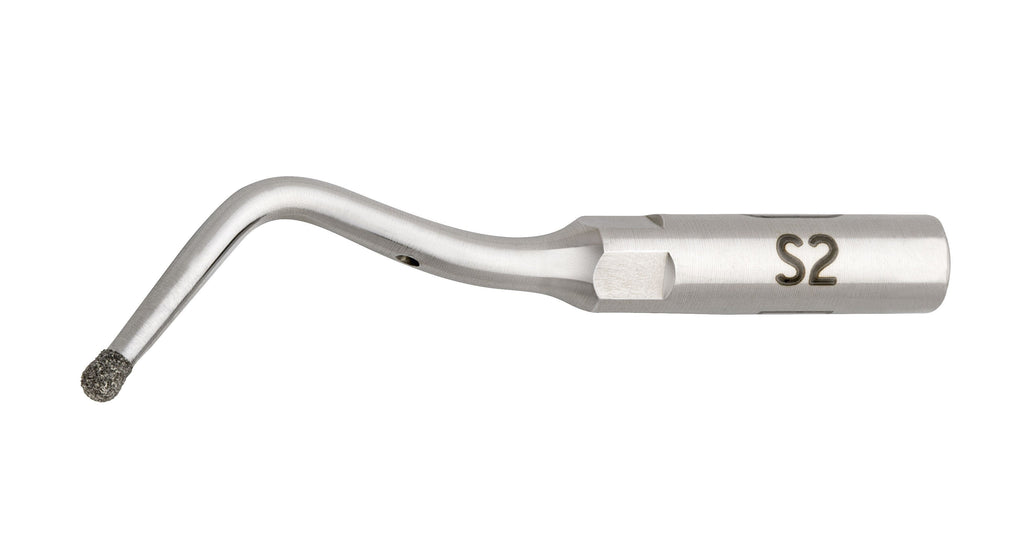

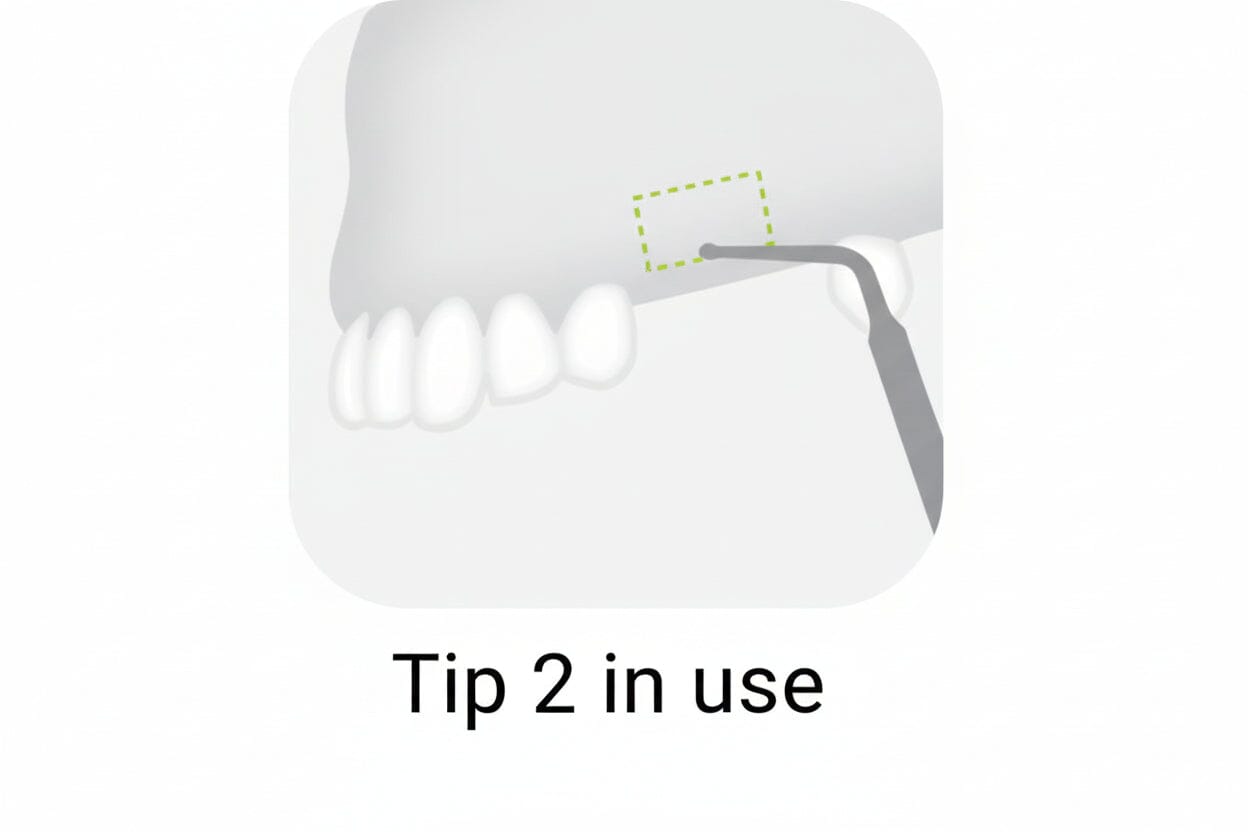

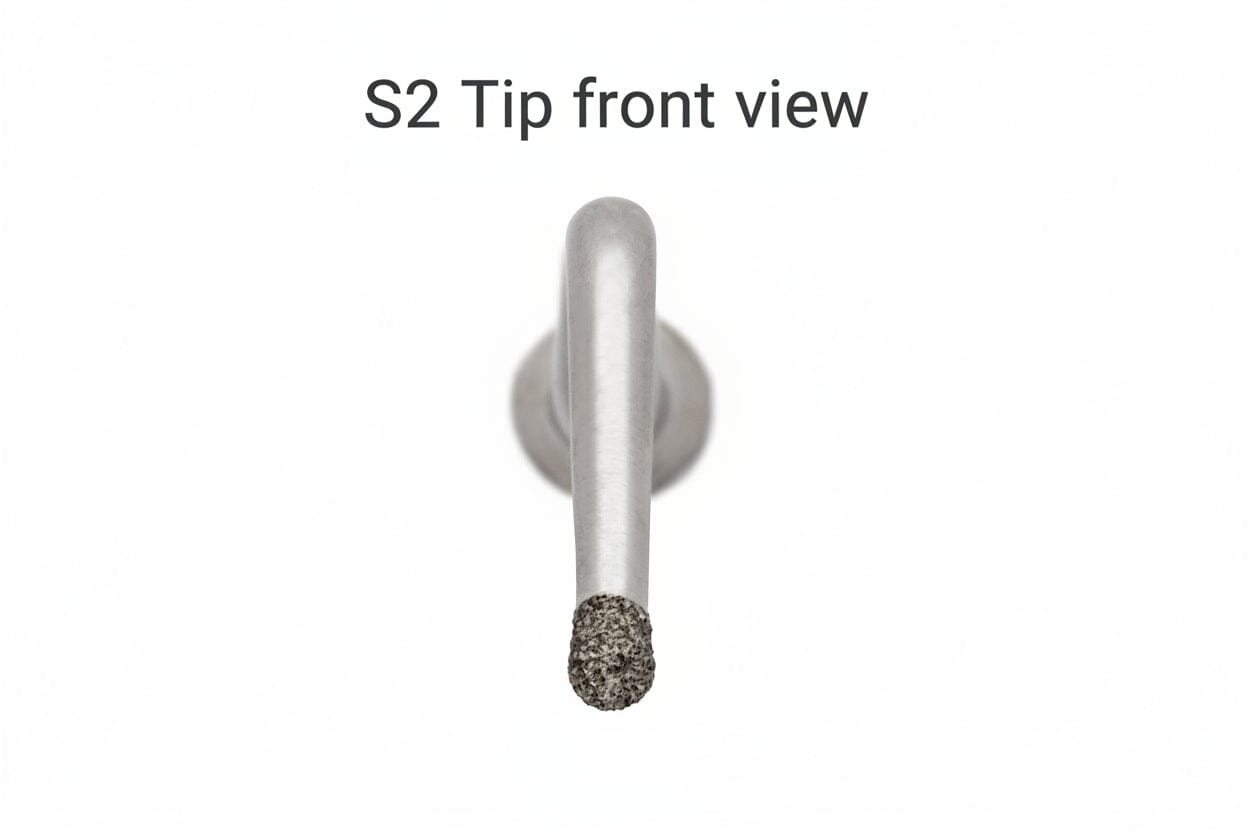

S2 Tip for Piezomed (REF 05534700)
Diamond-coated round ball tip for refined window preparation.

• 1.7 mm round ball

• 60 µm diamond grain

• Manufacturer-recommended settings: 75% power / 80% irrigation
  Used for preparation of the lateral sinus window and crown margin extension. Optimal performance is achieved with forward-and-back movements aligned with the axial direction of the handpiece.

Schneiderian Membrane Detachment & Elevation

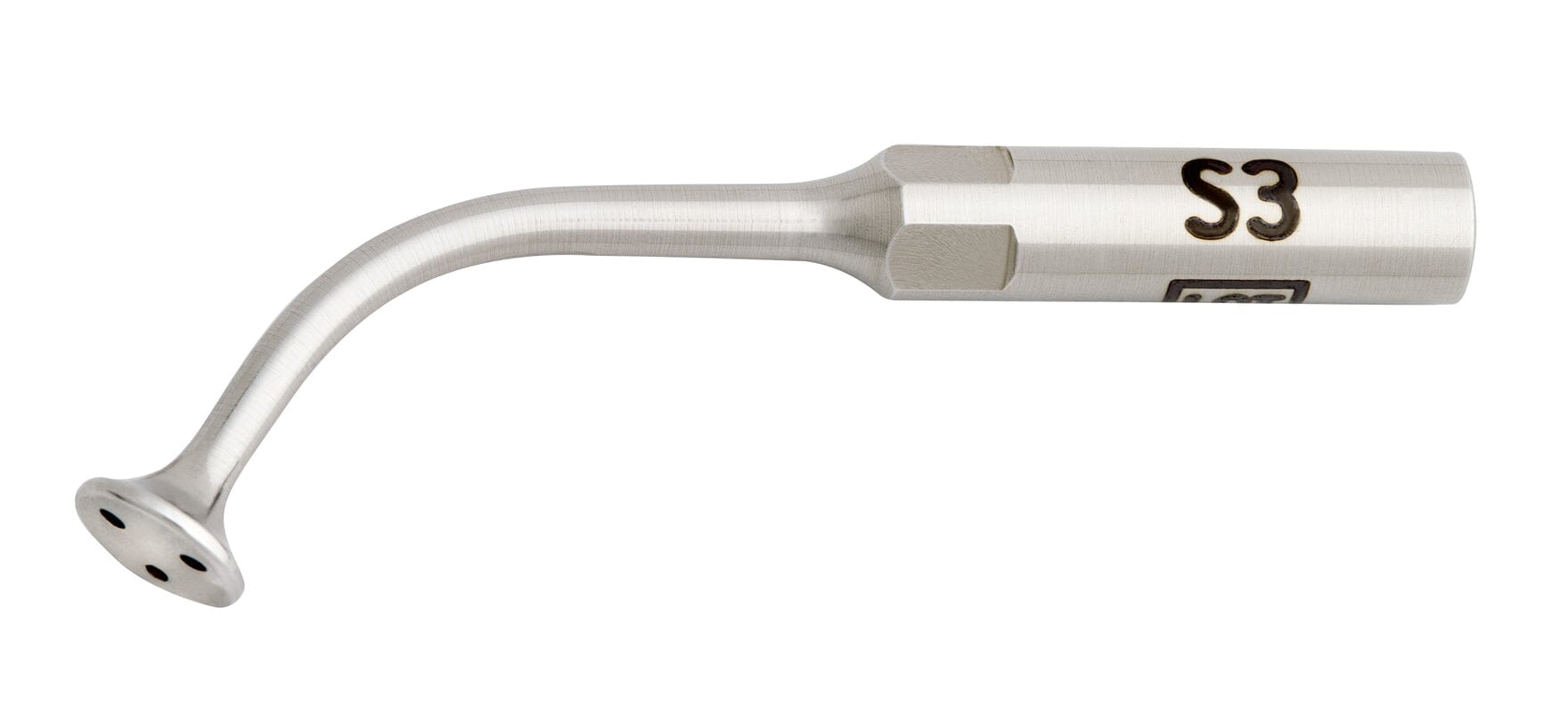

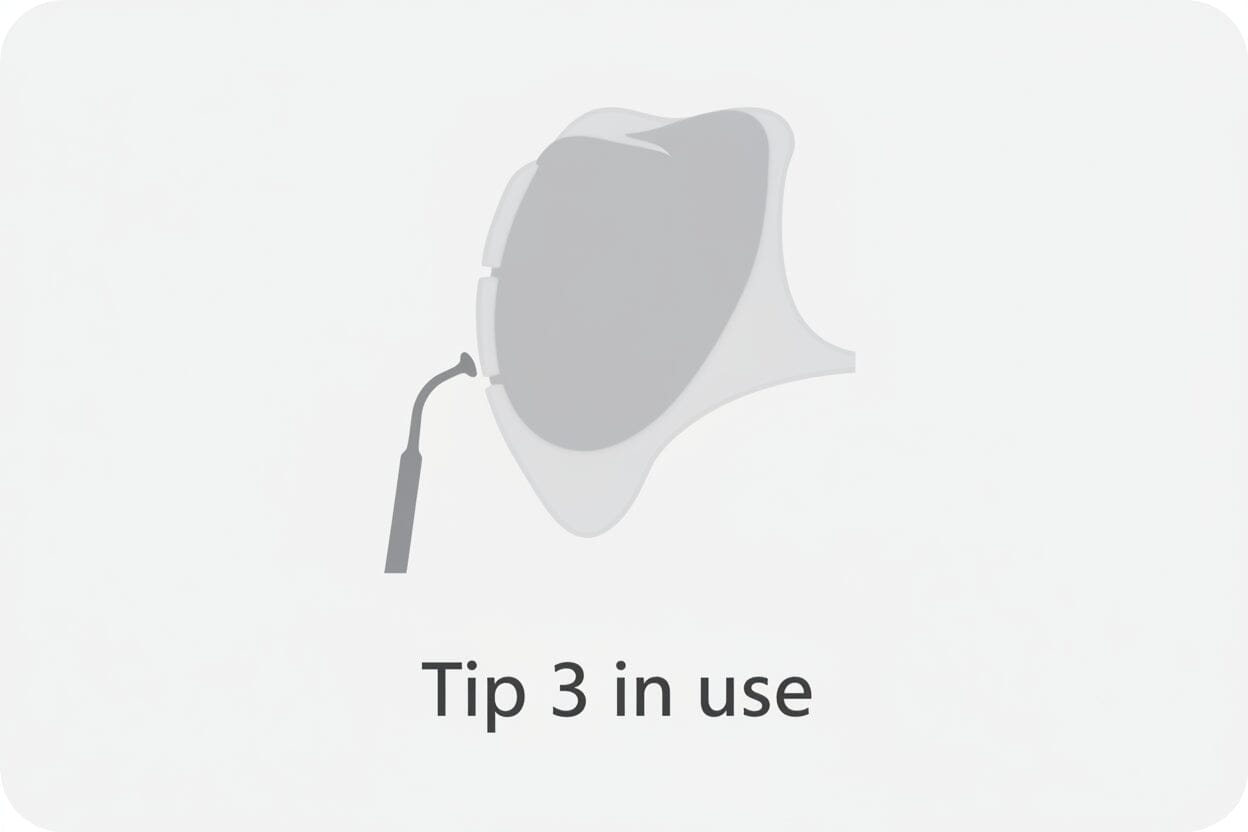

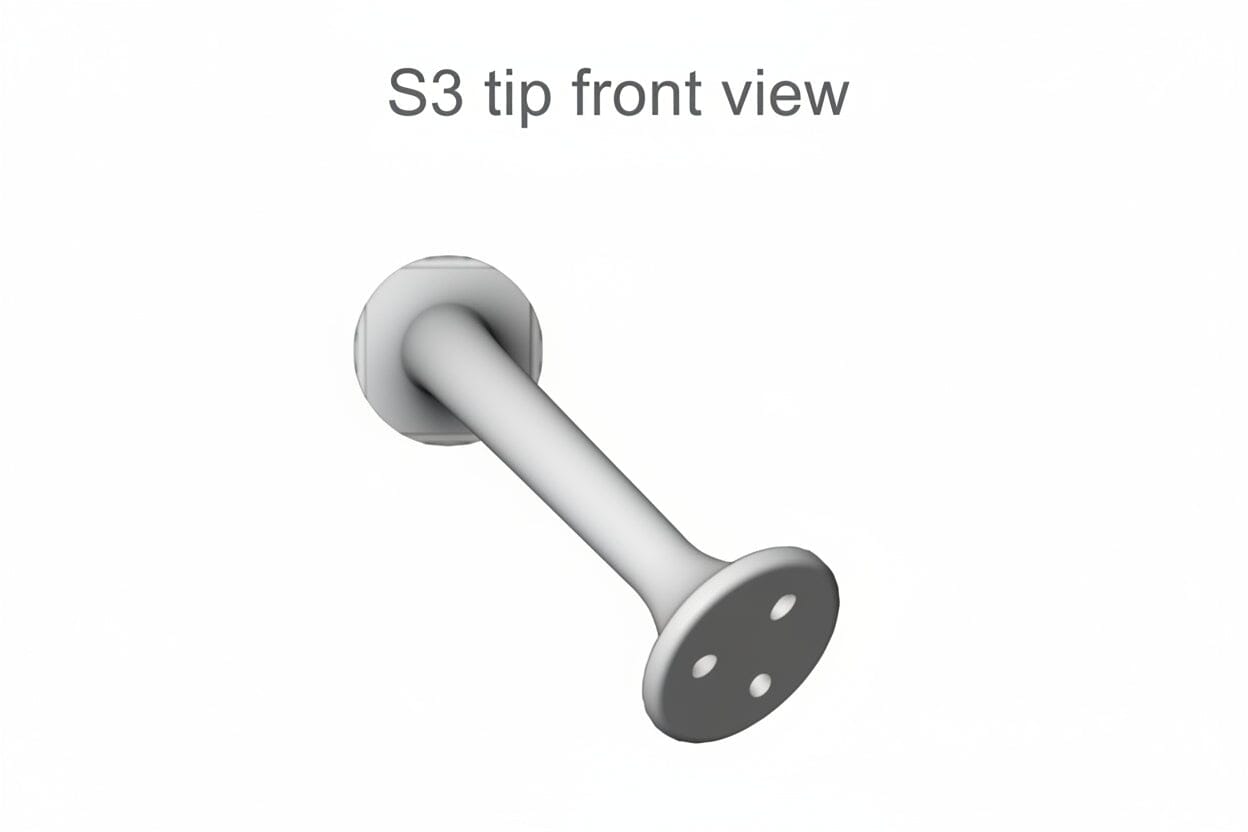

S3 Tip for Piezomed (REF 05508200)
Internally irrigated membrane elevator with protective coolant delivery.

• 4.9 mm wide flute

• Triple spray coolant outlets

• Manufacturer-recommended settings: 75% power / 90% irrigation
  Designed for atraumatic detachment of the sinus mucosa and elevation of the Schneiderian membrane. The coolant fluid forms a protective film between the instrument and membrane, allowing a softer, safer “push.” Best results are achieved with slow movements and very light pressure along the bone–soft tissue junction.

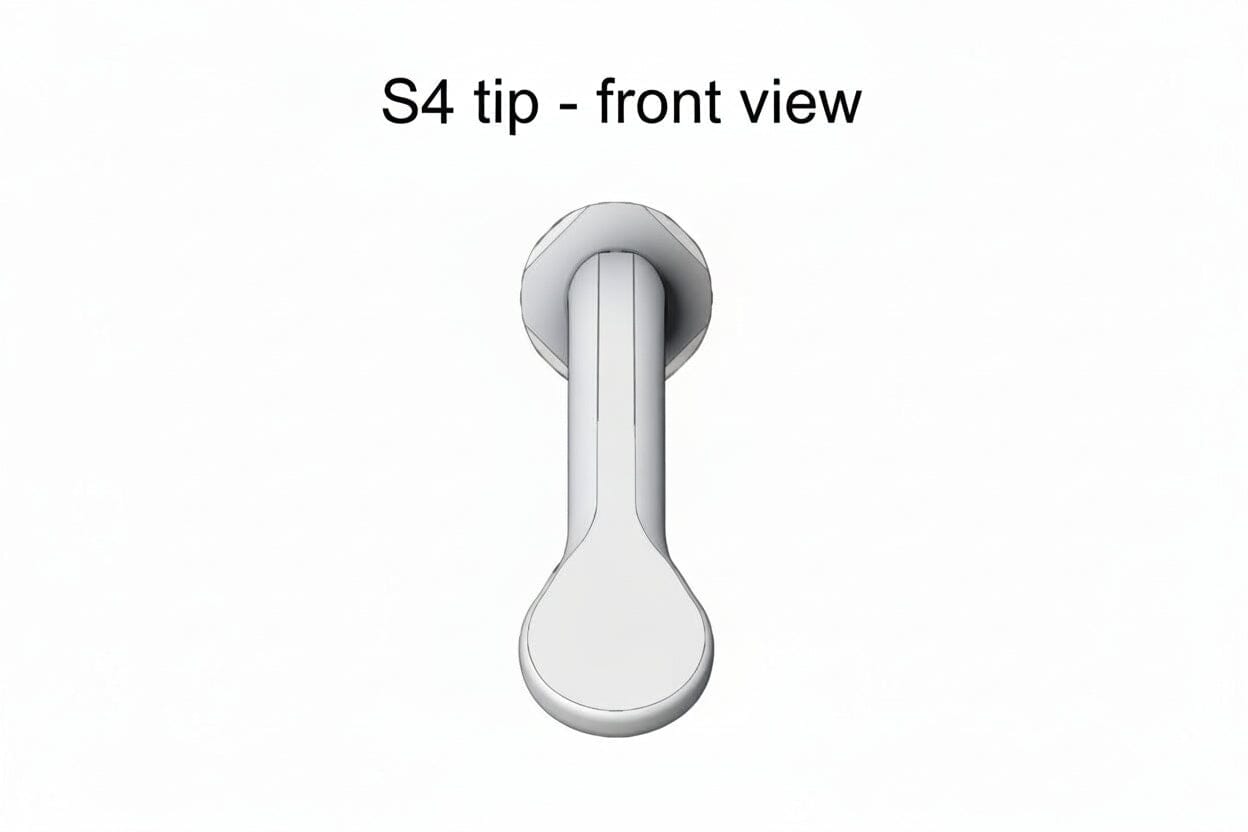

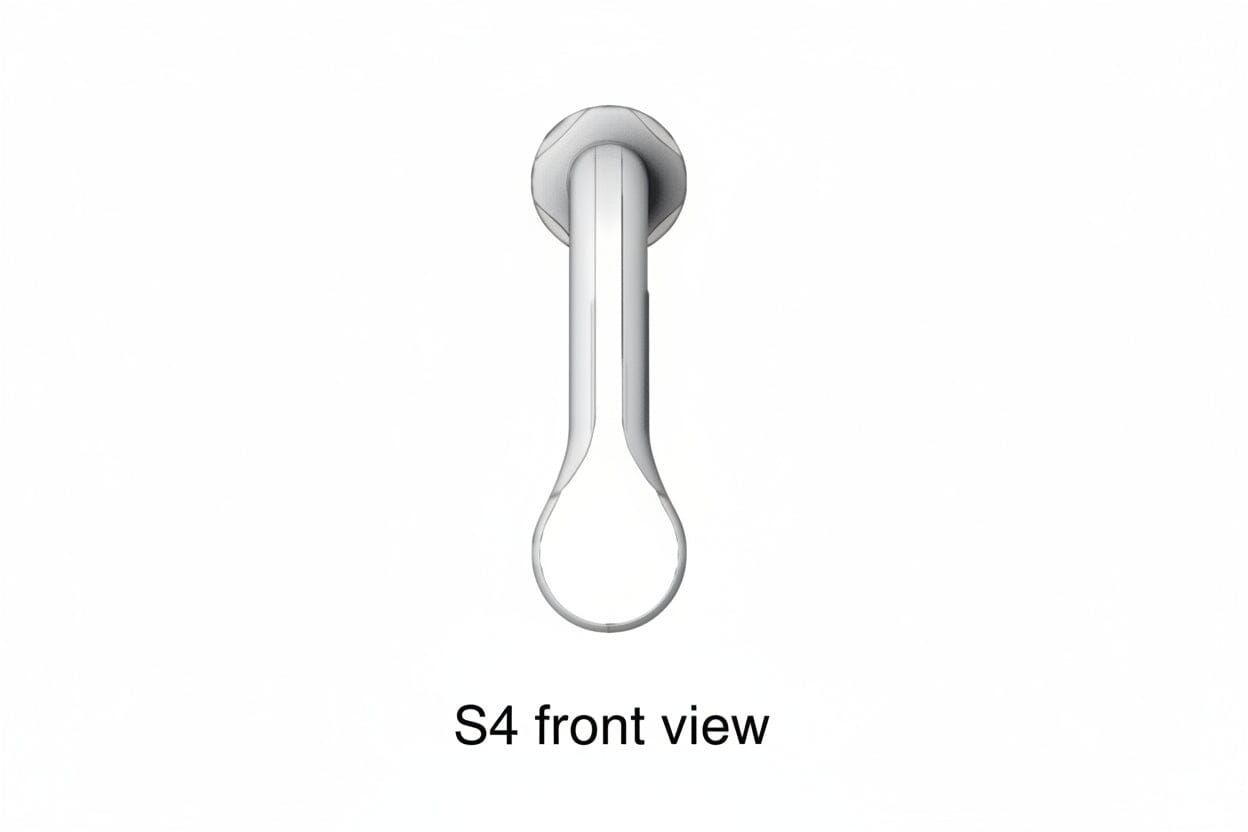

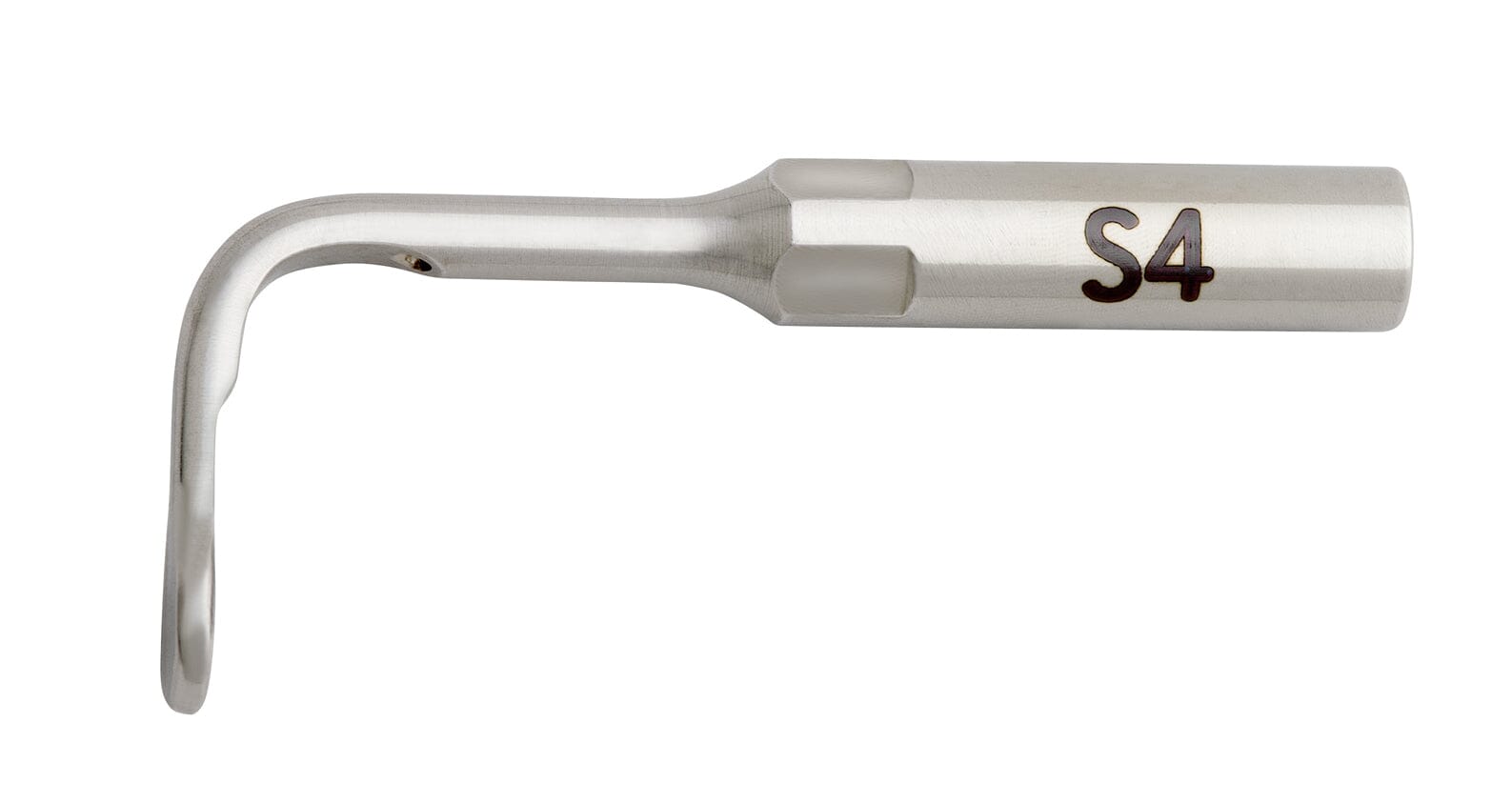

S4 Tip for Piezomed (REF 05542300)
Blunt paddle-shaped elevator with compact geometry.

• 4 mm wide round blunt working edge

• 8 mm working depth

• 90° angulation

• Manufacturer-recommended settings: 65% power / 90% irrigation
  Used for atraumatic elevation and detachment of the Schneiderian membrane. The interior surface of the working edge should remain in continuous contact with bone to maintain control and safety.

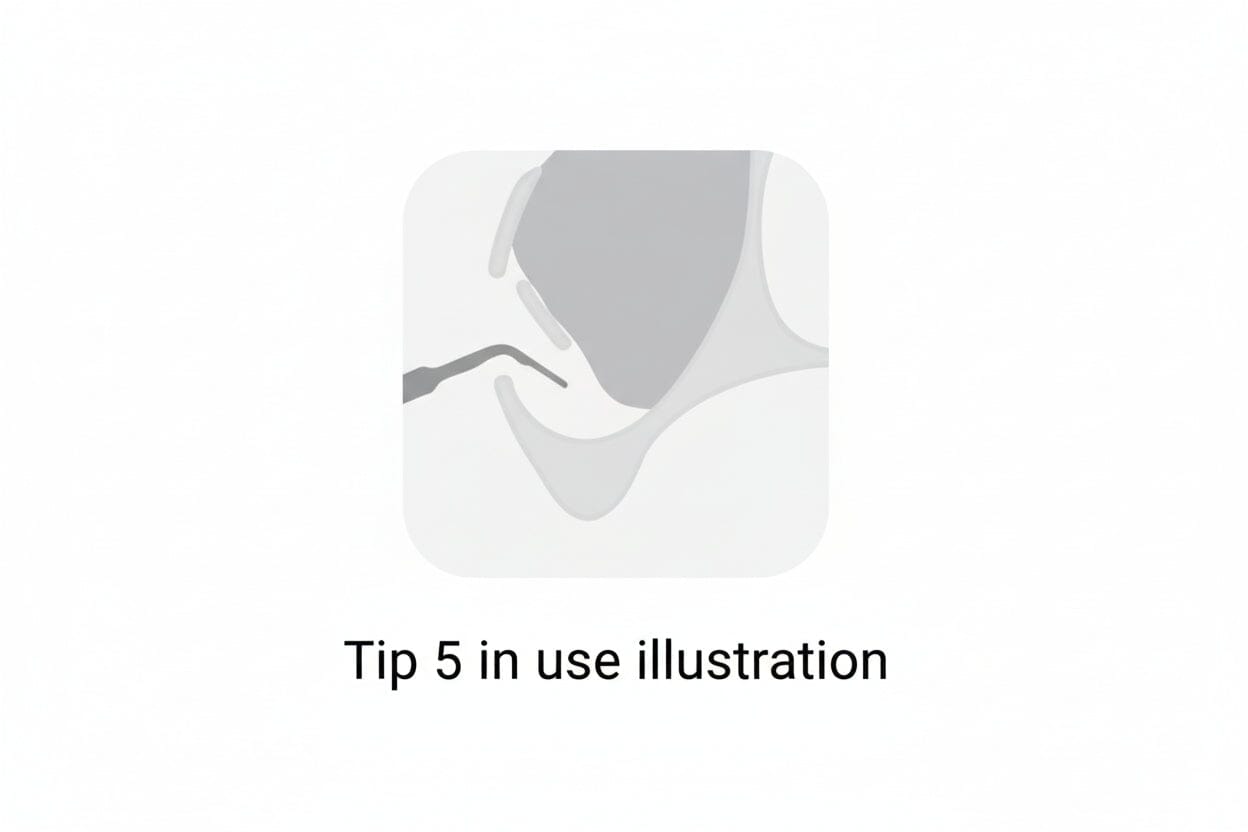

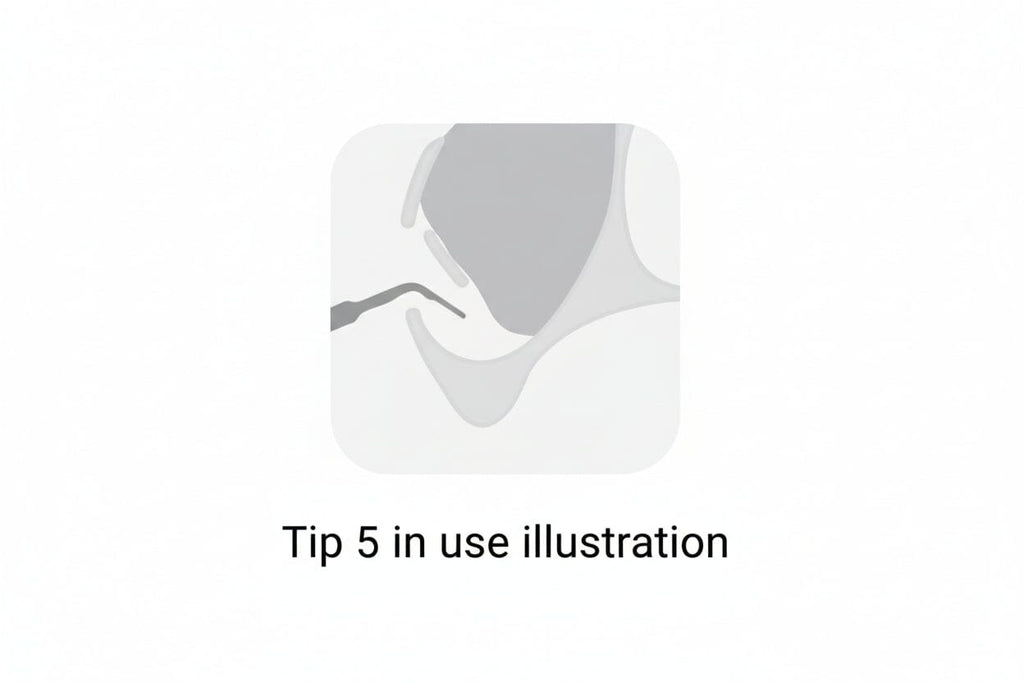

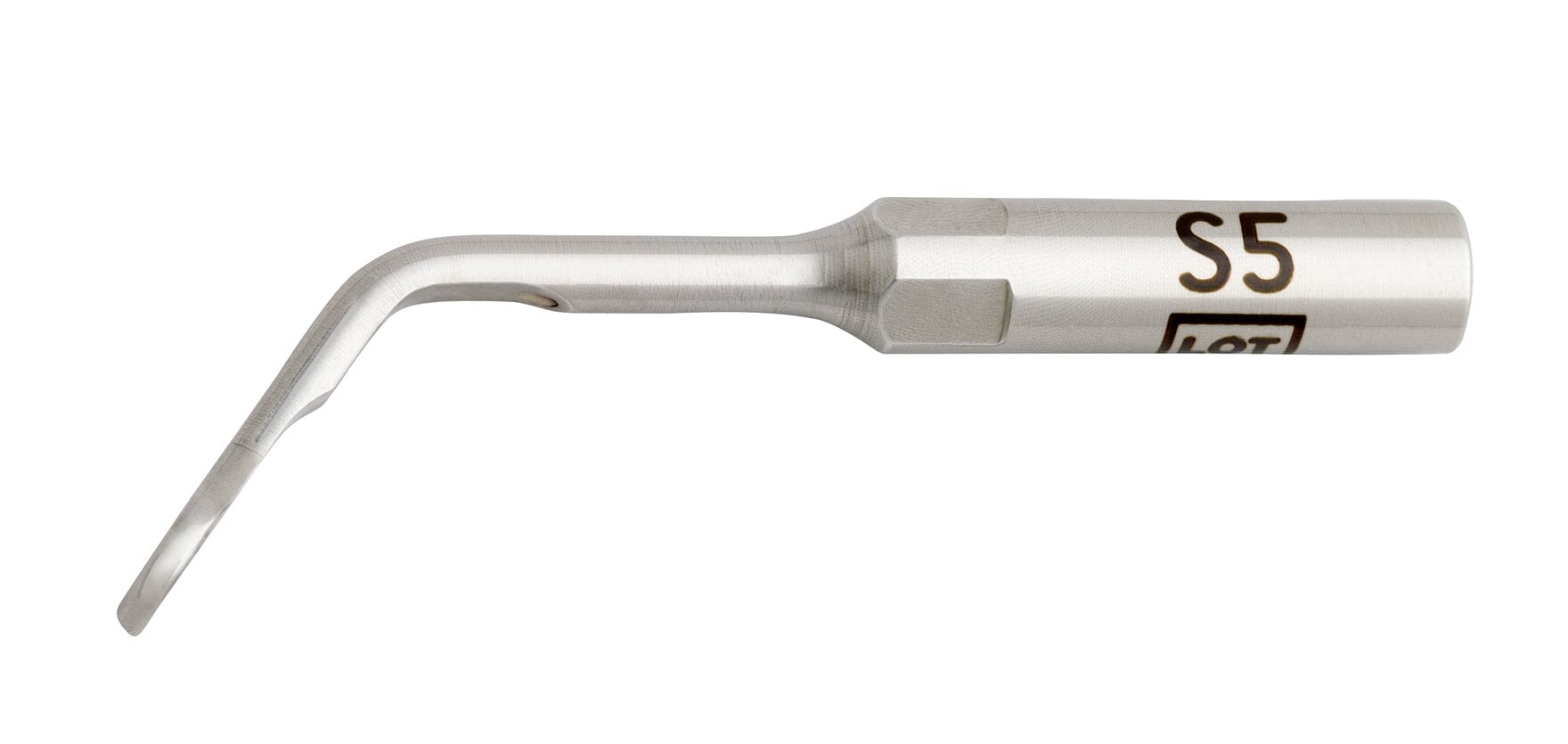

S5 Tip for Piezomed (REF 05542800)
Extended blunt paddle for deeper membrane elevation.

• Round blunt working edge

• 10 mm working depth

• 135° angulation

• Manufacturer-recommended settings: 65% power / 90% irrigation
  Designed for atraumatic membrane elevation in deeper or more posterior regions. As with S4, the interior surface should remain in contact with bone at all times for controlled elevation.

Typical Clinical Workflow

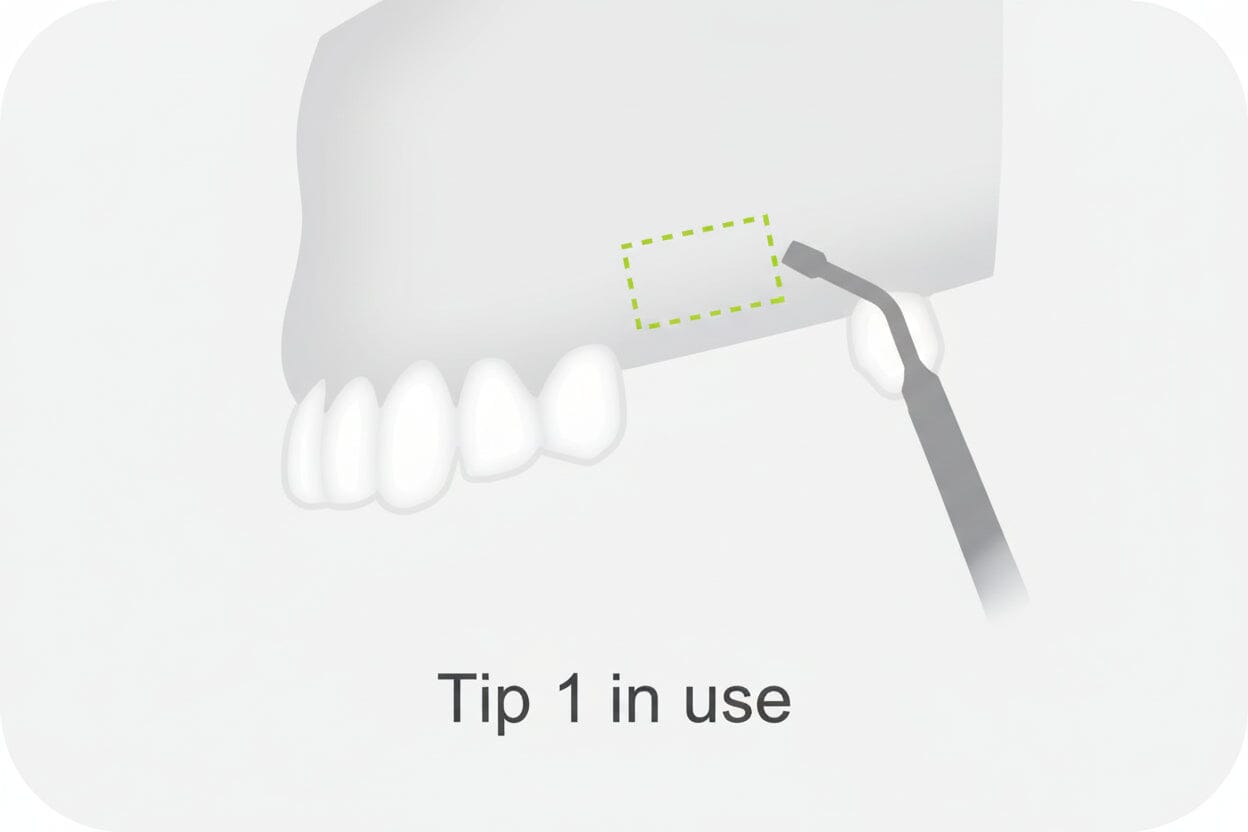

1. S1 or S2 – Lateral bony window preparation

2. S3 – Initial Schneiderian membrane detachment

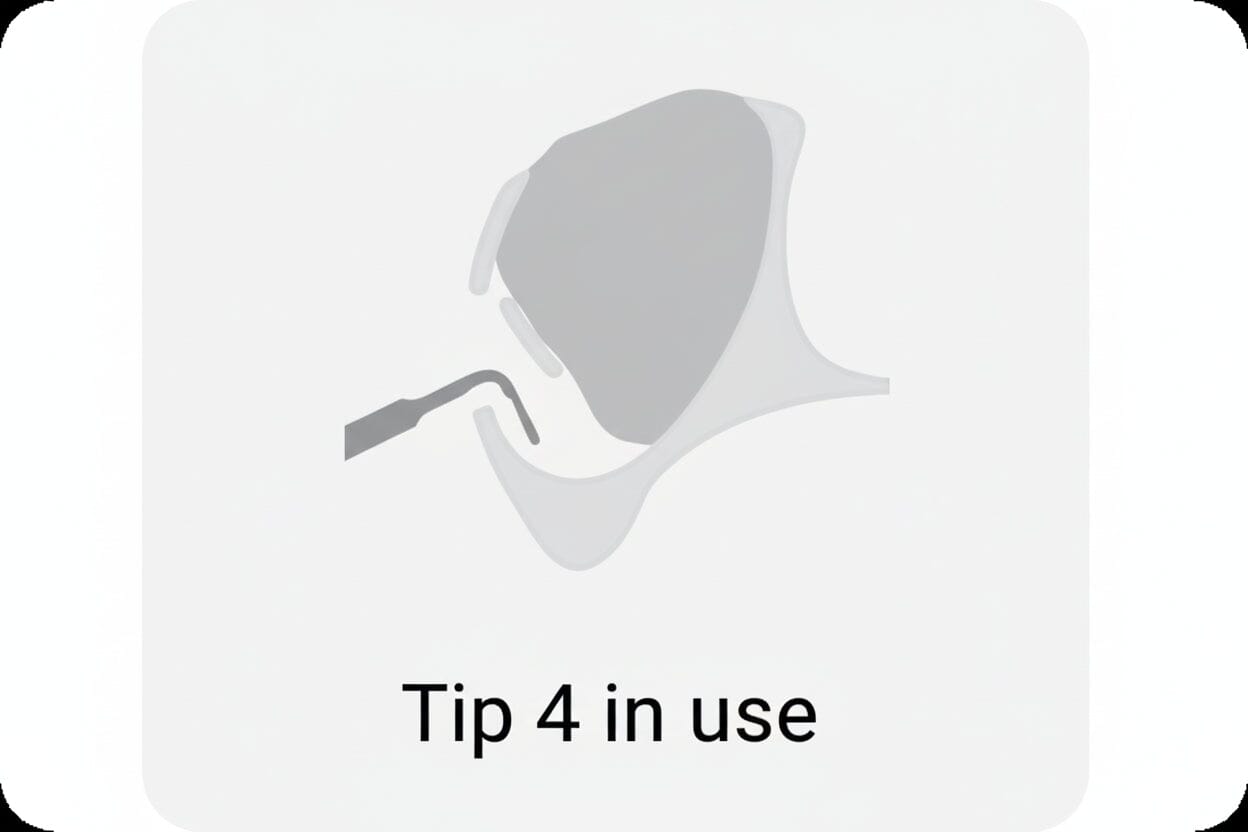

3. S4 or S5 – Progressive membrane elevation based on access depth and angulation

System Compatibility

• Designed exclusively for the W&H Piezomed SA-320 Piezosurgery System

• Automatic instrument recognition and power-class assignment

Why Clinicians Choose Piezomed for Lateral Sinus Lifts

• Precise ultrasonic bone cutting with soft-tissue selectivity

• Atraumatic membrane handling with blunt, geometry-optimized tips

• Protective coolant delivery during membrane elevation

• Manufacturer-validated power and irrigation settings

• Predictable performance across all stages of lateral sinus augmentation
