Description
Piezomed implant preparation and crestal sinus lift tips from W&H Dentalwerk are designed to support precise pilot preparation, gradual implant bed expansion, and controlled crestal sinus lift procedures.
Depth-marked, diamond-coated piezo instruments enable accurate axial alignment and stepwise preparation of the implant site, improving tactile control and procedural precision. In addition to implant site preparation, dedicated tips with internal coolant supply are used to prepare the sinus floor and elevate the Schneiderian membrane via a crestal approach.
When inserted into the Piezomed handpiece, each instrument is automatically recognized and assigned to the appropriate power class, ensuring consistent performance and optimized working conditions.
Indications
Pilot preparation for implant placement
Gradual implant bed preparation and expansion
Anterior and posterior implant site preparation
Crestal sinus lift procedures
Schneiderian membrane elevation via crestal approach
Tip Selection and Clinical Roles
Pilot Preparation

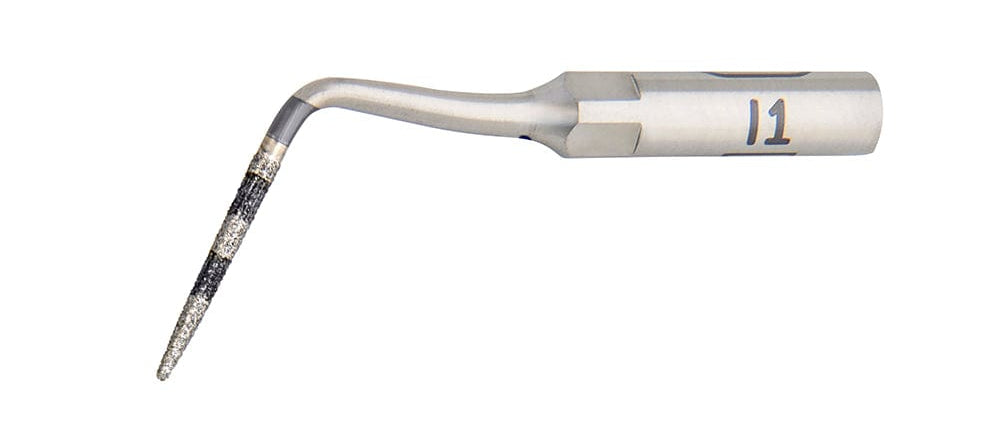

I1 Tip for Piezomed (REF 07786800) Diamond-coated instrument with depth marks for pilot preparation with correct axial alignment. Used to establish the initial implant trajectory and depth control prior to site expansion.
Gradual Implant Bed Preparation (2–3 mm)
These instruments are used for controlled, stepwise preparation of the implant bed up to the desired depth.

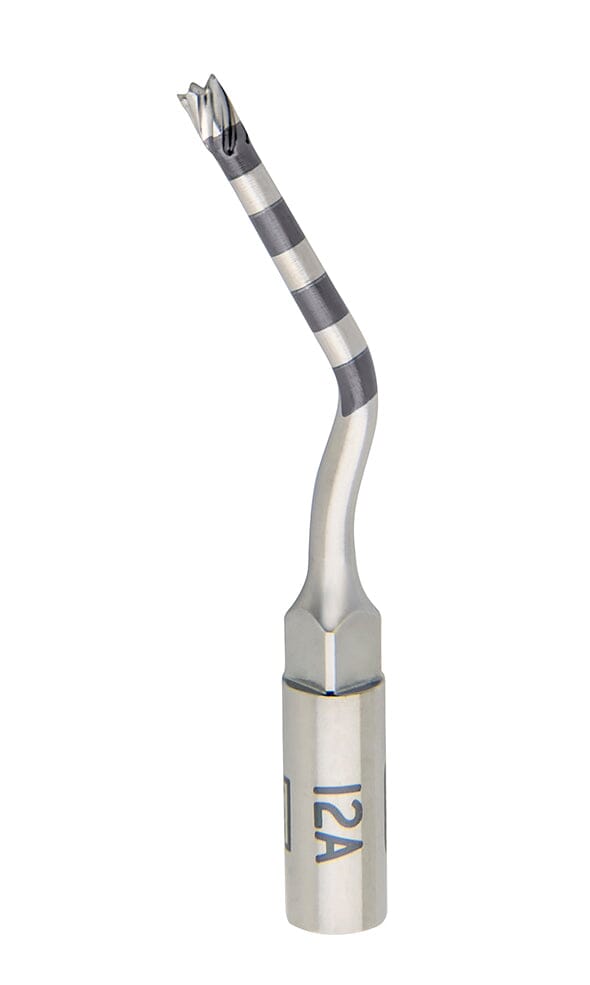

I2A Tip for Piezomed (REF 07797800) 2 mm diameter instrument for gradual implant bed preparation in the anterior region.

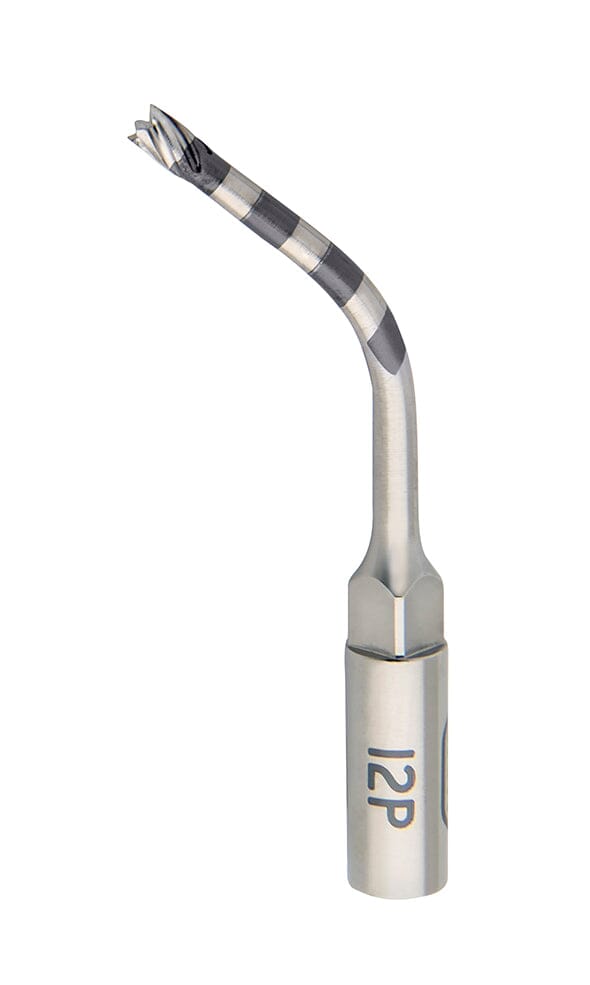

I2P Tip for Piezomed (REF 07788800) 2 mm diameter instrument for gradual implant bed preparation in the posterior region.

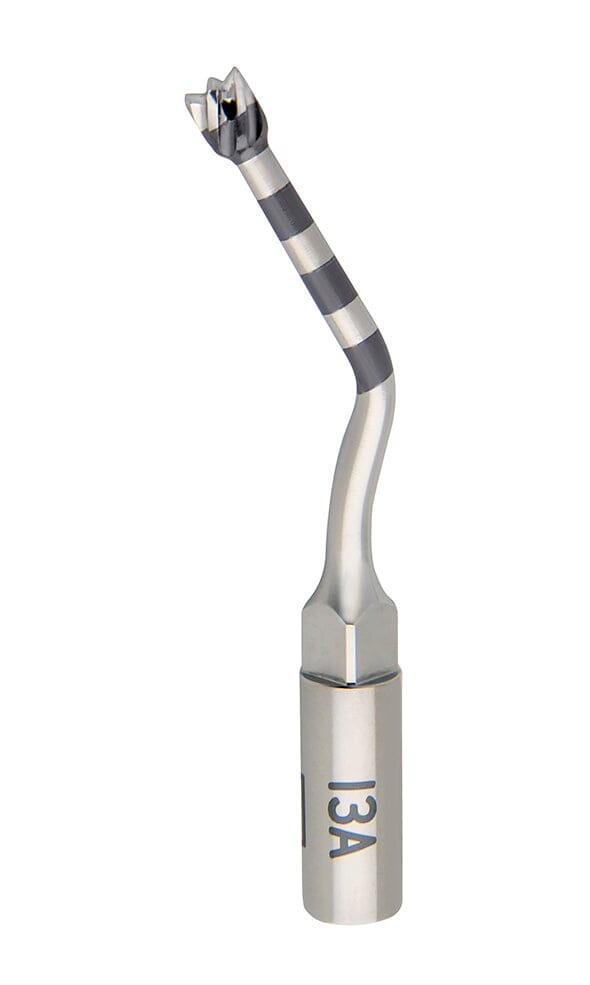

I3A Tip for Piezomed (REF 07885600) 3 mm diameter instrument for continued implant bed preparation in the anterior region.

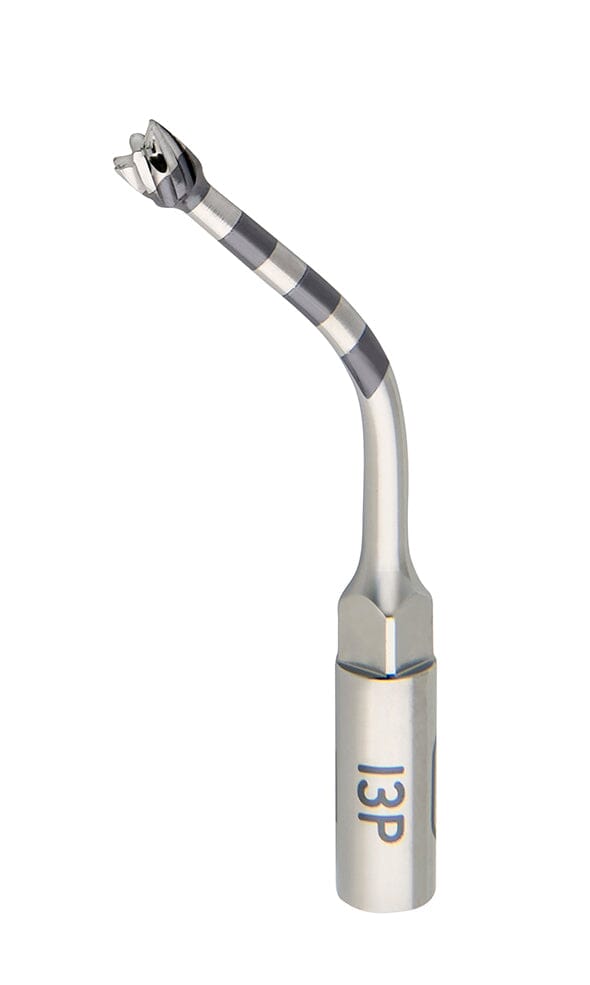

I3P Tip for Piezomed (REF 07887000) 3 mm diameter instrument for continued implant bed preparation in the posterior region.
Implant Bed Preparation (4 mm)

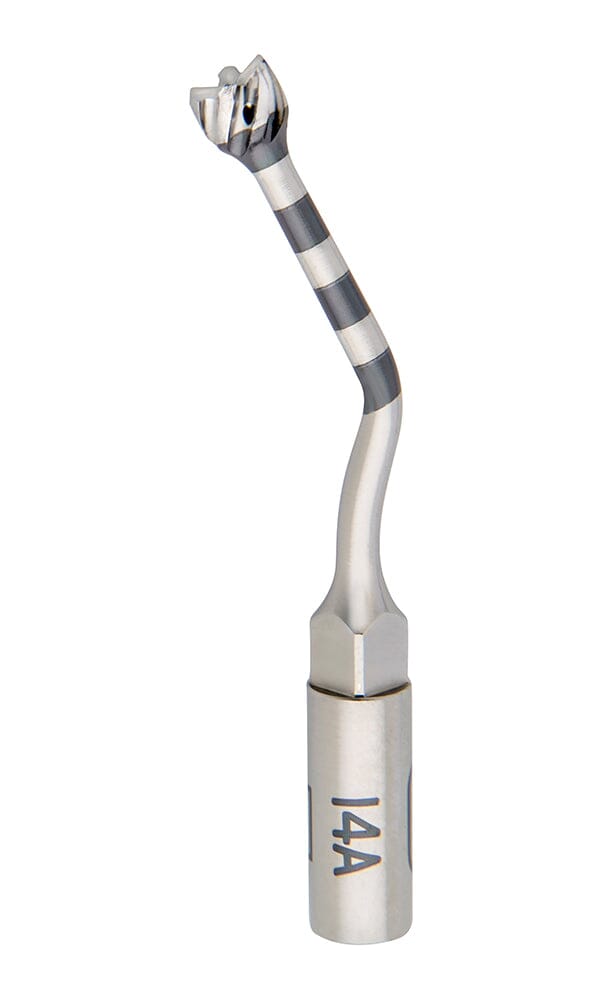

I4A Tip for Piezomed (REF 07889500) 4 mm diameter instrument for final implant bed preparation to the desired depth in the anterior region.

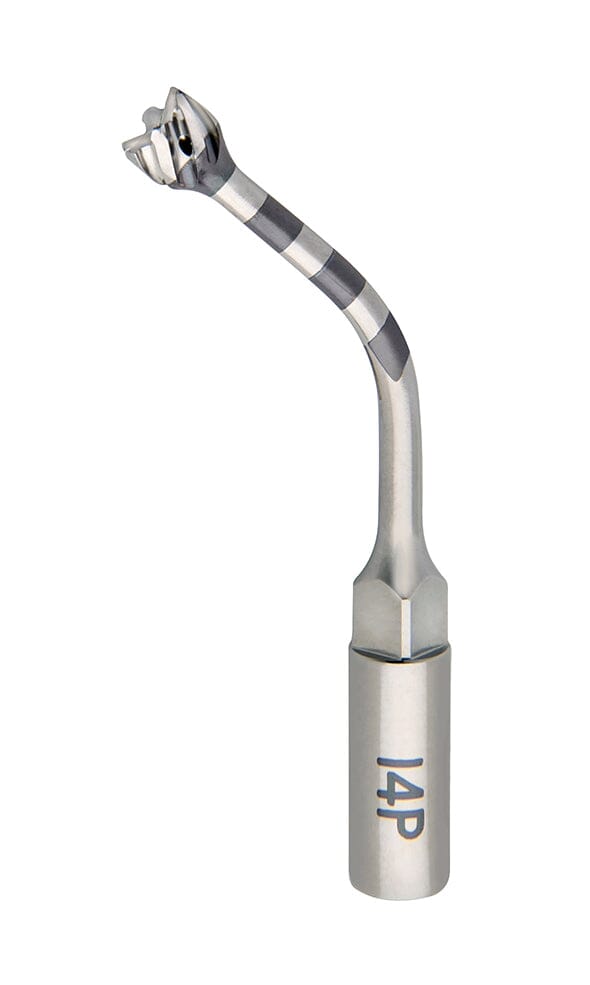

I4P Tip for Piezomed (REF 07889400) 4 mm diameter instrument for final implant bed preparation to the desired depth in the posterior region.
Crestal Sinus Lift & Cortical Expansion

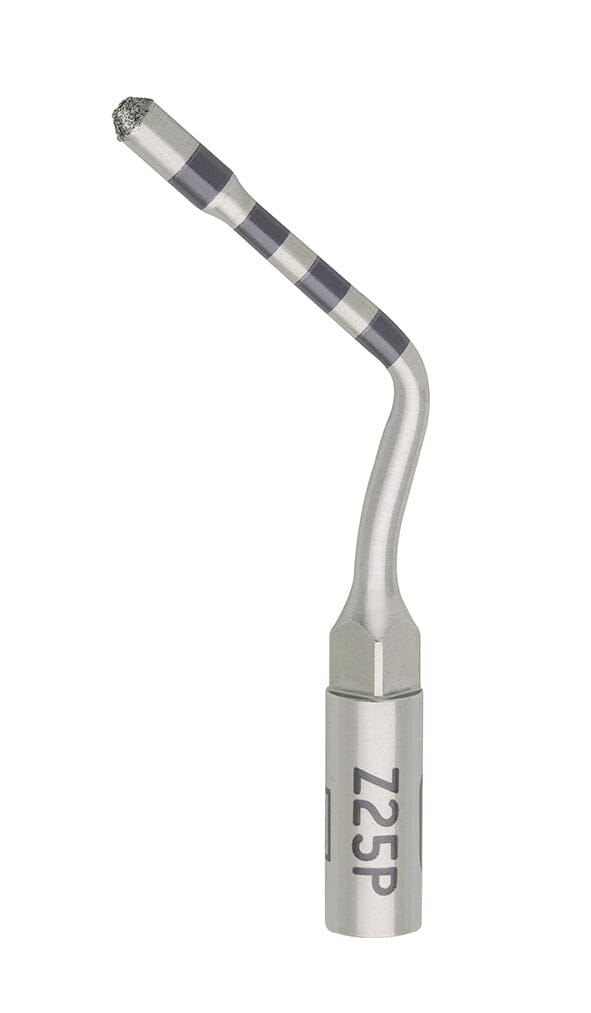

Z25P Tip for Piezomed (REF 07785600) Diamond-coated instrument for expansion of the pilot hole up to 2.5 mm in the cortical area. Features a diamond-coated front face with internal coolant supply for preparation of the sinus floor and atraumatic elevation of the Schneiderian membrane using a cooling medium.

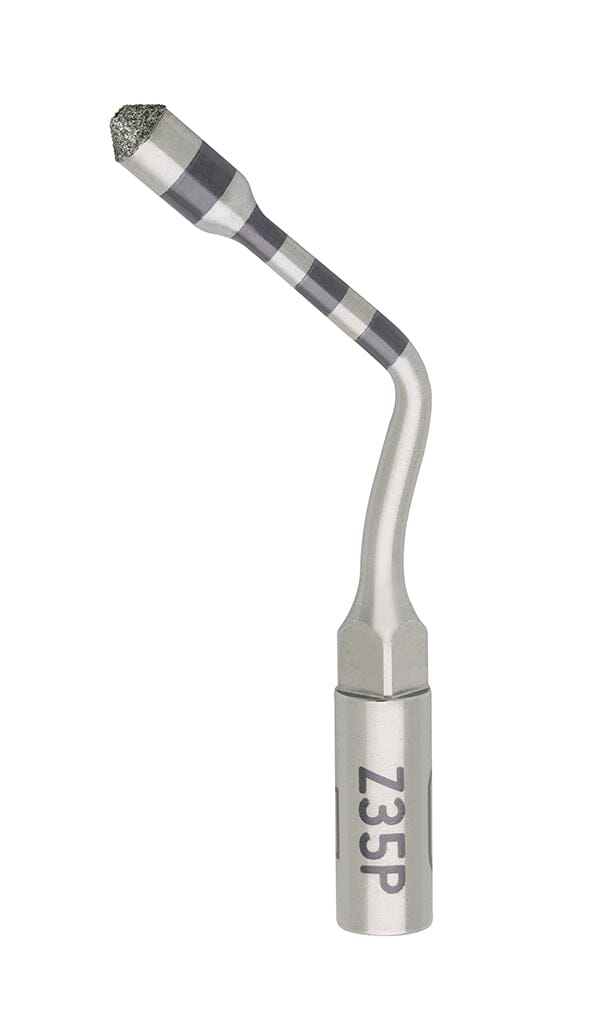

Z35P Tip for Piezomed (REF 07980600) Diamond-coated instrument for expansion of the pilot hole up to 3.5 mm in the cortical area. Also diamond-coated on the front face with internal coolant supply, enabling controlled preparation of the sinus base and crestal sinus membrane elevation.
