Product Overview
Piezomed bone surgery tips from W&H Dentalwerk are engineered for precise, atraumatic bone cutting, harvesting, contouring, and ridge manipulation in oral and maxillofacial surgery.
Piezoelectric ultrasound technology enables controlled micromovements that selectively cut mineralized tissue while helping preserve surrounding soft tissue. Compared to conventional rotary or oscillating instruments, this allows bone harvesting and shaping with minimal bone loss and improved tactile control.
When inserted into the Piezomed handpiece, each tip is automatically recognized and assigned to the correct power class, improving safety, reducing overload, and extending instrument service life.
Indications
Bone block harvesting
Horizontal and vertical osteotomies
Alveolar ridge splitting and expansion
Bone surface modeling and contouring
Bone chip collection
Root separation and apical resection
Tip Selection and Clinical Roles
Bone Cutting & Osteotomy

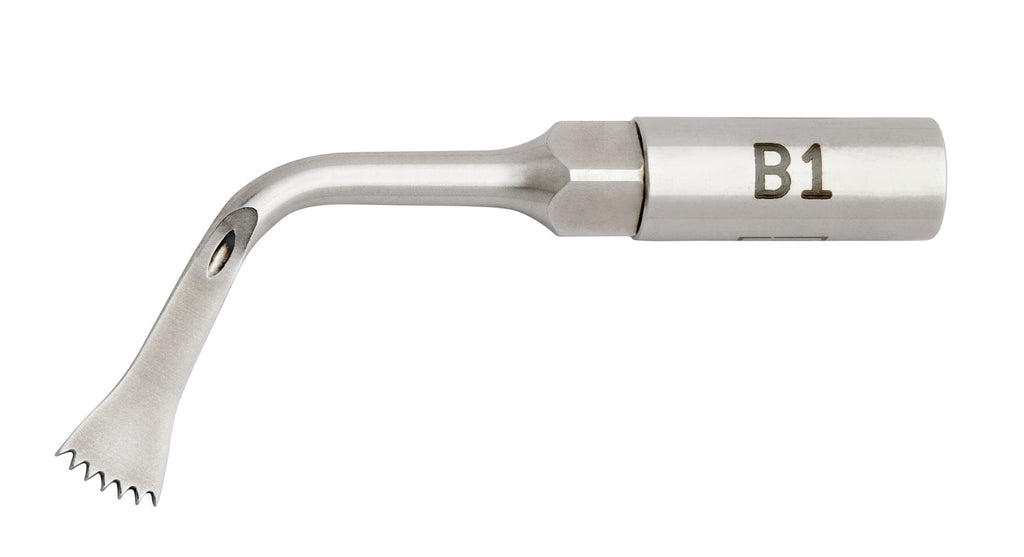

B1 Tip for Piezomed (REF 05530100) Fan-shaped, straight fine-toothed saw for precise bone cutting with minimal bone loss.
0.5 mm tip thickness
8 mm cutting depth
Fine toothing
Manufacturer-recommended settings: 100% power / 100% irrigation Used for bone cutting, bone block harvesting, and preparation for bone spreading. Efficient cutting is achieved with slow forward-and-back movements using minimal pressure.

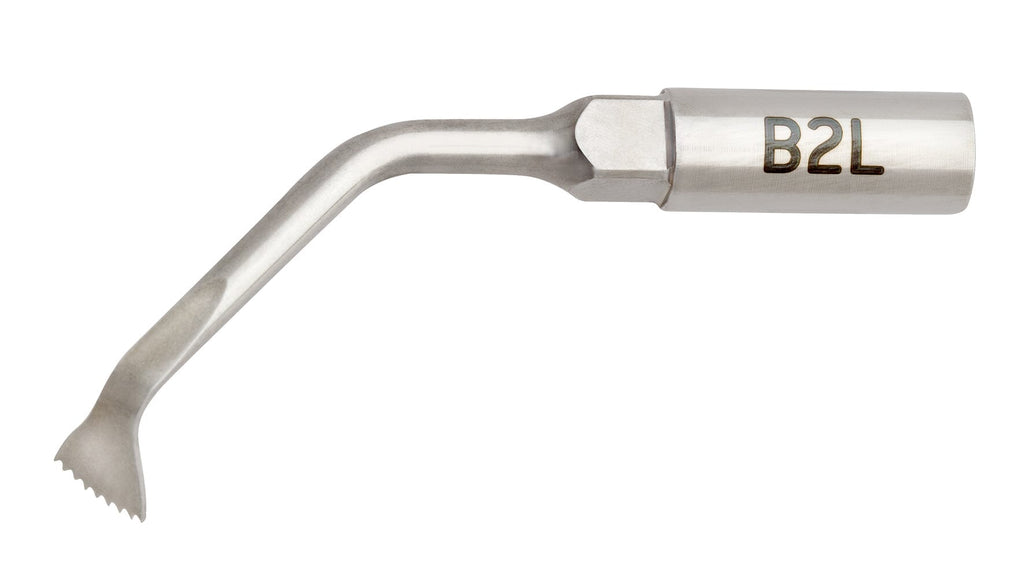

B2L Tip for Piezomed (REF 05544400) Left-curved fine-toothed instrument for horizontal bone cuts in hard-to-reach areas.
0.4 mm tip thickness
3.8 mm cutting depth
Cutting surface angled to the left
Manufacturer-recommended settings: 90% power / 100% irrigation Designed for horizontal incisions during bone block harvesting where access is limited.

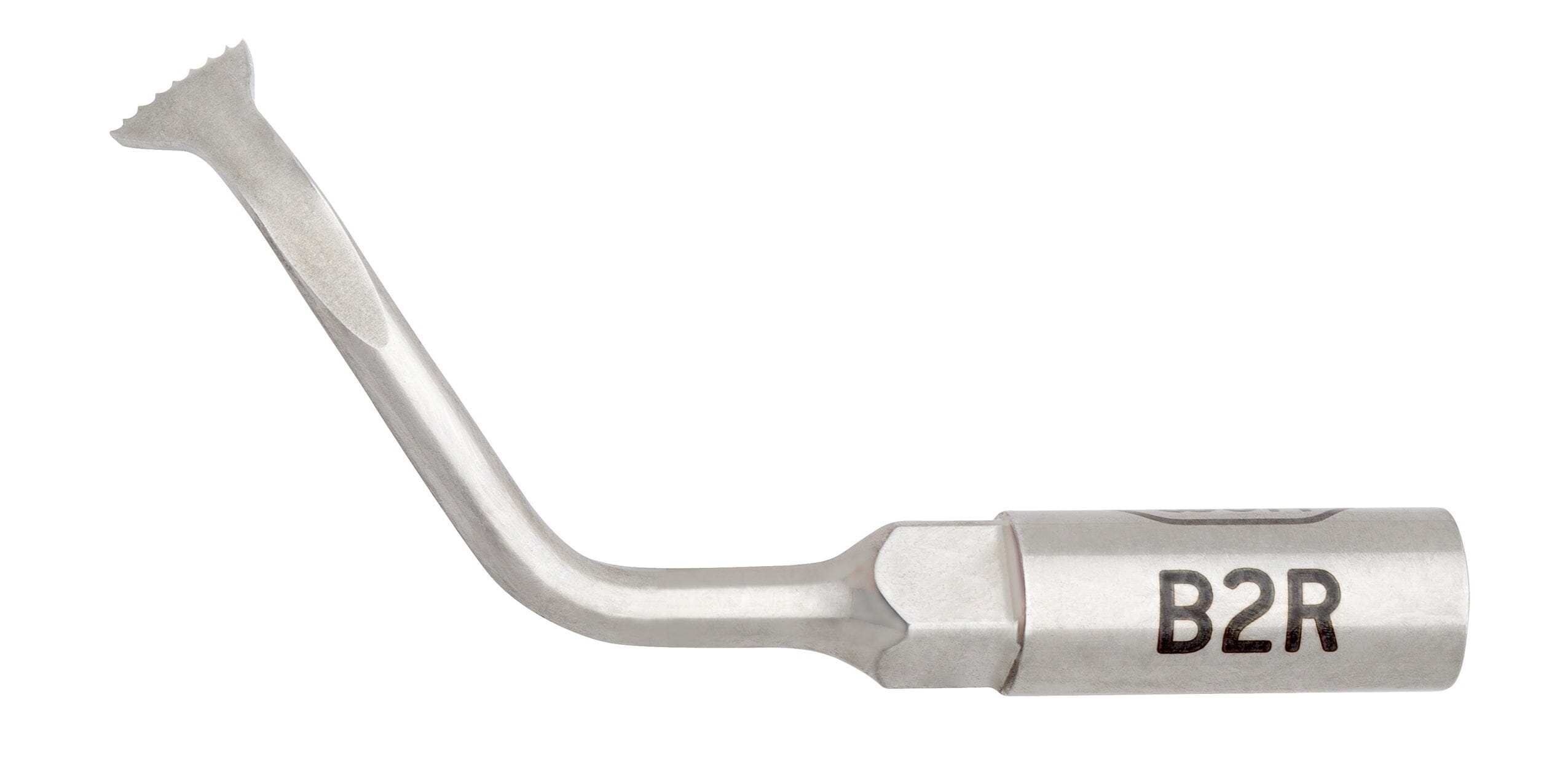

B2R Tip for Piezomed (REF 06958600) Right-curved version of the B2L with identical cutting geometry.
0.4 mm tip thickness
3.8 mm cutting depth
Cutting surface angled to the right
Manufacturer-recommended settings: 90% power / 100% irrigation Provides mirrored access for ergonomic cutting depending on surgical approach.

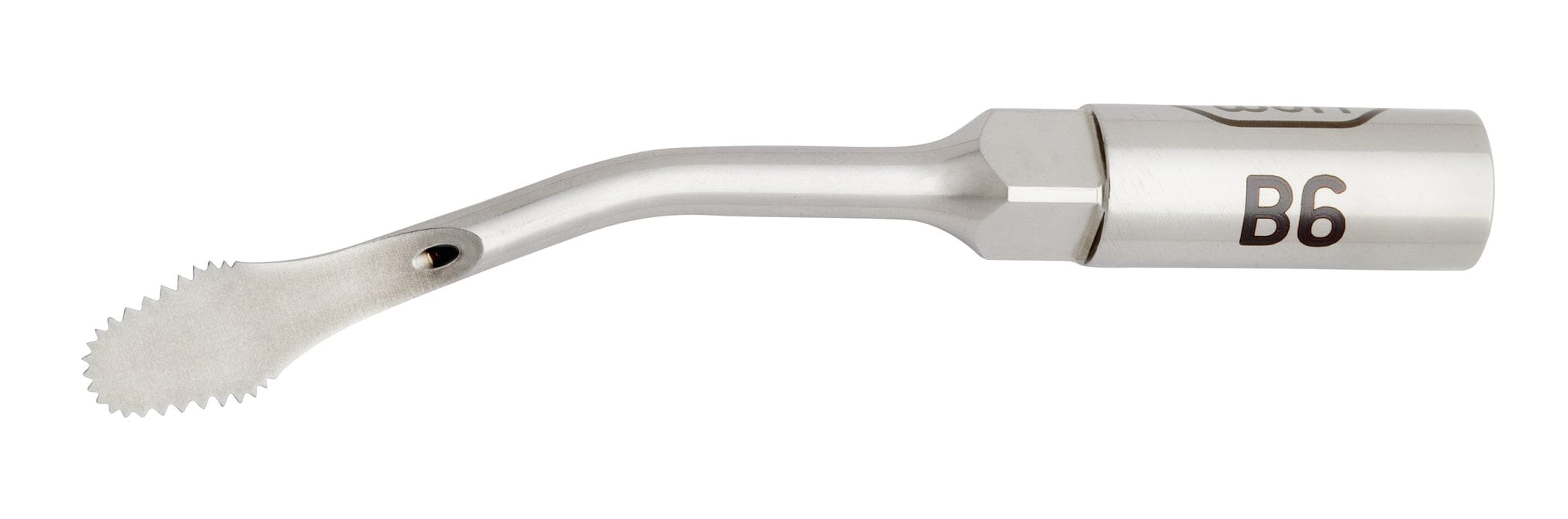

B6 Tip for Piezomed (REF 07022500) Extremely thin blade for ultra-fine, high-speed cutting.
0.25 mm tip thickness
8 mm cutting depth
Extremely fine toothing around a rounded cutting tip
Manufacturer-recommended settings: 100% power / 100% irrigation Indicated for fine incisions, bone block harvesting, tooth separation, apical resection, bone splitting, and cutting enamel.

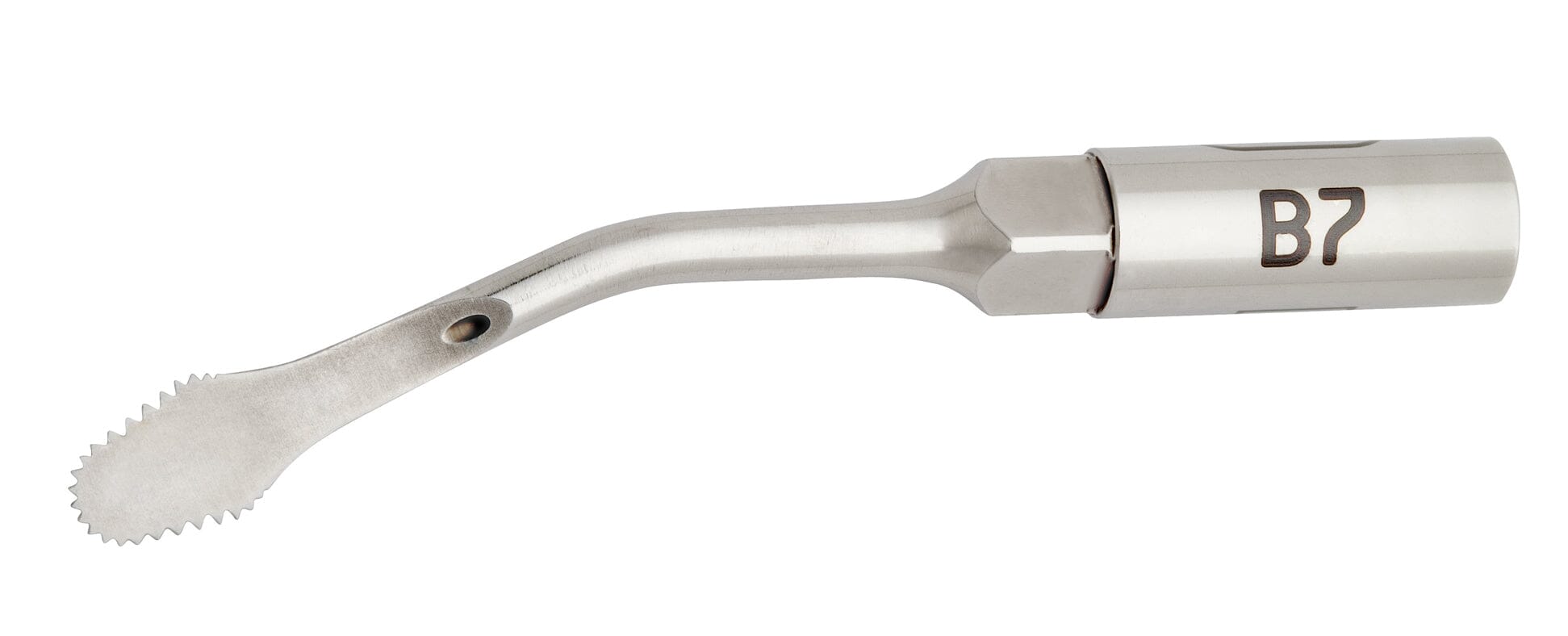

B7 Tip for Piezomed (REF 07022600) Ultra-thin blade with extended cutting depth for demanding surgical applications.
0.3 mm tip thickness
10 mm cutting depth
Extremely fine toothing around a rounded cutting tip
Manufacturer-recommended settings: 100% power / 100% irrigation Offers similar indications to B6 with increased depth for deeper or extended cuts.
Bone Modeling, Splitting & Harvesting Support

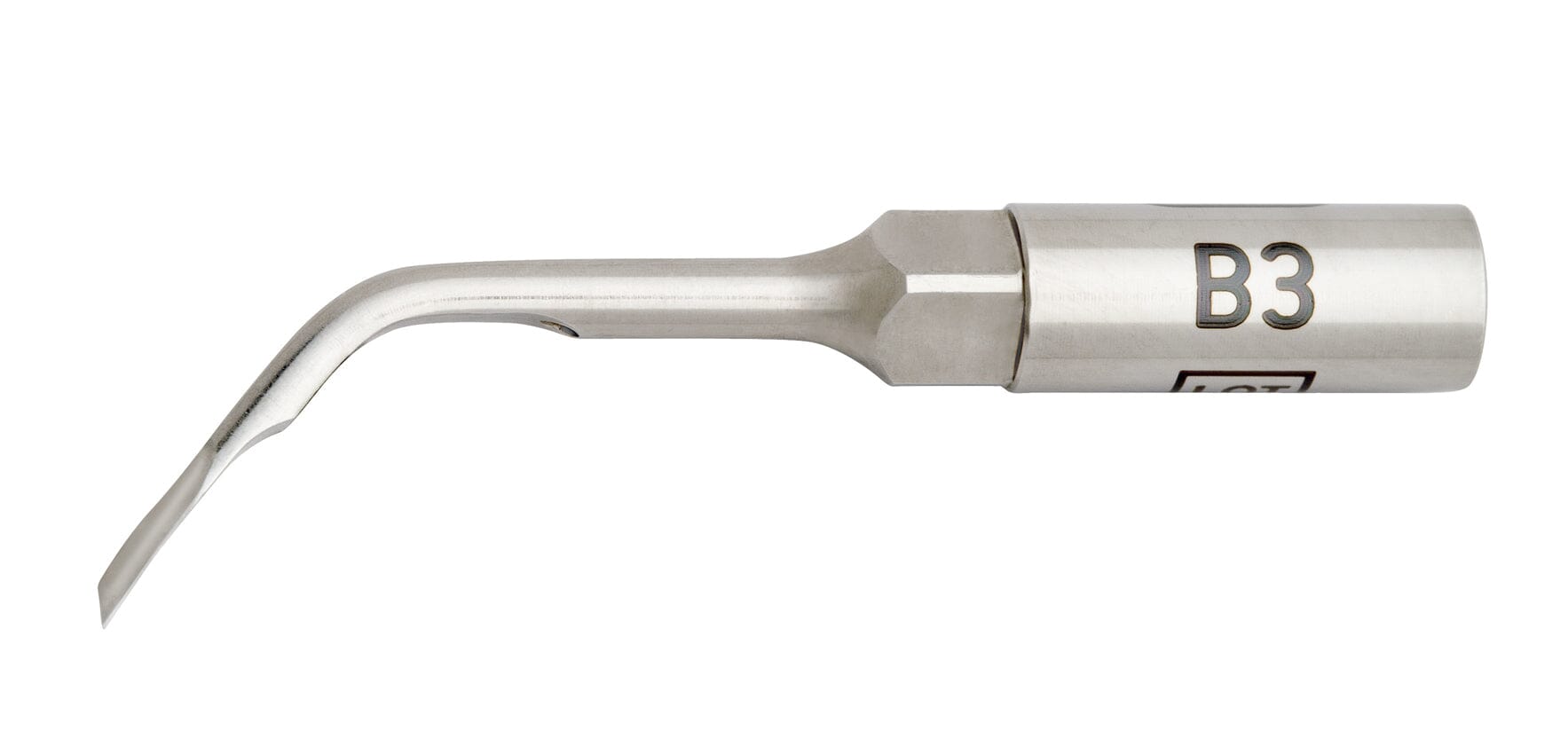

B3 Tip for Piezomed (REF 05542100) Rounded, sharp scraper for controlled bone modeling and harvesting.
4 mm wide rounded working surface
Manufacturer-recommended settings: 70% power / 10% irrigation Low irrigation helps prevent bone chips from being rinsed away during collection. Used for scraping, collecting, modeling bone, and removing infected tissue.

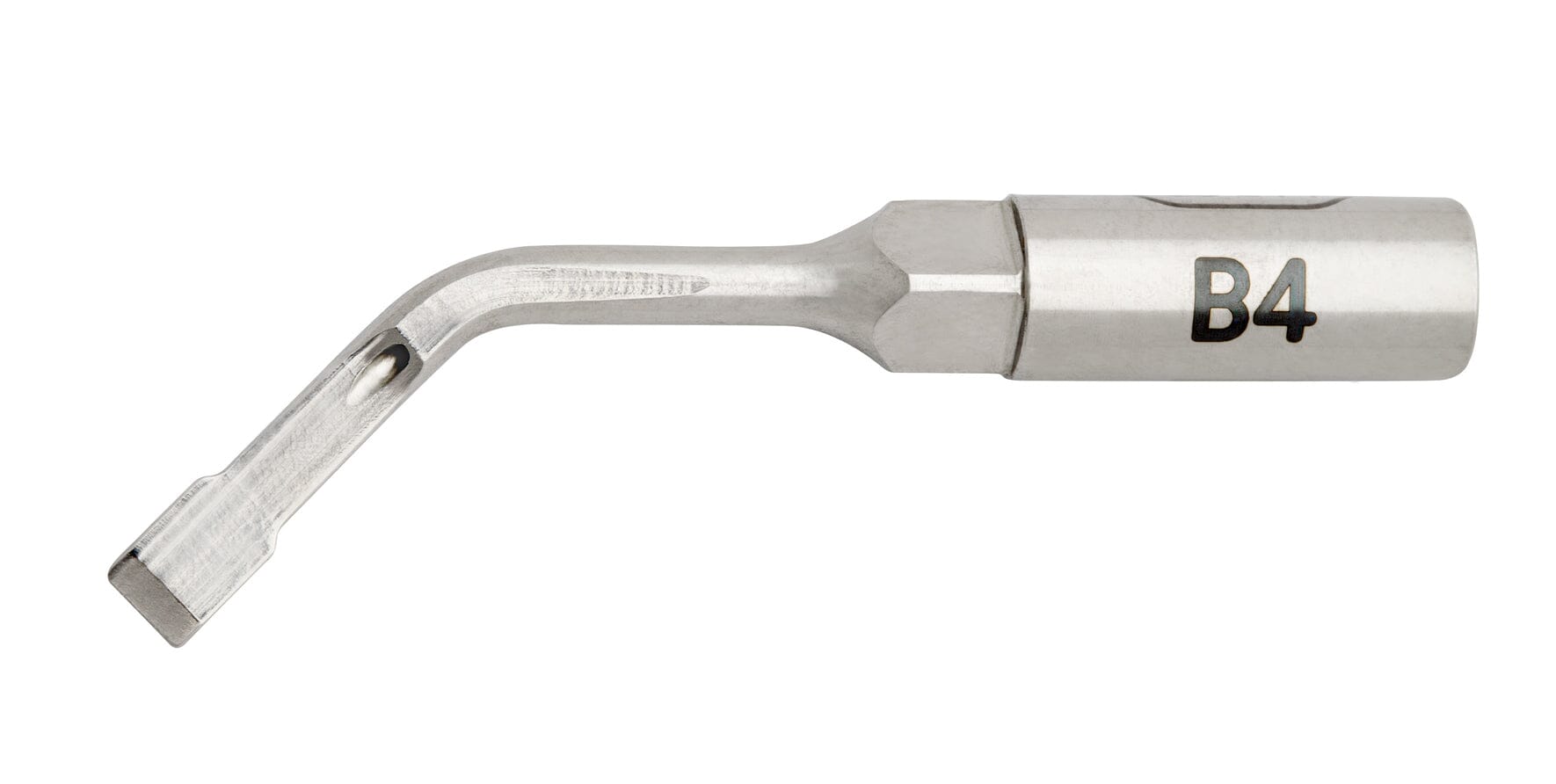

B4 Tip for Piezomed (REF 05543800) Sharp vertical chisel for controlled ridge splitting and corticotomy procedures.
2.8 mm sharp cutting edge
Manufacturer-recommended settings: 100% power / 100% irrigation Best results are achieved with constant motion to ensure adequate cooling during the split.

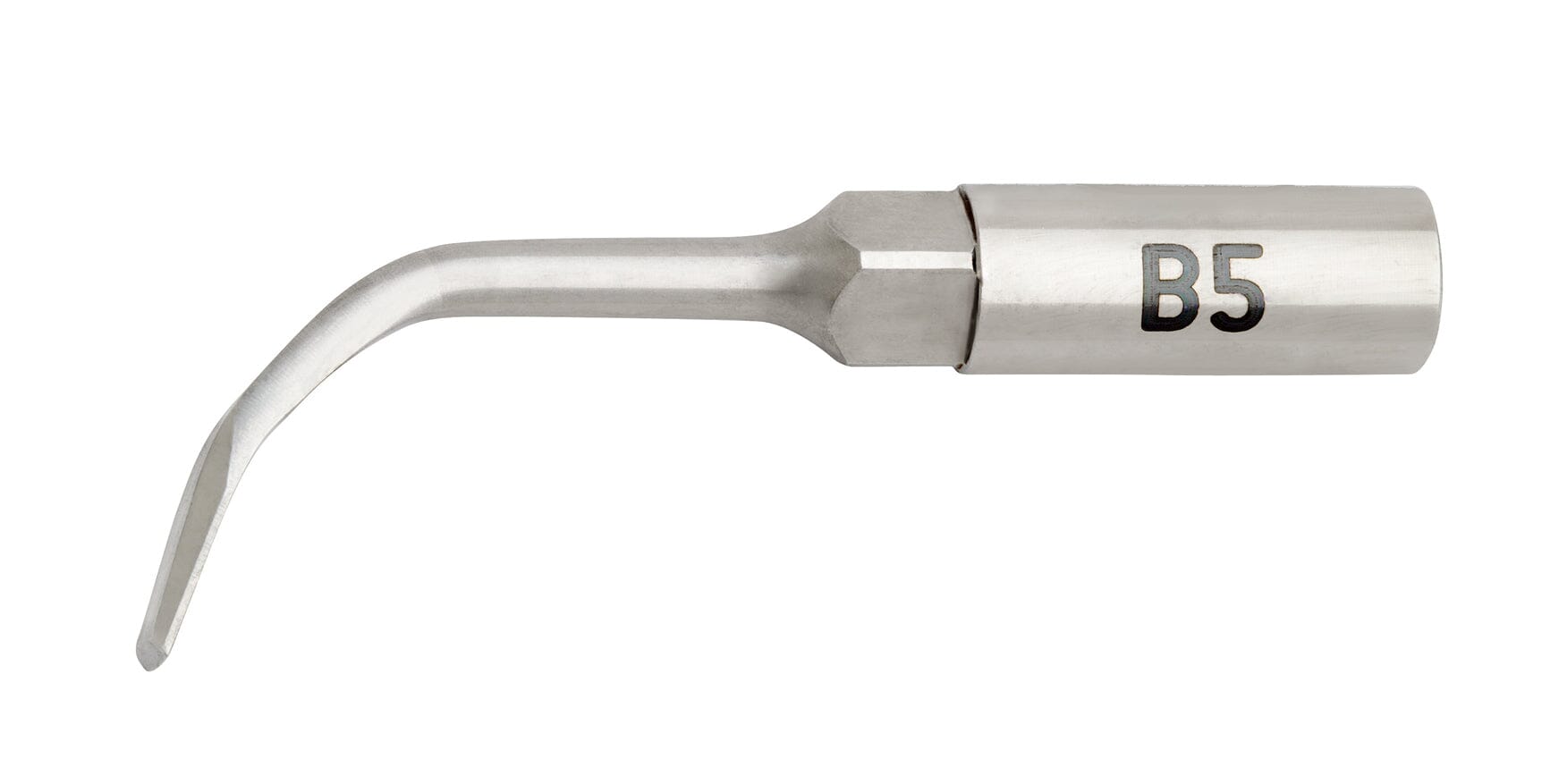

B5 Tip for Piezomed (REF 05534500) Square-edged sharp scraper with a slightly more acute working angle than B3.
3.2 mm wide squared scraping surface
Manufacturer-recommended settings: 70% power / 10% irrigation Used for collecting, scraping, modeling bone, detaching bone flaps, and preparing bone for splitting. Low irrigation supports effective bone chip collection.
Clinical Workflow (Typical)
B1 / B2L / B2R / B6 / B7 – Osteotomy, bone cutting, bone block harvesting
B4 – Alveolar ridge splitting
B3 / B5 – Bone contouring and bone chip collection
System Compatibility
Designed exclusively for the W&H Piezomed SA-320 Piezosurgery System
Automatic instrument recognition and power-class assignment
Why Clinicians Choose Piezomed for Bone Surgery
Precise ultrasonic cutting with minimal bone loss
Atraumatic alternative to traditional bone saws
Predictable performance in confined surgical sites
Manufacturer-validated power and irrigation control
Consistent results across advanced surgical indications
