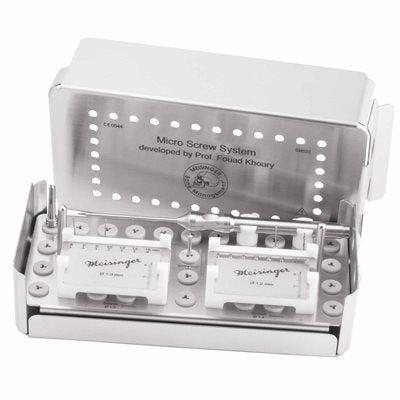

The Meisinger Khouri Micro Bone Screw System is a stainless steel dental micro screw kit designed for cortical bone graft fixation and bone augmentation procedures, featuring labeled slots for screws and tools, and an open lid displaying the organized contents inside.

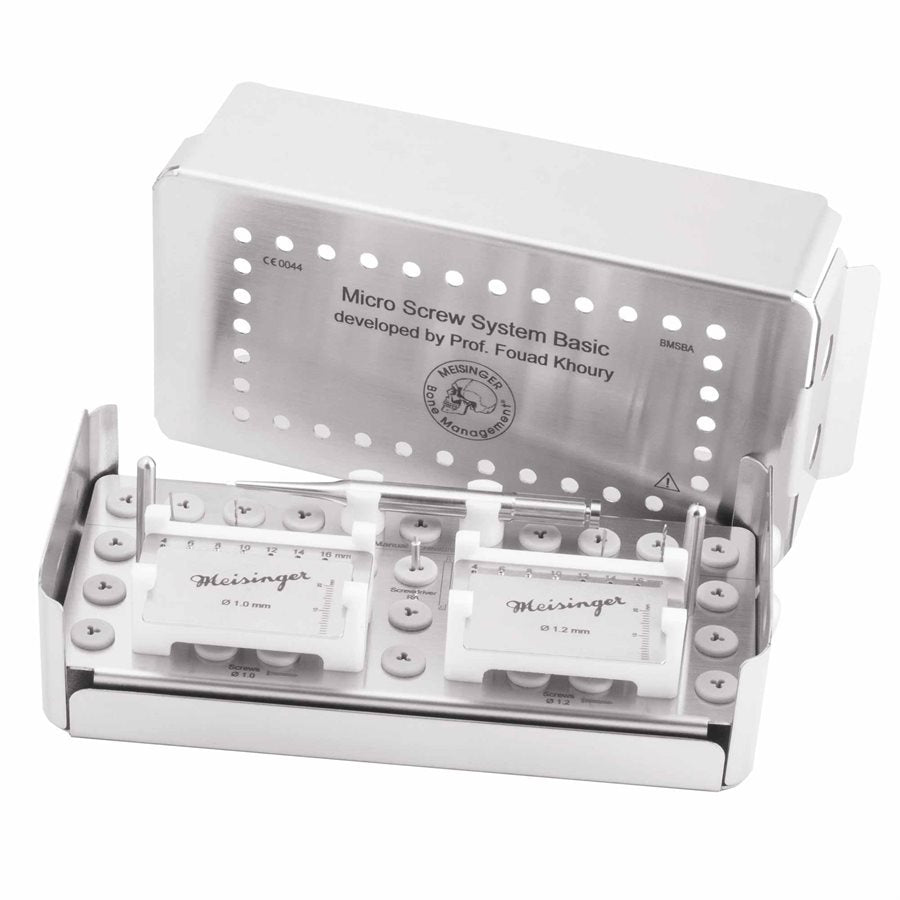

A silver metal box labeled "Meisinger Khouri Micro Bone Screw System" is open, revealing organized dental screws and tools from the Meisinger brand inside. The components, ideal for bone augmentation and cortical bone graft fixation procedures, are neatly arranged in slots within the container.
Roll over image to zoom in Click on image to zoom
The Meisinger Khouri Micro Bone Screw System is a stainless steel dental micro screw kit designed for cortical bone graft fixation and bone augmentation procedures, featuring labeled slots for screws and tools, and an open lid displaying the organized contents inside.A silver metal box labeled "Meisinger Khouri Micro Bone Screw System" is open, revealing organized dental screws and tools from the Meisinger brand inside. The components, ideal for bone augmentation and cortical bone graft fixation procedures, are neatly arranged in slots within the container.

Meisinger Khouri Micro Bone Screw System

MeisingerSKU: MEI-BMS00
Kit Configuration: Master
Price:
$1,729.99
Stock:
Re-stocking soon

Description

Meisinger Khouri Micro Bone Screw System

The Meisinger Khouri Micro Bone Screw System is a precision-engineered solution for the minimally invasive and safe fixation of cortical bone grafts. Developed in collaboration with Prof. Dr. Fouad Khoury, this system features osteosynthesis micro screws available in 1.0 mm and 1.2 mm diameters — providing exceptional stability despite their reduced profile. Manufactured from surgical stainless steel and Made in Germany, the system supports vertical, horizontal, and three-dimensional bone augmentation across a wide range of defect sizes.

  • Safe fixation and stabilization of cortical bone grafts
  • High stability despite reduced screw diameter
  • Surgical stainless steel construction
  • Compatible with the Carotta/Carrot Technique and Bone Shield Technique
  • Supports vertical, horizontal, and 3D bone augmentation
  • Made in Germany

Available Configurations

The system is available in two kit configurations — Master Kit and Basic Kit — both including initial burs, pilot burs, and screwdrivers. The Master Kit provides a broader screw assortment (including 4 mm and 14 mm lengths) and a full manual screwdriver set with claw attachment. The Basic Kit offers a focused mid-range screw selection with a compact screwdriver set.

Master Kit — Screw Contents

REF Qty Length Min. Ø Ext. Ø Head Ø
MSS10-040 ×2 4.0 mm 0.6 mm 1.0 mm 1.7 mm
MSS10-060 ×3 6.0 mm 0.6 mm 1.0 mm 1.7 mm
MSS10-080 ×3 8.0 mm 0.6 mm 1.0 mm 1.7 mm
MSS10-100 ×3 10.0 mm 0.6 mm 1.0 mm 1.7 mm
MSS10-120 ×2 12.0 mm 0.6 mm 1.0 mm 1.7 mm
MSS10-140 ×2 14.0 mm 0.6 mm 1.0 mm 1.7 mm
MSS12-040 ×1 4.0 mm 0.7 mm 1.2 mm 1.7 mm
MSS12-060 ×2 6.0 mm 0.7 mm 1.2 mm 1.7 mm
MSS12-080 ×2 8.0 mm 0.7 mm 1.2 mm 1.7 mm
MSS12-100 ×2 10.0 mm 0.7 mm 1.2 mm 1.7 mm
MSS12-120 ×1 12.0 mm 0.7 mm 1.2 mm 1.7 mm
MSS12-140 ×1 14.0 mm 0.7 mm 1.2 mm 1.7 mm

Basic Kit — Screw Contents

REF Qty Length Min. Ø Ext. Ø Head Ø
MSS10-060 ×3 6.0 mm 0.6 mm 1.0 mm 1.7 mm
MSS10-080 ×3 8.0 mm 0.6 mm 1.0 mm 1.7 mm
MSS10-100 ×3 10.0 mm 0.6 mm 1.0 mm 1.7 mm
MSS12-060 ×3 6.0 mm 0.7 mm 1.2 mm 1.7 mm
MSS12-080 ×3 8.0 mm 0.7 mm 1.2 mm 1.7 mm
MSS12-100 ×3 10.0 mm 0.7 mm 1.2 mm 1.7 mm

Common Instruments — Both Kits

Initial Burs

  • 202RF-008-RAXL — Stainless Steel, 14.0 mm, Ext. Ø 0.8 mm, RAXL
  • 202RF-010-RAXL — Stainless Steel, 14.0 mm, Ext. Ø 1.0 mm, RAXL

Pilot Burs

  • MSPB1-008-RA — Pilot Drill, 14.0 mm, Ext. Ø 0.8 mm, RA
  • MSPB2-010-RA — Pilot Drill, 14.0 mm, Ext. Ø 1.0 mm, RA

Screwdrivers

  • MSSDM — Manual, 141.2 mm
  • MSSDW-RA — RA, 24.0 mm

Exclusive to Master Kit

  • MSGSD — Claw for Manual Screwdriver, 33.0 mm, Ext. Ø 0.6 mm



About Prof. Dr. Fouad Khoury

Prof. Dr. Khoury received his dental education at St. Joseph University in Beirut, Lebanon, specializing in Oral Surgery at the Universities of Freiburg and Muenster, Germany. Since 1994, he has been a full-time professor at the Department of Oral & Maxillo-Facial Surgery at the University of Muenster and Chairman of the Privatklinik Schloss Schellenstein, Olsberg, Germany.
