Angled Tank & Blade Refill - B1 Bone Collector

The Angled Autogenous B1 Bone Collector – Tank & Blade Assembly is a high-precision, reusable component set designed for efficient autogenous bone harvesting in posterior and confined surgical sites. This product includes the collection tank and cutting blade assembly only and is intended for use with compatible Angled McBio handles (not compatible with Straight handles).

The angled geometry improves access and ergonomics where straight instruments are limited, while maintaining the same modular, cost-efficient design philosophy of the B1 system. The collection tank (outer sleeve) is manufactured from anodized titanium for durability and corrosion resistance, and the internal blade is produced from an extra-hard, special-grade surgical stainless steel for consistent cutting performance. The blade can be unscrewed from the tank assembly, allowing targeted replacement without discarding the handle.

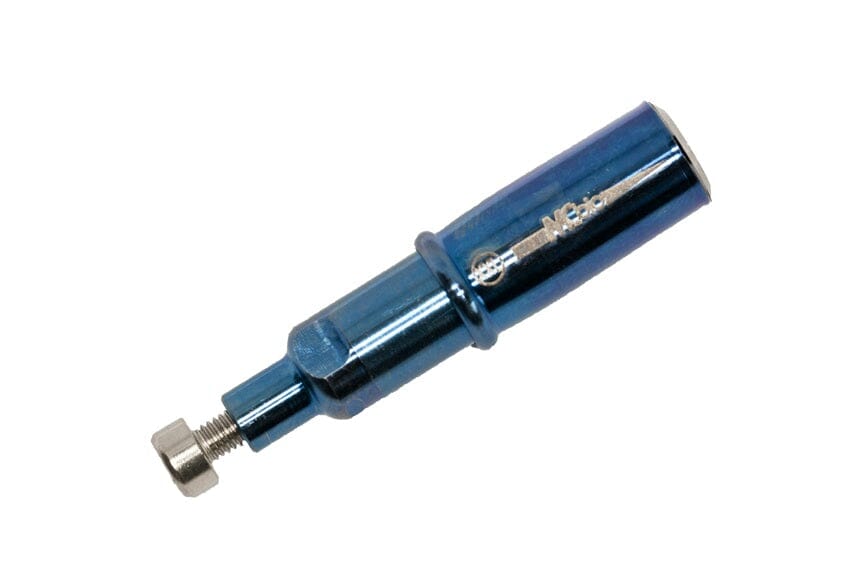

Important: Angled B1 tank & blade assemblies require a stop-screw mounted through the handle at the distal end. If the screw is lost, replacement screws are available through Xemax.

Key Features

• 360° Cutting Blade
  Razor-sharp circumferential cutting edges allow continuous harvesting by rotating the tank during use.

• Tank & Blade Assembly Only
  Supplied without handle; compatible with Angled McBio Surgical handles only.

• Modular, Reusable Design
  Blade and tank are replaceable wear components; the handle is designed for indefinite reuse.

• Premium Materials
  Anodized titanium collection tank paired with a hardened surgical stainless steel blade.

• Cost-Efficient Reuse
  Blade and tank can be cleaned and re-sterilized up to 10 cycles while maintaining full performance.

• Required Stop-Screw
  Angled assemblies use a stop-screw through the handle to secure the tank & blade; replacement screws available if lost.

Available Variants & Tank Capacity

All variants share identical geometry and function. Selection is based on tank diameter and bone graft collection capacity.

These published capacities allow clinicians to select the appropriate collector size based on anticipated graft volume and access constraints.

Technical Specifications

• Geometry: Angled (Posterior)

• Supplied Components: Collection tank + cutting blade (handle not included)

• Collection Tank Material: Anodized titanium

• Blade Material: Extra-hard special-grade surgical stainless steel

• Cutting Action: 360° circumferential blade

• Sterilization: Blade and tank autoclavable up to 10 cycles

• Compatibility: Angled McBio Surgical handles only

• Retention: Requires stop-screw through handle (sold separately if needed)

Clinical & Economic Benefits

• Improved access and control in posterior and restricted surgical sites

• Defined tank capacities for predictable autogenous graft volume planning

• Lower long-term costs through modular replacement of wear components rather than full instrument replacement
