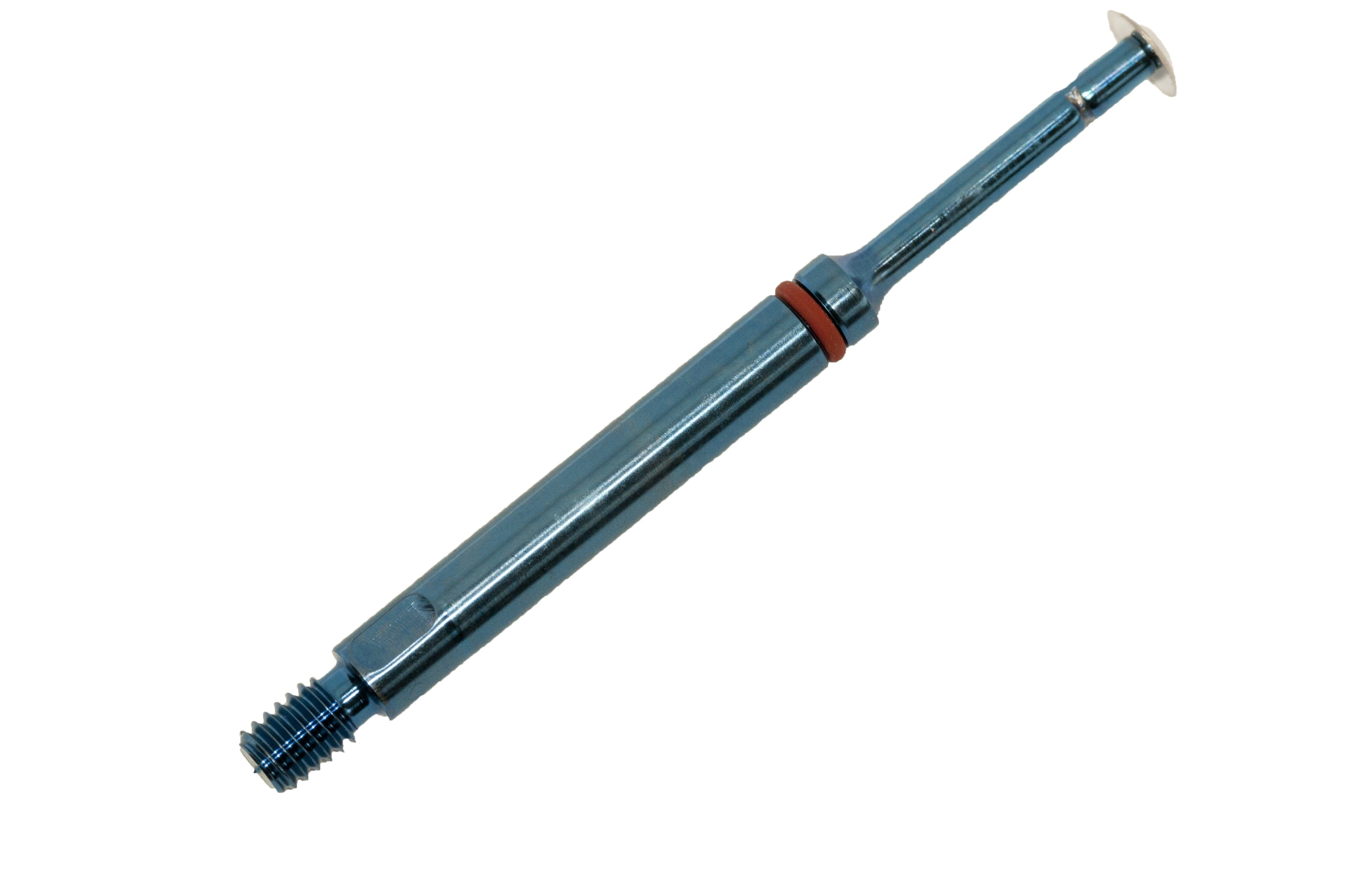

A close-up of a metal wall anchor with a threaded end, rubber gasket, and flat disc—shown on a white background—built with precision comparable to the McBio Straight Replacement Blade for STS Bone Collector (no Tank).

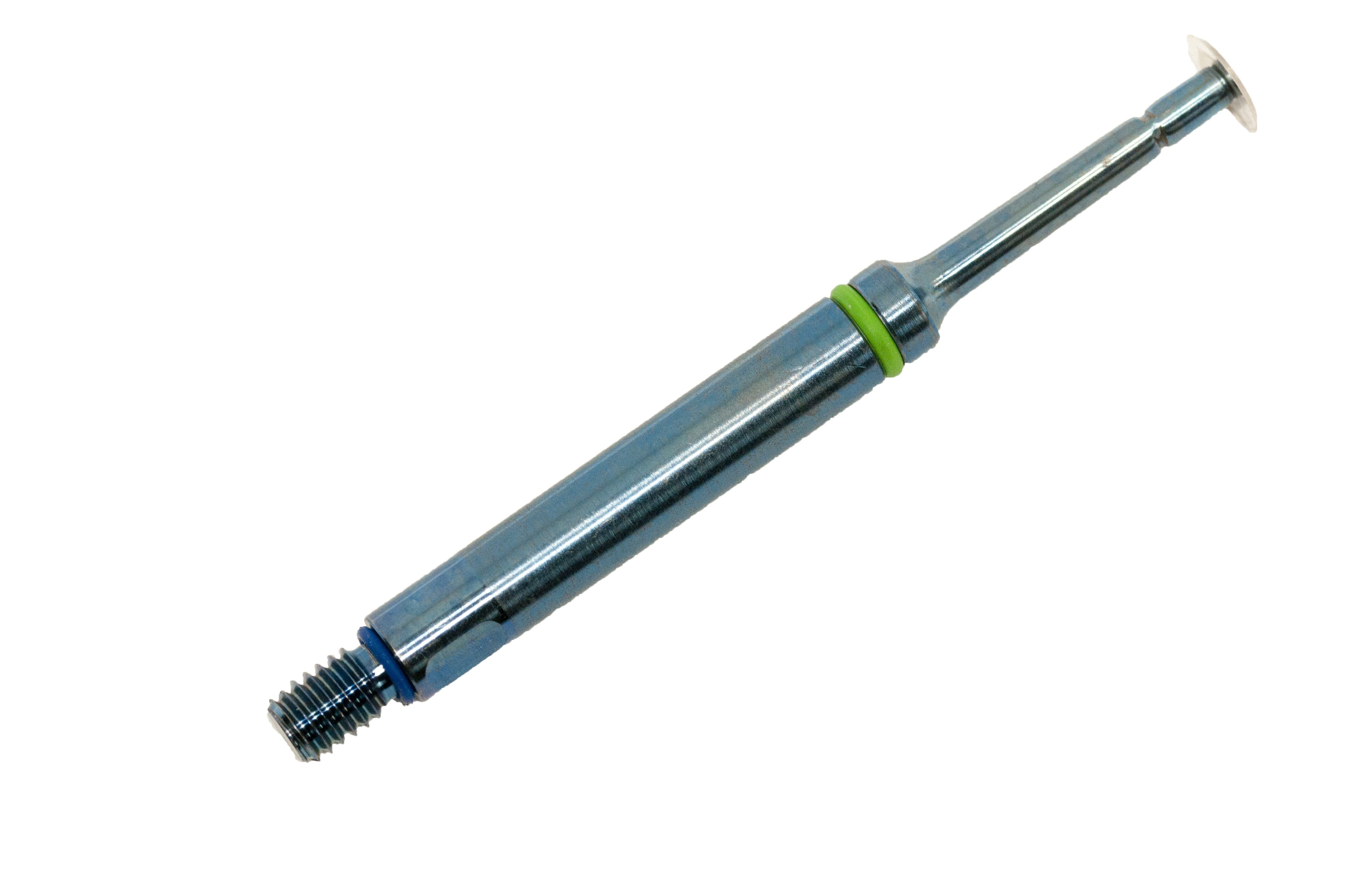

A close-up of the McBio Straight Replacement Blade for STS Bone Collector (no Tank), featuring threaded ends, a green ring at the middle, and a blue ring near the base, isolated on a white background.

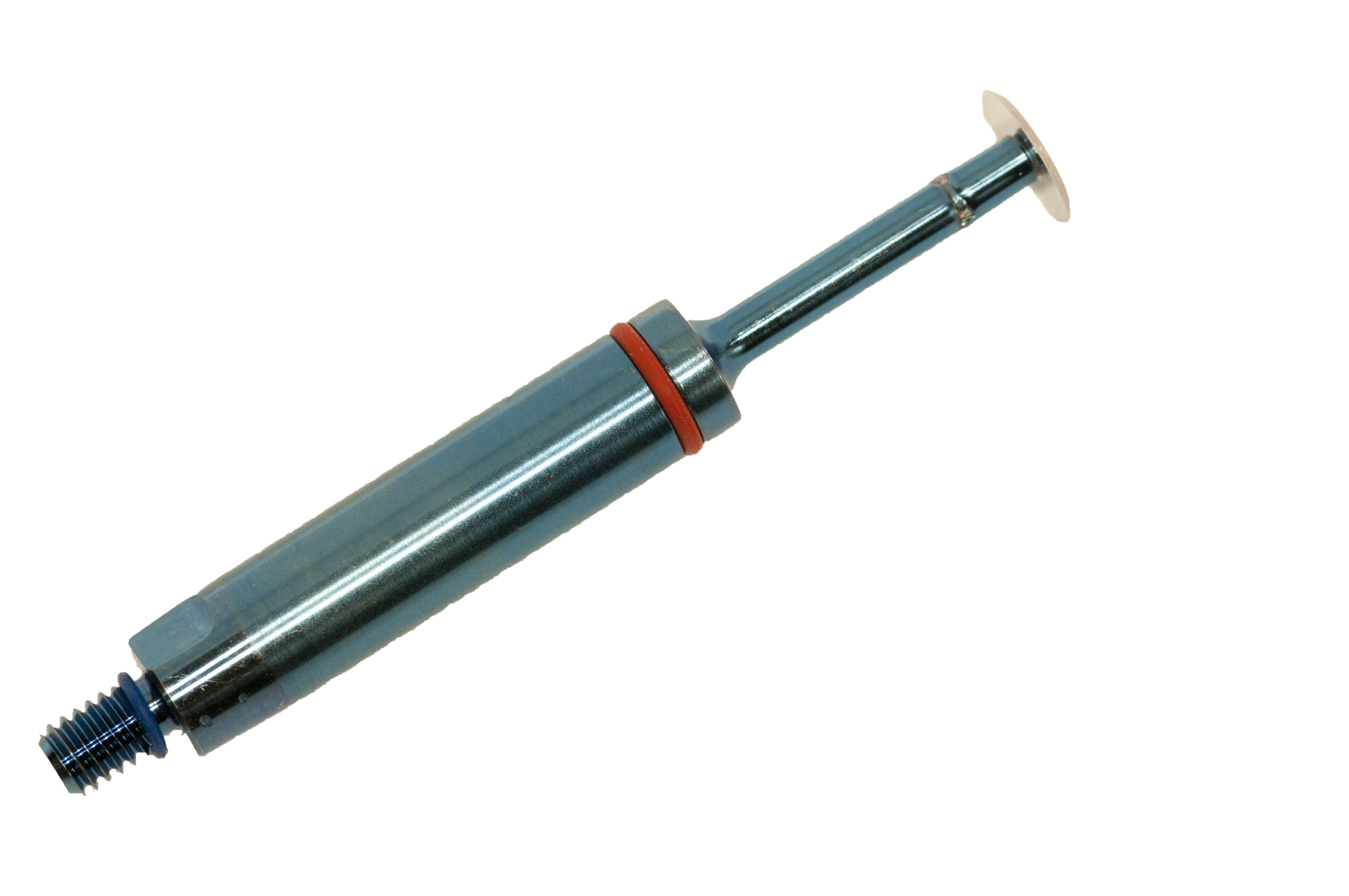

A close-up of a metal damper rod with a blue threaded end, red rubber ring, and white disc, isolated on white—showcasing precision like the McBio Straight Replacement Blade for STS Bone Collector (no Tank).
Roll over image to zoom in Click on image to zoom
The McBio Straight Replacement Blade for STS Bone Collector (no Tank) is a metallic dental tool with a threaded end, narrow shaft, and small circular tip. Distinctive green and blue rings accent the shaft. Shown isolated on a white background.A close-up of the McBio Straight Replacement Blade for STS Bone Collector (no Tank), featuring a red ring and blue threaded end, commonly used in autogenous bone harvesting, isolated on a white background.A close-up of a McBio Straight Replacement Blade for STS Bone Collector (no Tank), featuring a threaded end, smooth shaft, and red rubber ring near the middle, isolated on a white background.A close-up of a metal wall anchor with a threaded end, rubber gasket, and flat disc—shown on a white background—built with precision comparable to the McBio Straight Replacement Blade for STS Bone Collector (no Tank).A close-up of the McBio Straight Replacement Blade for STS Bone Collector (no Tank), featuring threaded ends, a green ring at the middle, and a blue ring near the base, isolated on a white background.A close-up of a metal damper rod with a blue threaded end, red rubber ring, and white disc, isolated on white—showcasing precision like the McBio Straight Replacement Blade for STS Bone Collector (no Tank).

Straight Replacement Blade for STS Bone Collector – (no Tank)

McBioSKU: ELI-39760
Blade Diameter: 5mm
Price:
$119.99
Stock:
In stock

Description

Straight Autogenous STS Replacement Blades are precision-engineered refills for the STS bone harvesting system, designed for clinicians who wish to extend instrument life while minimizing replacement costs. This product includes the blade assembly only (no collection tank) and is intended to be installed into an existing Straight STS tank of the same size.

The STS tank and blade assembly can be fully disassembled, allowing the collection tank to be reused on a fresh blade. This blade-only replacement option provides a more economical alternative to replacing the complete tank and blade assembly, while maintaining identical cutting performance.

Key Features

  • Blade-Only Replacement
    Supplied without collection tank; designed for reuse with existing Straight B1 tanks.

  • 360° Cutting Blade
    Razor-sharp circumferential cutting edges ensure efficient, continuous bone harvesting.

  • Economical Refill Option
    Extends the life of the STS system by replacing only the wear component.

  • Premium Materials
    Blade support manufactured from anodized titanium with a cutting blade made from extra-hard, special-grade surgical stainless steel.

  • Reusable & Autoclavable
    Blades can be cleaned and re-sterilized up to 10 cycles without compromising performance.

Available Sizes

Replacement blades must match the original tank diameter. Tanks are size-specific and are not interchangeable across blade sizes.

Blade Diameter Size Label
5 mm Small
6 mm Medium
8 mm XL
9 mm 2XL
10 mm 3XL

Assembly & Compatibility Notes

  • Compatible with Straight STS collection tanks and Straight McBio handles

  • The collection tank will only fit the blade size it was originally supplied with

  • Before reassembly, ensure silicone stops on the blade are intact and correctly positioned

  • Improper seating of silicone stops may affect blade retention and cutting performance

Technical Specifications

  • Geometry: Straight (Anterior)

  • Supplied Components: Blade only (no tank, no handle)

  • Blade Support Material: Anodized titanium

  • Cutting Blade Material: Extra-hard special-grade surgical stainless steel

  • Cutting Action: 360° circumferential blade

  • Sterilization: Autoclavable up to 10 cycles

  • Compatibility: Straight STS tanks and Straight McBio Surgical handles

Clinical & Economic Benefits

  • Maintains full harvesting performance at a lower replacement cost

  • Reduces waste by reusing existing titanium collection tanks

  • Allows predictable maintenance of the STS system without replacing the full assembly
