Description
Jovanovich sinus lift instruments are precision hand instruments designed for the controlled and atraumatic elevation of the Schneiderian membrane during lateral window sinus augmentation procedures. The instruments feature large, curved, blunt working ends that allow gentle separation and elevation of the sinus lining after lateral bone window preparation.
All Jovanovich sinus lift instruments are designed to minimize the risk of membrane perforation by using smooth, dull curette ends that support controlled tactile feedback and predictable membrane handling.
They are commonly used in implant dentistry and oral surgery during maxillary sinus lift procedures requiring careful reflection of the Schneiderian membrane from the surrounding maxillary bone.
Clinical Use
Used following lateral window preparation to:
Separate the Schneiderian membrane from the maxillary sinus wall
Reflect and elevate the sinus membrane without cutting or tearing
Support controlled sinus membrane elevation prior to graft placement
Design Characteristics
Large, curved working ends for enhanced posterior and lateral access
Blunt, non-cutting curette ends to reduce risk of membrane damage
Smooth surfaces to support controlled, atraumatic elevation
Designed for sinus lift and sinus augmentation procedures
Available Instruments

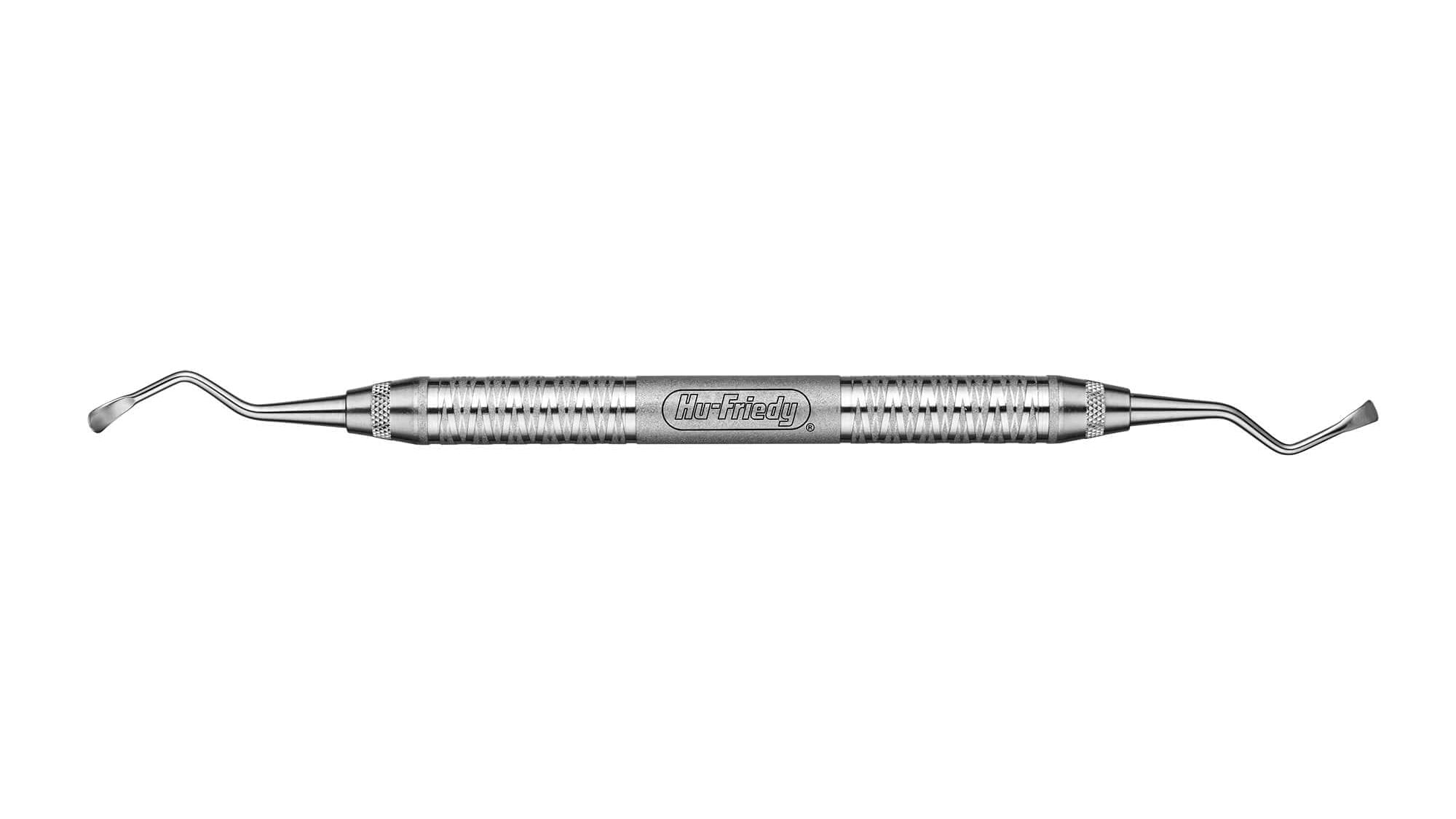

IMPJO76 — Jovanovich Sinus Lift Instrument
Working ends: 3.0 mm / 3.0 mm
Handle: #6
Symmetrical curved ends for controlled membrane elevation in smaller or more confined sinus windows

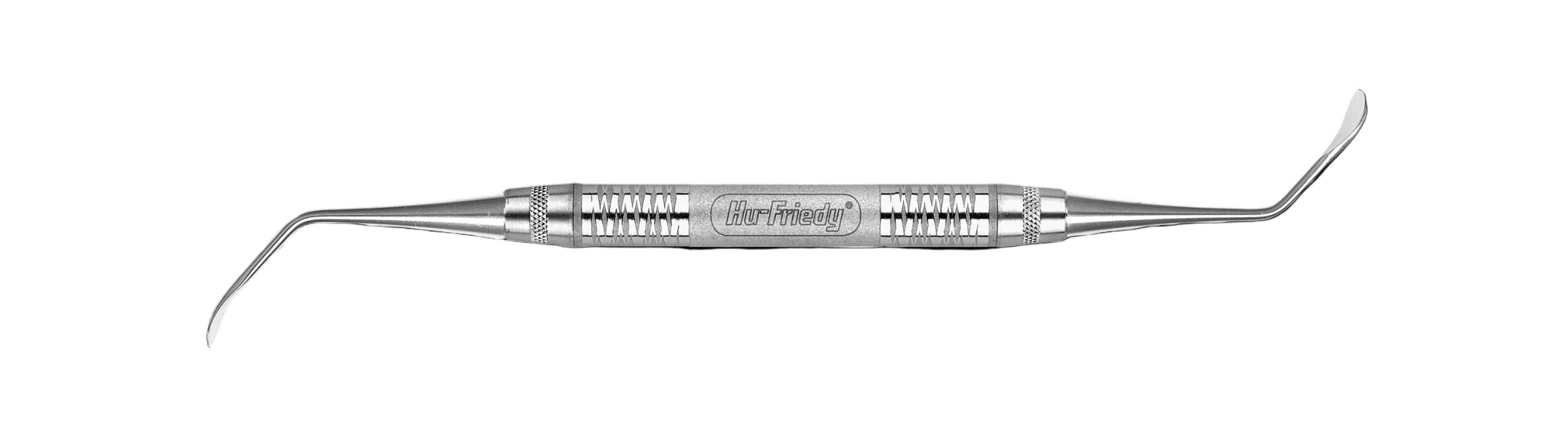

IMPJO66 — Jovanovich Sinus Lift Instrument
Working ends: 4.0 mm / 7.6 mm
Handle: #6
Dual-size working ends support progressive membrane elevation during sinus lift procedures
IMPJO6 — Jovanovich Sinus Lift Instrument
Working ends: 4.0 mm / 7.6 mm
Handle: #522
Same working end geometry as IMPJO66 with an alternate handle style for clinician preference
Typical Procedures
Lateral window sinus lift
Maxillary sinus augmentation
Implant site preparation in the posterior maxilla
