Hu-Friedy Heidbrink Elevators

Hu-Friedy Heidbrink Elevators are straight surgical elevators designed to loosen teeth and root fragments from the periodontal ligament and ease extraction through controlled luxation. This family of elevators is commonly used for upper and lower anterior teeth and roots, where direct access and precise force application are required.

All Heidbrink elevators in this series share a straight working design that allows efficient engagement along the root surface while maintaining tactile control during extraction.

Clinical use

Heidbrink elevators are used early in the extraction sequence to disrupt the periodontal ligament and develop initial mobility before forceps application. Their straight configuration makes them particularly effective for anterior regions and accessible root anatomy.

Common indications include:

• Upper and lower anterior tooth extractions

• Removal of anterior root fragments

• Initial luxation prior to forceps delivery

• Situations where controlled, direct force is preferred

Design overview

The Heidbrink elevator design emphasizes controlled engagement and predictable force transmission. The straight shank and working end allow the clinician to apply apical pressure and gentle levering without excessive rotation, supporting atraumatic extraction principles.

These instruments are manufactured from surgical-grade stainless steel to provide strength, durability, and compatibility with standard sterilization protocols.

Available patterns

The Heidbrink elevator family includes multiple straight patterns to accommodate clinical preference and anatomy:

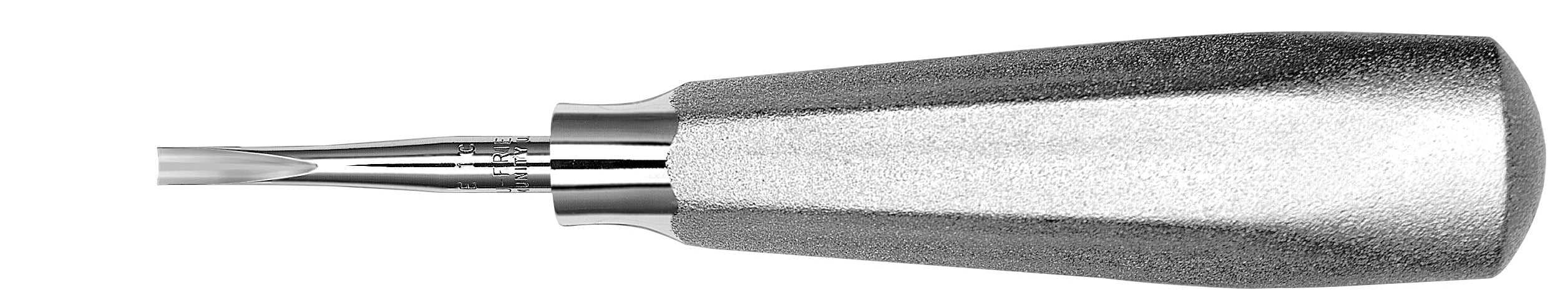

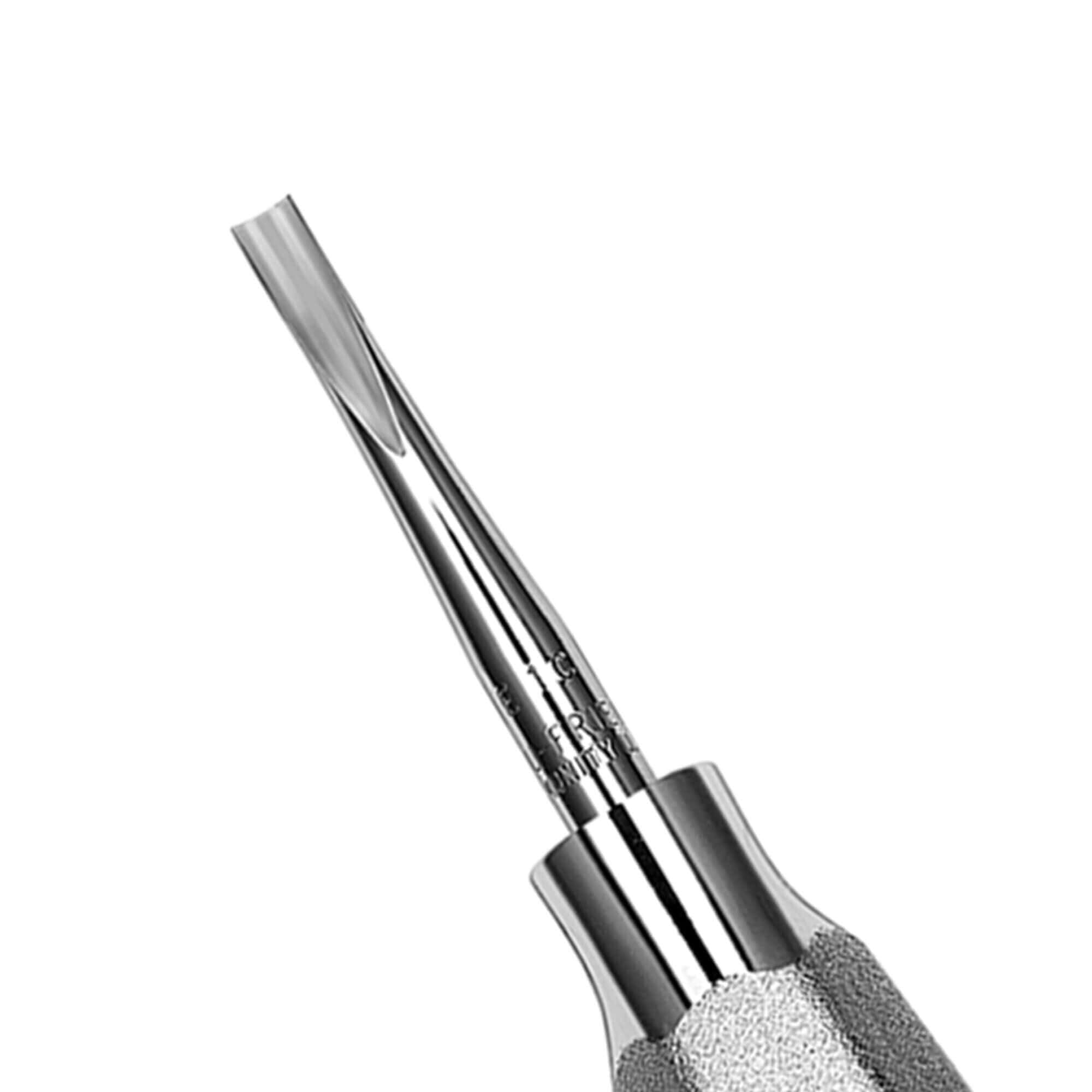

• E1 Heidbrink Elevator (4.3mm width)

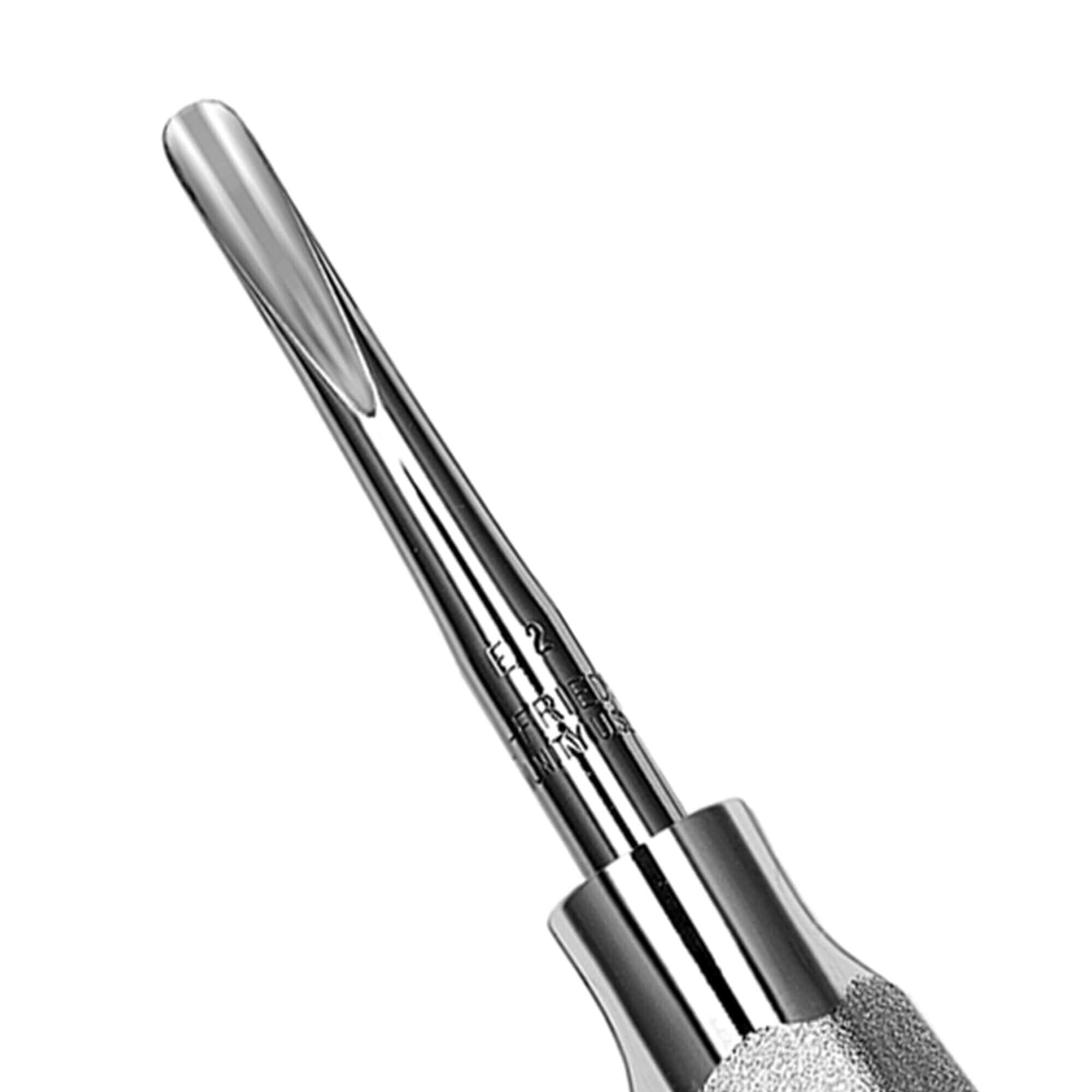

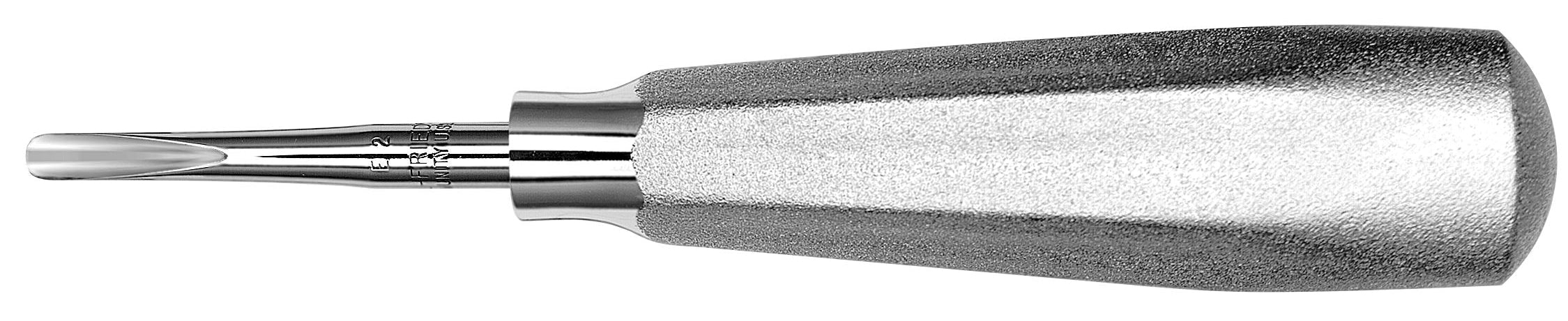

• E2 Heidbrink Elevator

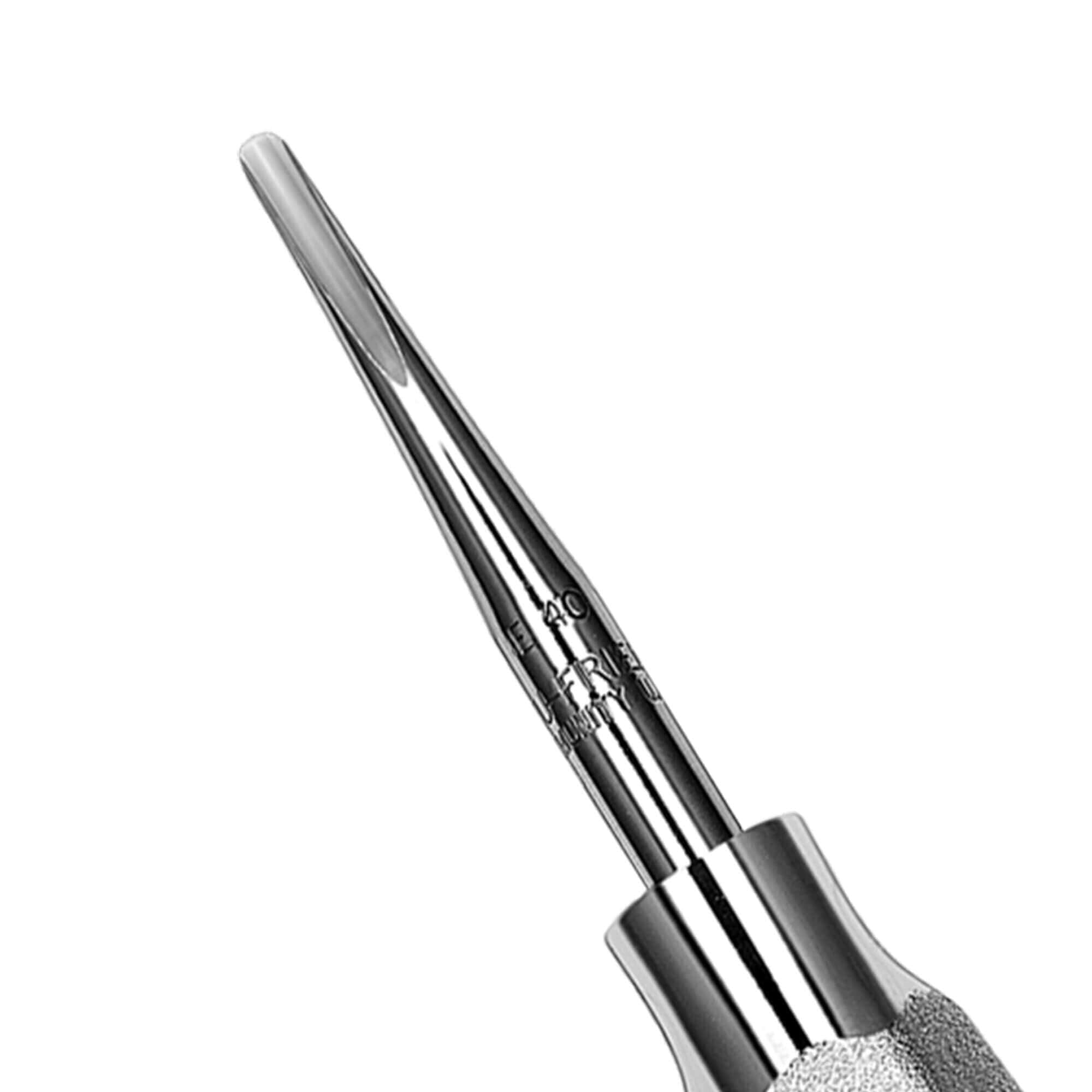

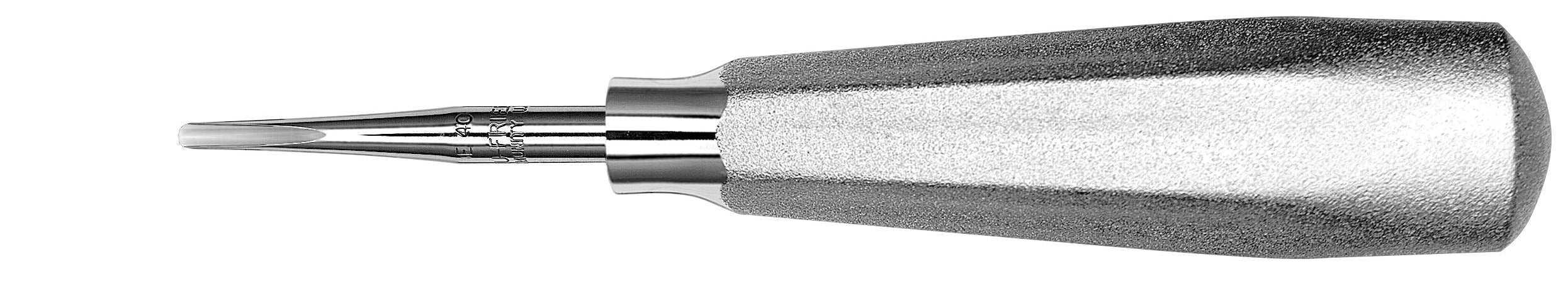

• E40 Heidbrink Elevator

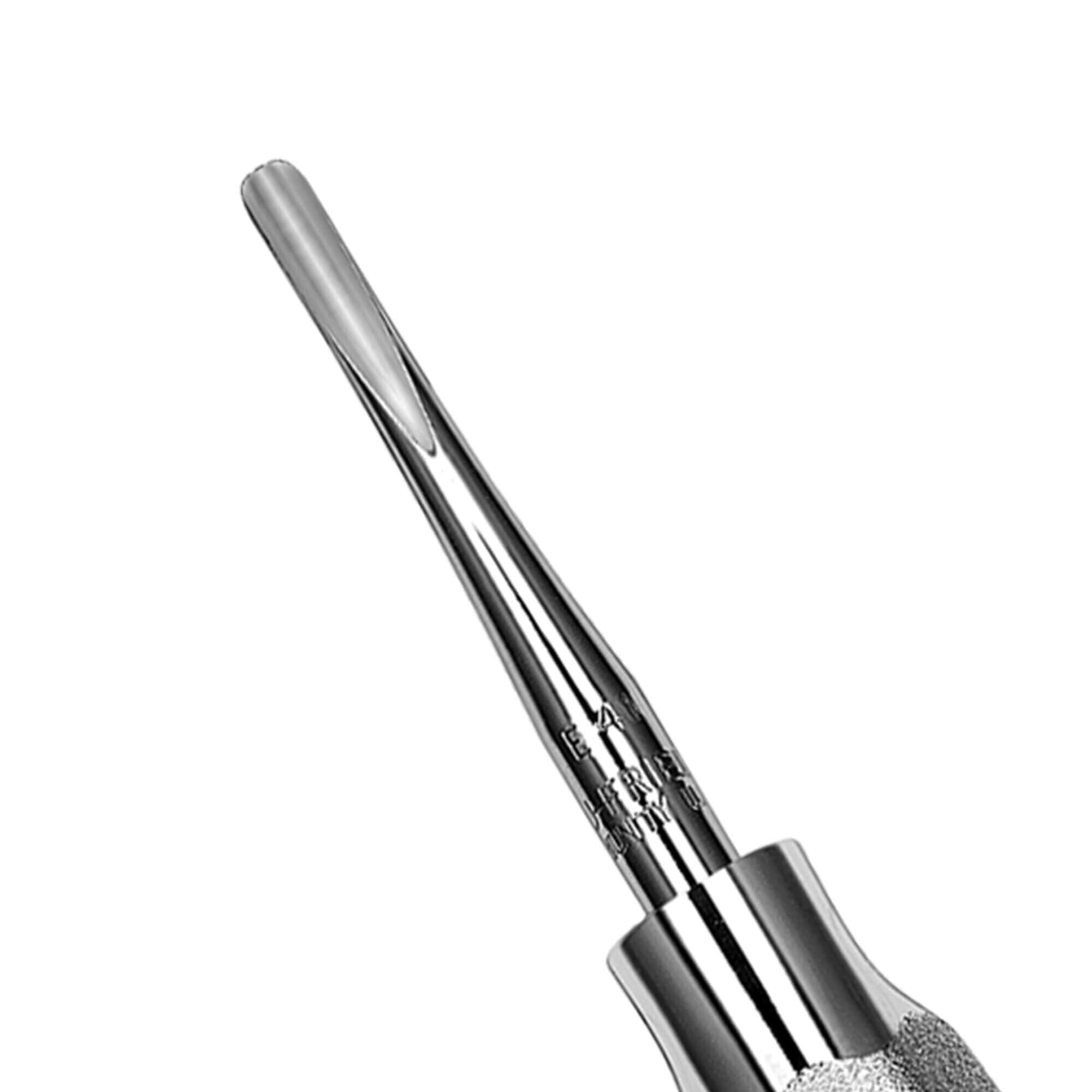

• E41 Heidbrink Elevator

Each pattern follows the same clinical indication, with subtle differences in working-end geometry to support effective anterior luxation.

Armamentarium placement

Heidbrink elevators are standard instruments in:

• General extraction trays

• Anterior extraction setups

• Oral surgery and minor surgical kits

• Emergency root tip removal armamentaria

They are commonly used in combination with luxating elevators, forceps, and curettes as part of a complete extraction workflow.

Recommended pairings

For predictable anterior extractions, Heidbrink elevators are often paired with:

• Periotomes or luxating elevators for focused PDL release

• Anterior forceps for final delivery

• Root tip picks for fragment retrieval

• Curettes and irrigation for socket debridement
