Hu-Friedy Coupland English Gouge Elevators

Hu-Friedy Coupland Gouge Elevators, English pattern, are surgical elevators used to loosen teeth from the periodontal ligament and ease extraction through controlled wedging and lifting action. They share the same clinical indication as standard Coupland gouge elevators but feature English-pattern concave working ends with graduated width options to accommodate different anatomy and resistance.

All instruments are manufactured from surgical-grade stainless steel for durability, strength, and consistent clinical performance.

Clinical use

English-pattern Coupland gouge elevators are used early in the extraction sequence to enter the periodontal space, expand the socket, and develop initial tooth mobility prior to forceps delivery.

Common uses include:

• Initial luxation during routine extractions

• Loosening teeth with broad or resistant root surfaces

• Early socket expansion before forceps application

Design overview

These elevators feature concave, gouge-style working ends that distribute force across the root surface, supporting controlled, non-rotational luxation. The English-pattern geometry allows broad contact while maintaining tactile feedback.

Available patterns and widths

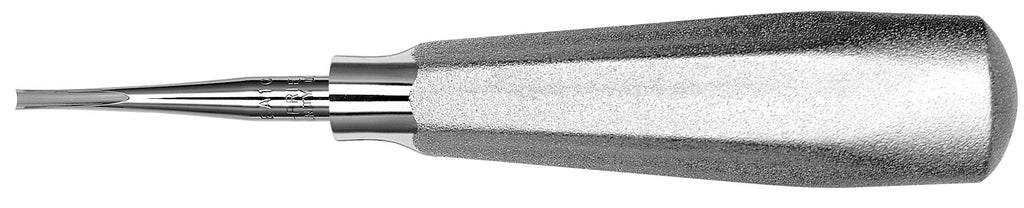

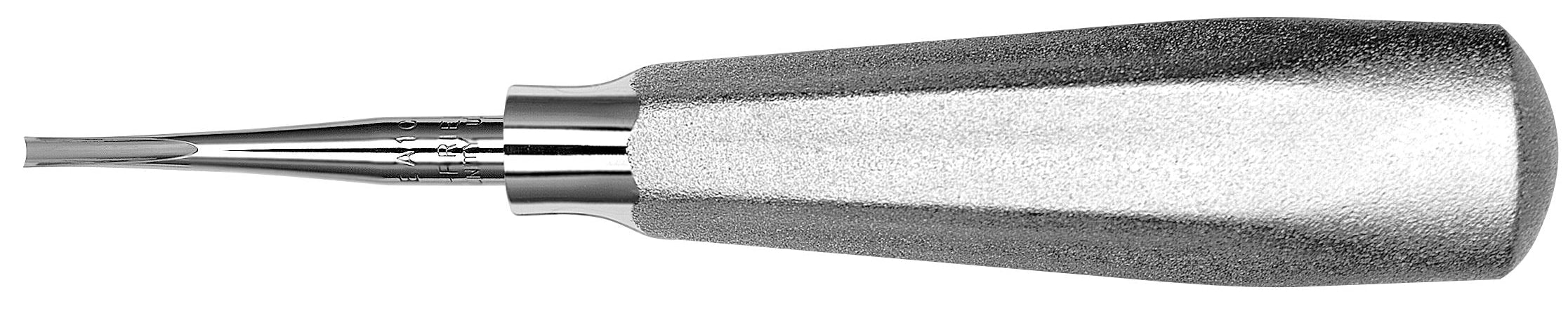

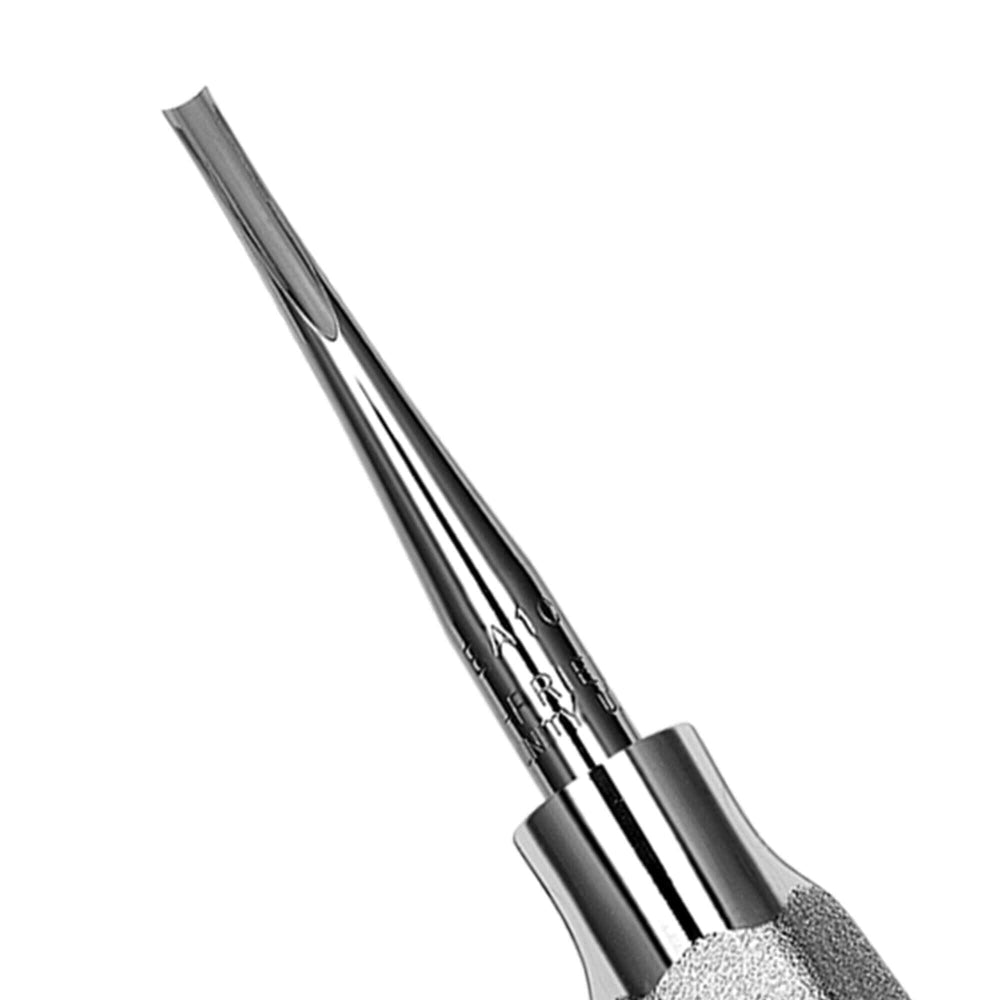

EA1C features the thinnest working end and is suited for initial access, tighter periodontal spaces, and more delicate luxation.

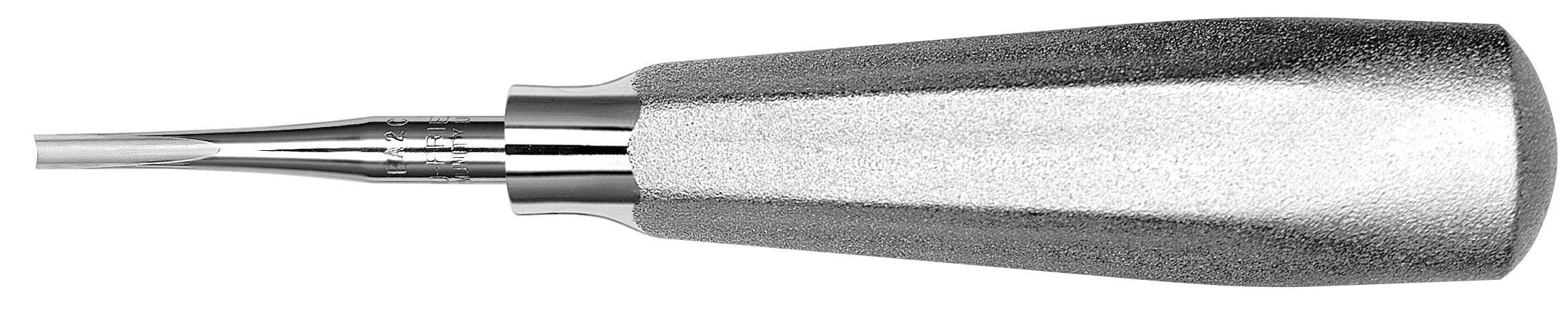

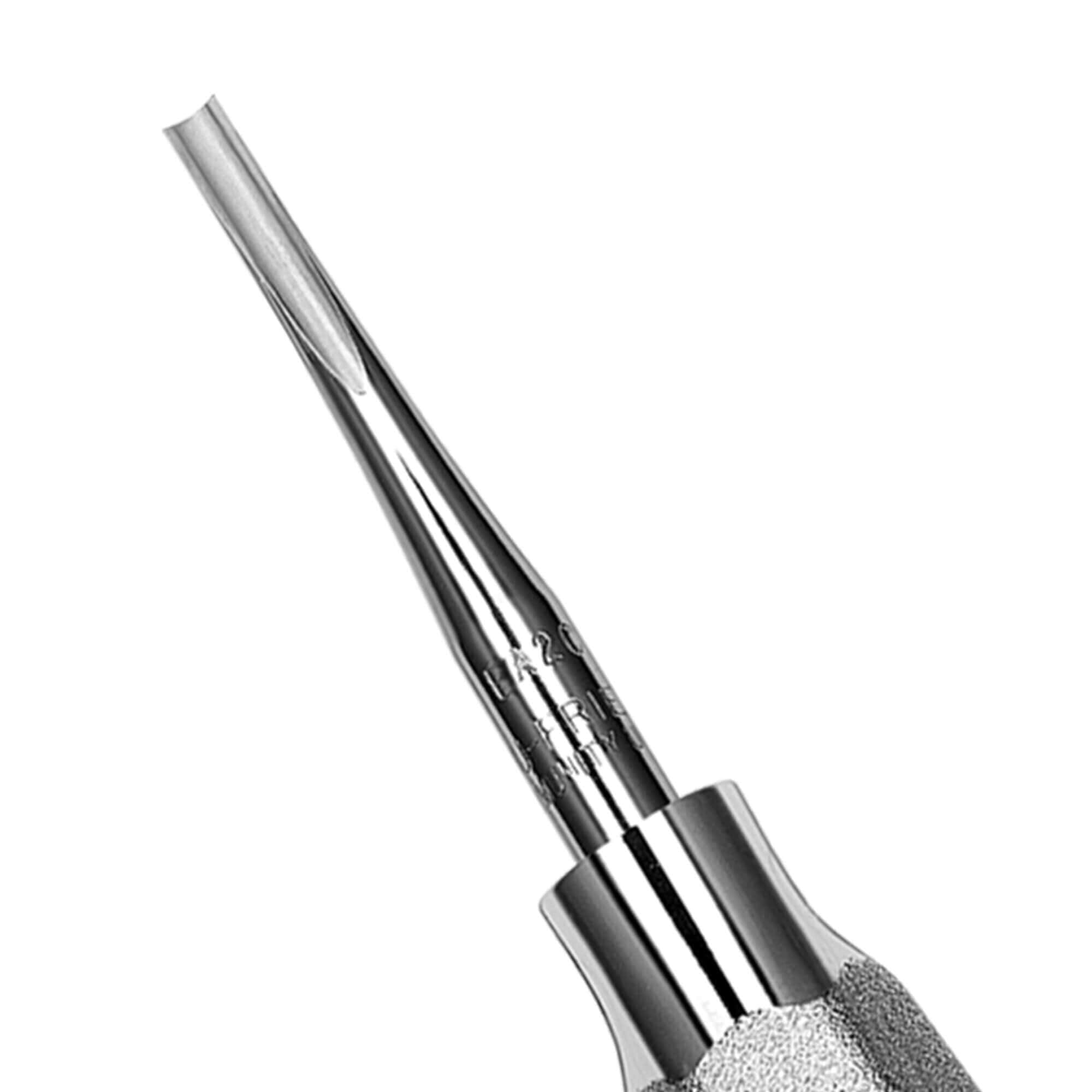

EA2C offers an intermediate width, balancing access and force for general-purpose luxation.

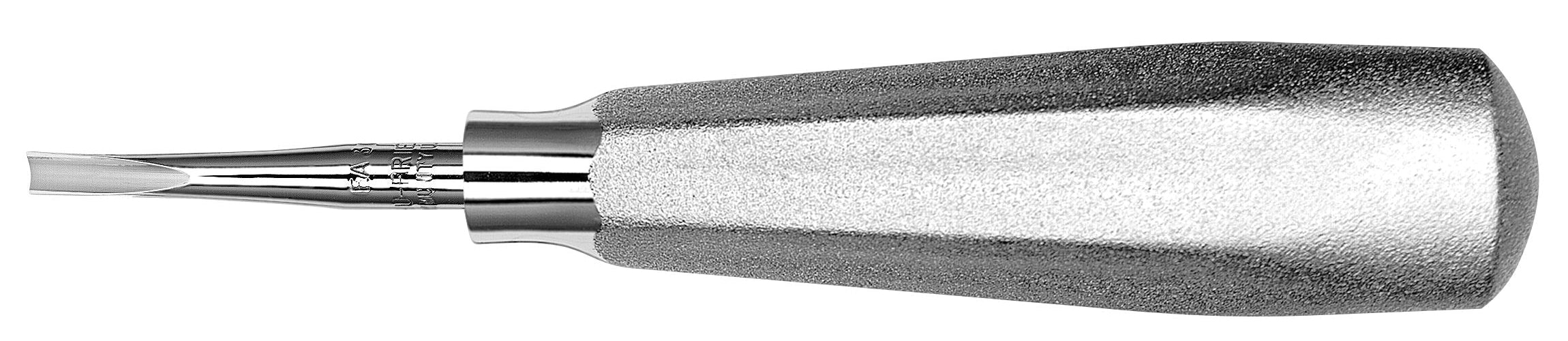

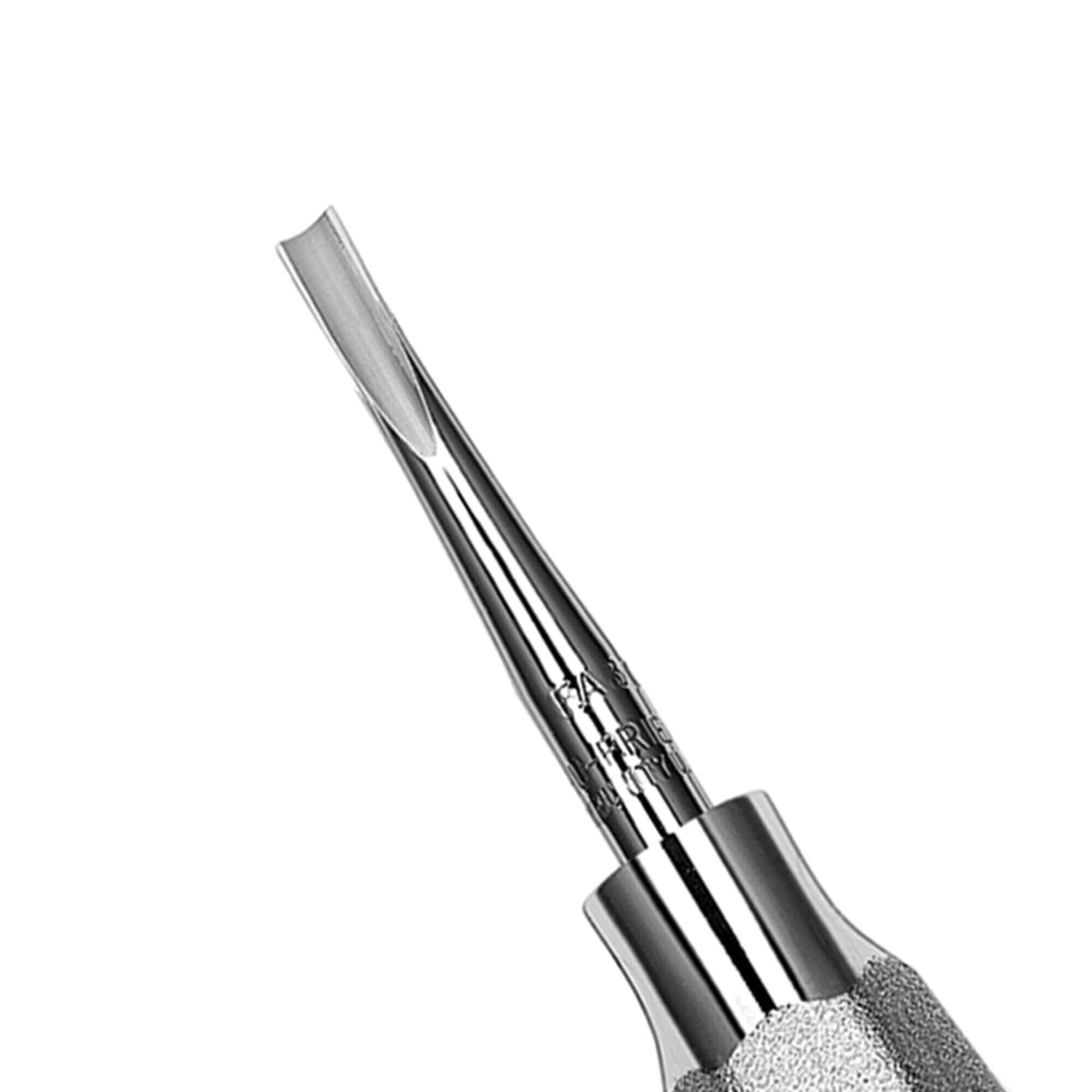

EA3C features the widest working end, providing increased contact area and more assertive engagement for denser bone or more resistant cases.

Using multiple widths allows force to be scaled progressively as mobility increases.

Armamentarium placement

English-pattern Coupland gouge elevators are commonly included in general extraction trays, oral surgery kits, and emergency extraction setups. They are typically followed by luxating elevators, Cryer elevators, or forceps as mobility improves.

Key features

• English-pattern concave gouge-style working ends

• Graduated widths from thin to wide (EA1C to EA3C)

• Surgical-grade stainless steel construction

• Designed to loosen teeth and ease extraction
