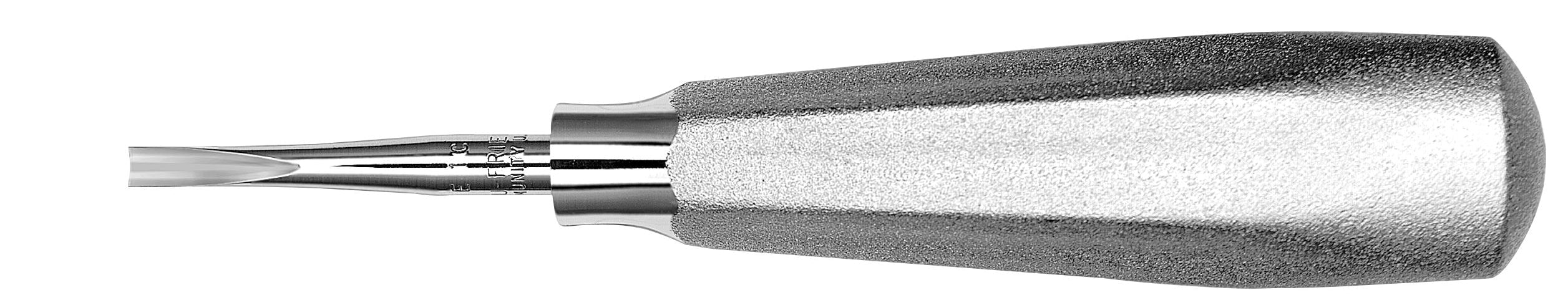

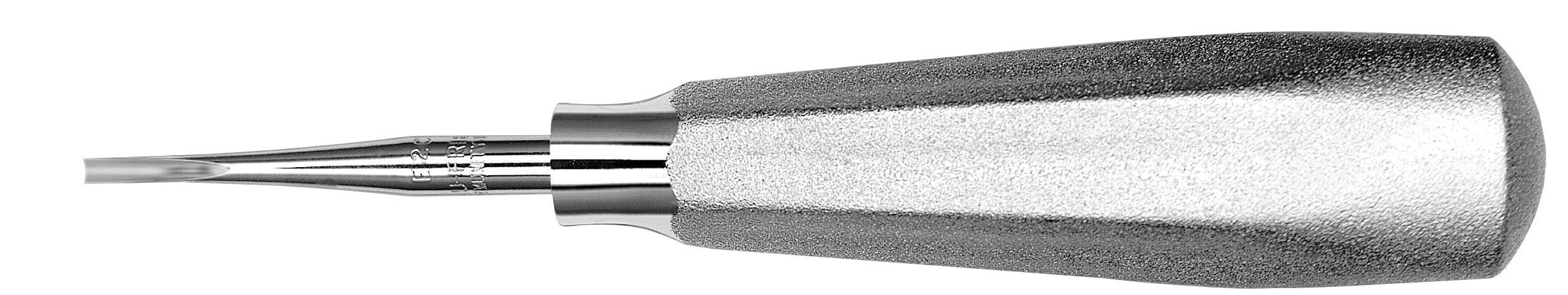

Hu-Friedy Coupland Gouge Elevators

Hu-Friedy Coupland Gouge Elevators are surgical elevators designed to loosen teeth from the periodontal ligament and ease extraction through controlled wedging and lifting action. Featuring broad, flat gouge-style working ends, these instruments are commonly used during early stages of extraction to expand the socket and develop mobility prior to forceps delivery.

The Coupland C-series includes multiple tip geometries and widths to accommodate varying anatomy, bone density, and clinical preference. All instruments are manufactured from surgical-grade stainless steel for strength, durability, and reliable performance.

Clinical purpose and use

Coupland gouge elevators are used to enter the periodontal space and apply controlled pressure to loosen the tooth from the socket. Unlike Cryer elevators, which rely on rotational leverage, Couplands function primarily as wedging and lifting instruments, making them useful for developing general mobility across a broad root surface.

Common clinical indications include:

• Initial tooth luxation during routine extractions

• Loosening teeth with broad root surfaces

• Early socket expansion before forceps application

• Extractions where controlled, non-rotational force is preferred

Design and construction

Hu-Friedy Coupland Gouge Elevators are manufactured from surgical-grade stainless steel to ensure strength, corrosion resistance, and compatibility with standard sterilization protocols. The flat, gouge-style working ends distribute force across the root surface, while the rigid shank provides predictable control.

Key design attributes include:

• Flat, gouge-style working ends for wedging action

• Rigid shank for controlled force application

• Surgical-grade stainless steel construction

• Designed to complement forceps-based extraction workflows

Available patterns and tip geometries

The Coupland C-series includes the following patterns:

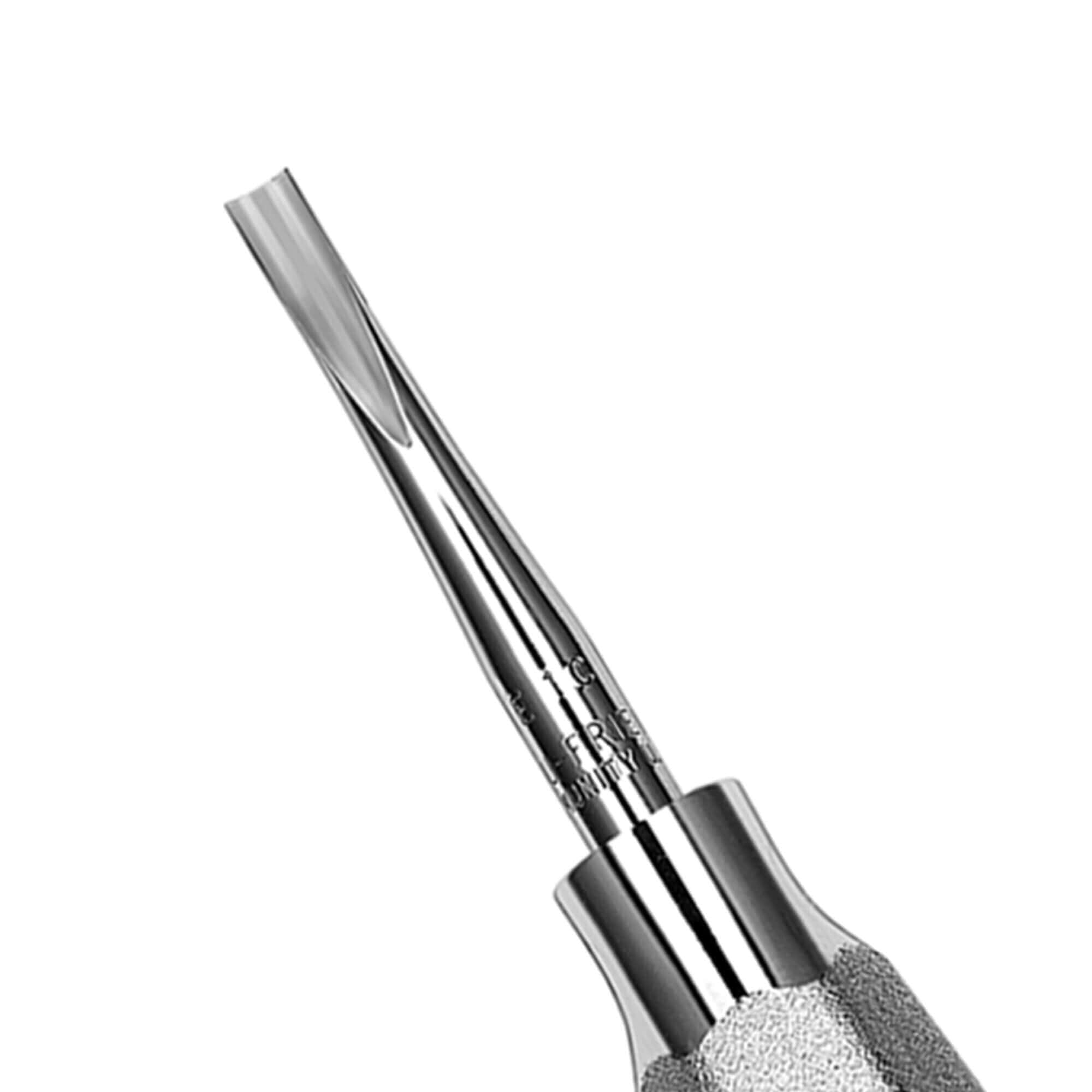

• E1C Coupland Gouge Elevator
  Features a 4.3 mm wide tip designed for general luxation and socket expansion in routine extractions.

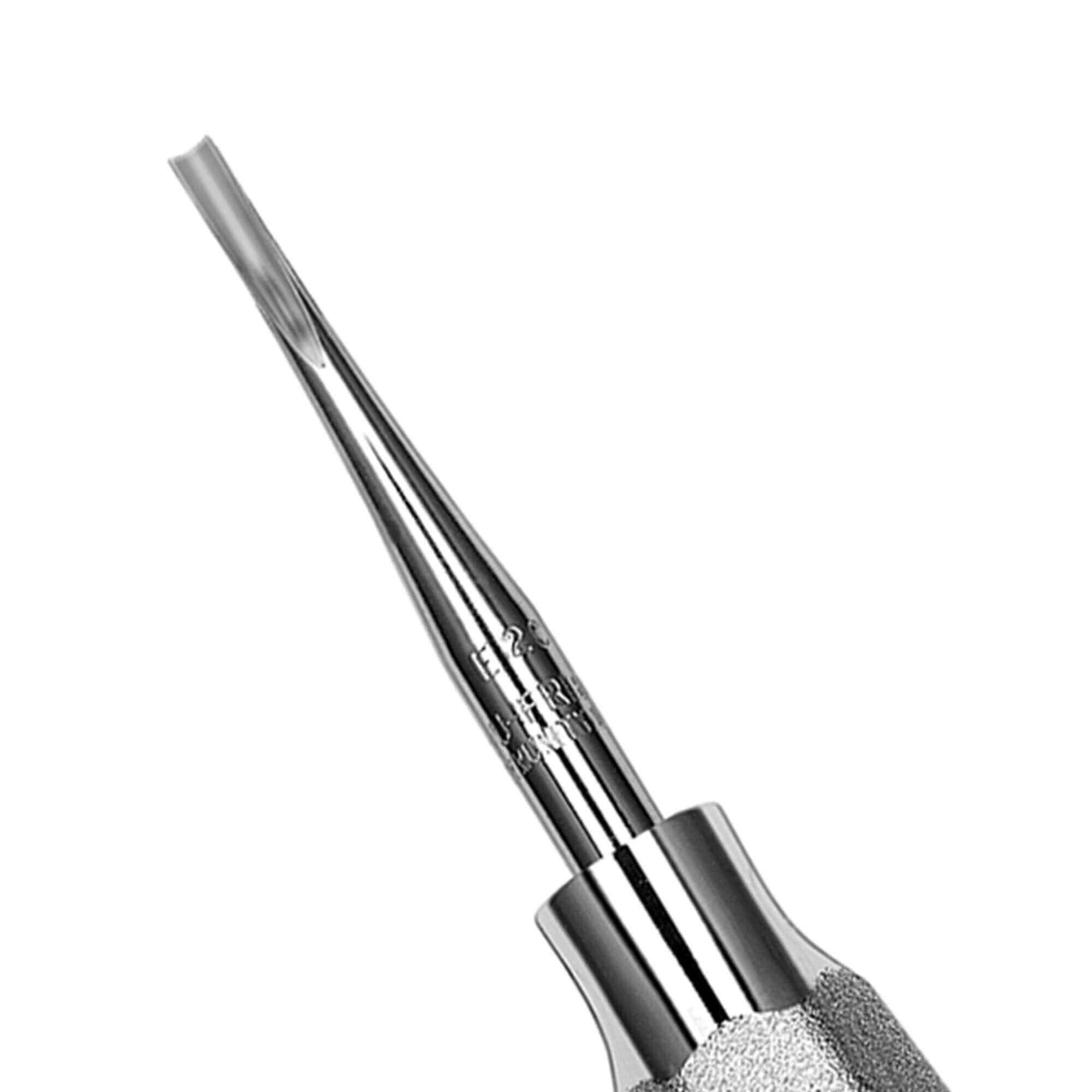

• E2C Coupland Gouge Elevator
  Similar in design to the E1C but with a narrower 3.8 mm wide tip, offering improved access in tighter anatomy or narrower periodontal spaces.

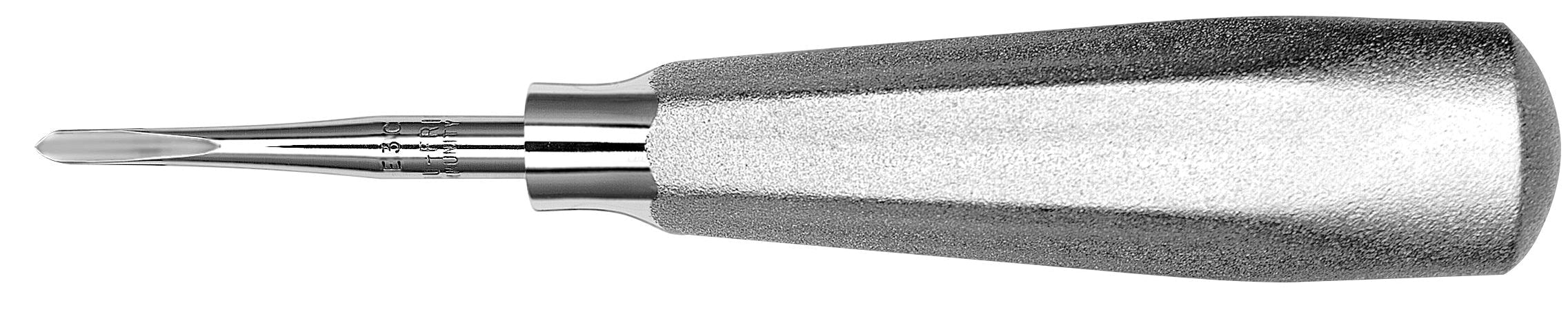

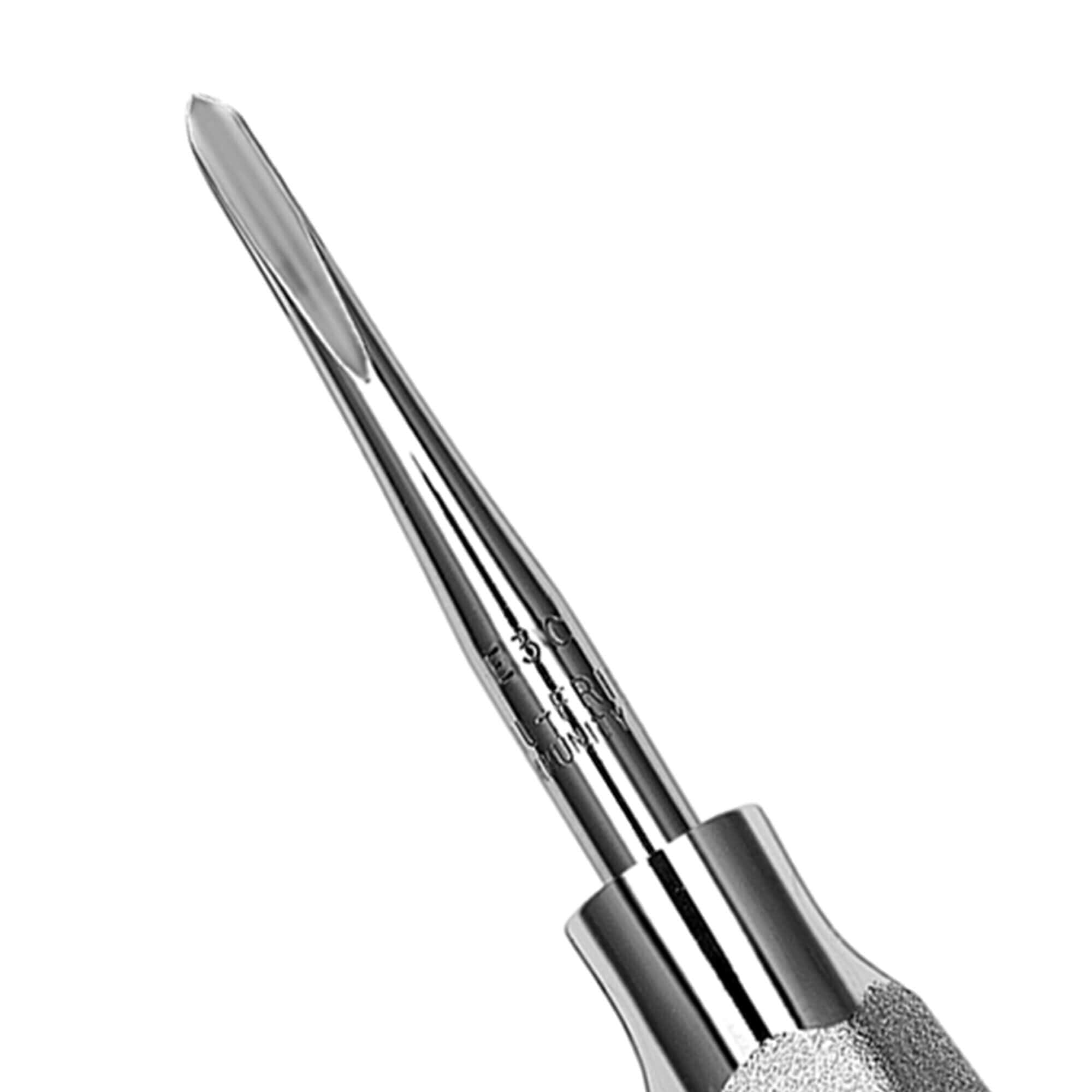

• E3C Coupland Gouge Elevator
  Features a 4.0 mm wide tip with a narrow protrusion at the working end, providing more aggressive engagement for dense bone or cases requiring increased luxation force.

Maintaining multiple Coupland patterns allows the clinician to scale force and engagement based on anatomy and resistance encountered.

Armamentarium placement

Hu-Friedy Coupland Gouge Elevators are standard instruments in:

• General extraction trays

• Oral surgery and minor surgical kits

• Emergency extraction setups

• Teaching and training armamentaria for foundational extraction techniques

They are commonly used early in the extraction sequence, followed by luxating elevators, Cryer elevators, or forceps as mobility improves.

Recommended pairings

For a predictable extraction workflow, Coupland gouge elevators are commonly paired with:

• Luxating elevators or periotomes for focused PDL release

• Cryer elevators when rotational leverage is required

• Posterior or anterior forceps for final delivery

• Curettes and irrigation for socket debridement

Key features

• Gouge-style working ends for controlled wedging and lifting

• Multiple tip widths and geometries for varied anatomy

• Surgical-grade stainless steel construction

• Designed to loosen teeth and ease extraction

• Suitable for routine and surgical extraction workflows
