Description

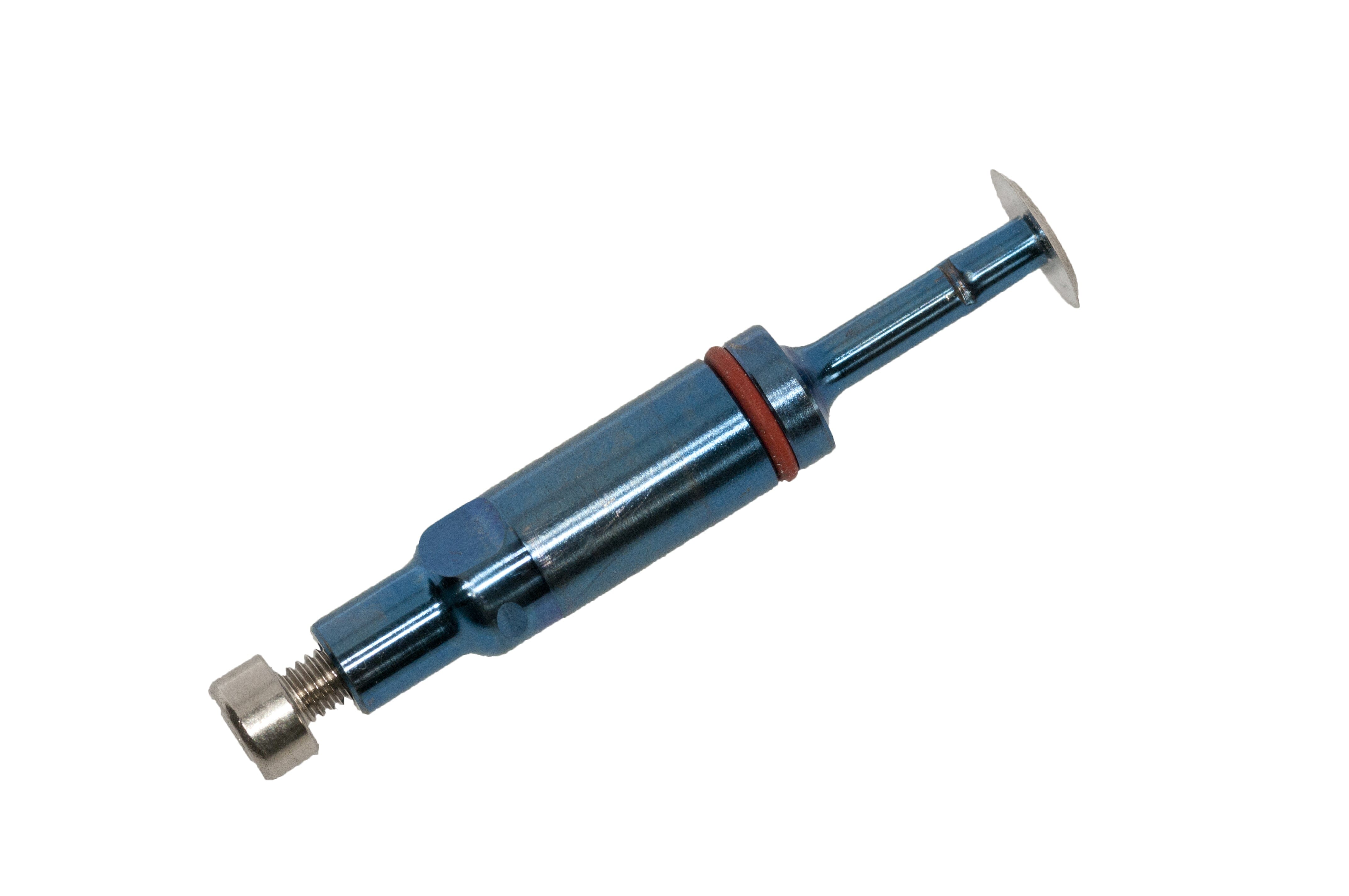

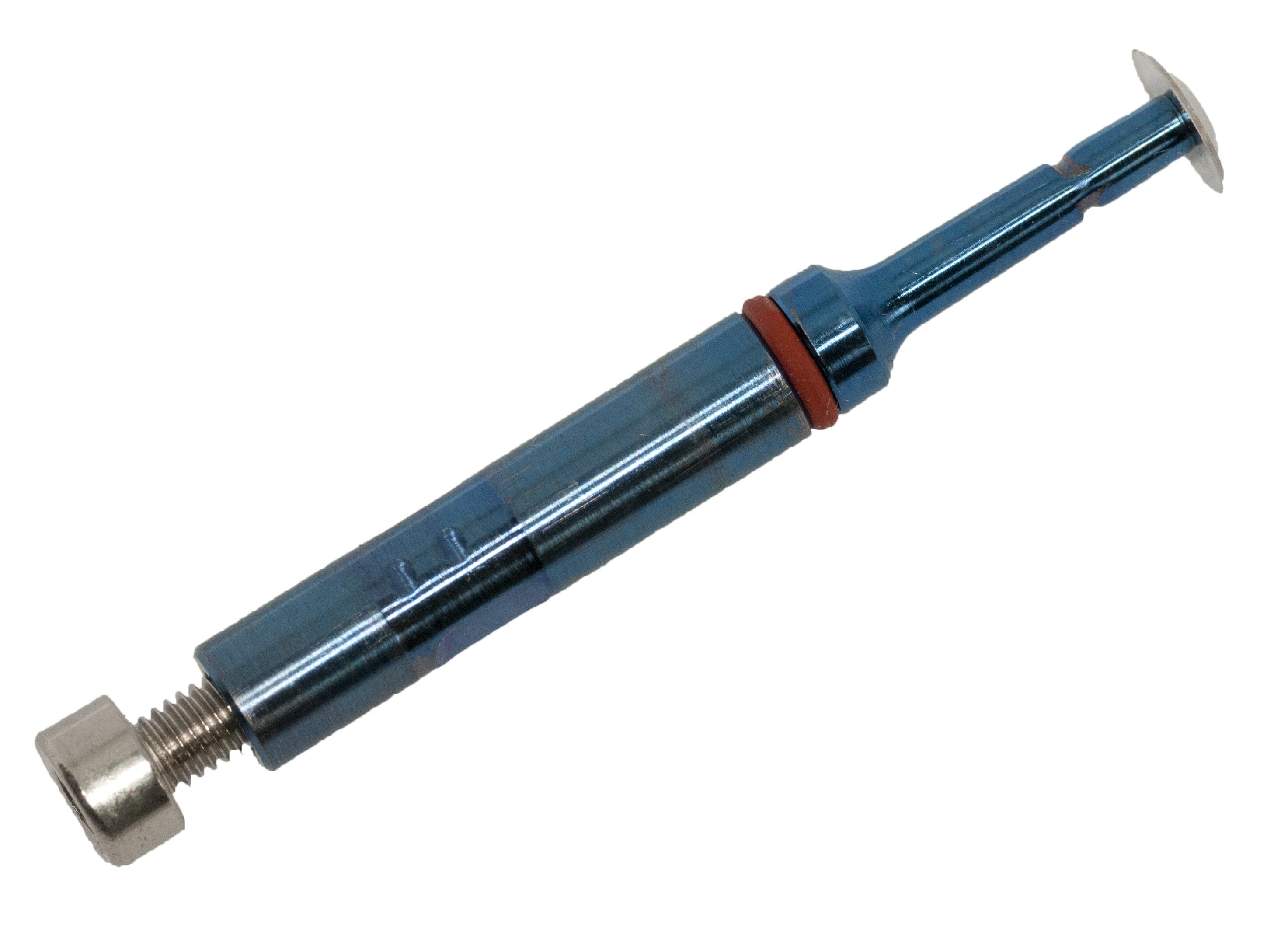

Angled Autogenous B1 Replacement Blades are precision-engineered, blade-only refills for the B1 bone harvesting system, designed to restore cutting performance at a lower cost than replacing the full tank and blade assembly. This product includes the blade assembly only (no collection tank) and is intended for use with existing Angled B1 collection tanks of the same diameter.
The B1 tank and blade assembly can be disassembled, allowing the collection tank to be reused on a fresh blade. This blade-only option delivers a more economical path to a sharp, efficient bone collector while maintaining identical harvesting performance.
Key Features
-
Blade-Only Replacement
Supplied without collection tank; reuse your existing Angled B1 tank. -
360° Cutting Blade
Razor-sharp circumferential cutting edges enable efficient, continuous bone harvesting. -
Economical Refill Option
Replaces only the wear component to reduce replacement costs. -
Premium Materials
Blade support manufactured from anodized titanium with a cutting blade made from extra-hard, special-grade surgical stainless steel. -
Reusable & Autoclavable
Blades can be cleaned and re-sterilized up to 10 cycles without compromising performance.
Available Sizes
Replacement blades must match the original tank diameter. Tanks are size-specific and are not interchangeable across blade sizes.
| Blade Diameter | Size Label |
|---|---|
| 6 mm | Medium |
| 8 mm | XL |
| 9 mm | 2XL |
| 10 mm | 3XL |
Assembly & Compatibility Notes
- Compatible with Angled B1 collection tanks and Angled B1 handles
- The collection tank will only fit the blade size it was originally supplied with
- Ensure silicone stops on the blade are intact and correctly positioned before reassembly
- Proper assembly is required for secure retention and optimal cutting performance
Technical Specifications
- Geometry: Angled (Posterior)
- Supplied Components: Blade only (no tank, no handle)
- Blade Support Material: Anodized titanium
- Cutting Blade Material: Extra-hard special-grade surgical stainless steel
- Cutting Action: 360° circumferential blade
- Sterilization: Autoclavable up to 10 cycles
- Compatibility: Angled B1 tanks and Angled B1 handles
Clinical & Economic Benefits
- Restores full harvesting performance at a lower replacement cost
- Reduces waste by reusing existing titanium collection tanks
- Predictable maintenance of the B1 system without replacing the full assembly
